| Prod Model: |
S-15 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Current: |
Rated Output Current:3A 1.3A 0.7A |
| OEM: |
Accepted |
| Warranty Time: |
18 Months |
| Input Volt: |
5V/12V/24V/48V |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CE |
| Brand: |
Jyins |
Product Description

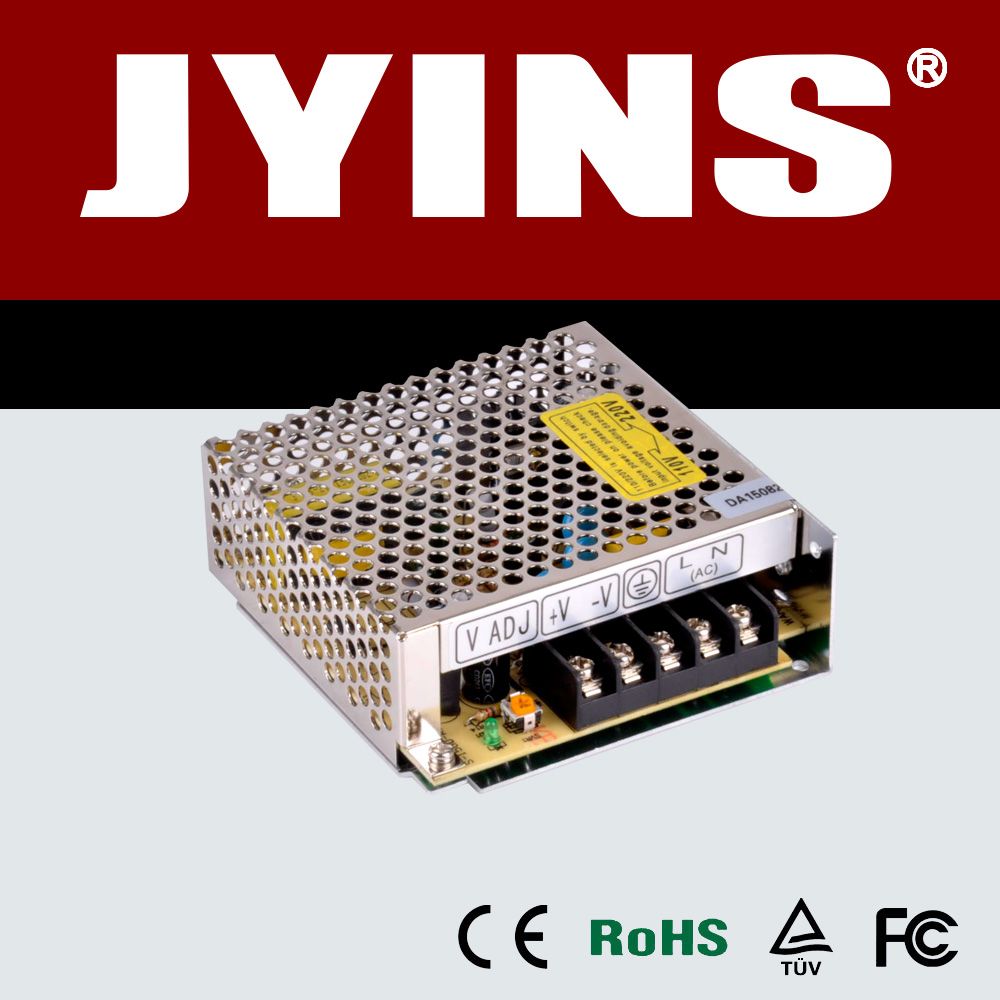

12v single output DC switching power supply (S-15 Series )
Packaging & Delivery
Packaging Details: Export type carton packing
Delivery Detail: According to your quantity and your requirement
Specifications
Low price and high reliability,
With CE certificate,
Already exported to Czech, Mexico, Turkey etc.
High cost performance.
12v single output DC switching power supply (S-15 Series )
Low price and high reliability105° C output capacitorAC input power suitable for the worldHight efficiency and low operation temperatureSoft-start current can reduce the AC input impact effecticlyWith Short-circuit and owwerload protectionCompact size, light weight100% full-load burning testInstalled with EMI filter, minimum wave.
Note: 1.
The testing condition for the parameter above is: 230VAC input, rated load, 25° C 70%Rh, Humidity
2. Error, include the setting error, line stability and load stability. (Note: 5)
3. Wave test: Adopting"A12"double wire for 20MHz, and 0.1uF&uF capacitor short-circuit for interrupting
4. Inlet voltage stability test: When is over load, the lowest voltage of inlet is representative to the highest voltage.
5. Load stability test: The load is from 0% to 100%, others 60%.
6. C2, 3, 11must be knocked down.
Model /Specification |
S-15-5 |
S-15-12 |
S-15-24 |
DC output voltage |
5V |
12V |
24V |
Output voltage error (Note2) |
±2% |
±1% |
±1% |
Rated output current |
3A |
1.3A |
0.7A |
Output current rage |
0-3A |
0-1.3A |
0-0.7A |
Wave and noise(Note3) |
50mVp-p |
50mVp-p |
100mVp-p |
Inlet stability(Note4) |
±0.5% |
±0.5% |
±0.5% |
Load stability(Note5) |
±1% |
±0.5% |
±0.5% |
DC output power |
15W |
15.6W |
16.8W |
Efficiency |
65% |
68% |
72% |
Adjustable range for DC voltage |
±10,-5% |
±10% |
±10% |
AC input voltage range |
85~132VAC/170~264VACselected by switch |
Input current |
0.5A/115V 0.25A/230V |
AC impulse current |
Cold-start current 15A/115V 30A/230V |
Leakage current |
<0.5mA/240VAC |
Overload protection |
105%~150%Type: current limiting ;Reset: auto recovery |
Over-voltage protection |
^^ |
High-temperature protection |
^^ |
Temperature coefficient |
±0.02%°C(0~50°C) |
Setup rise hold up time |
200ms,100ms,30ms |
Vibration |
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
Withstand voltage |
Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC |
Isolation resistance |
Input and output interval,Input and enclosure,Output and enclosure:0500VAC/100M Ohms |
Working temperature and humidity |
-10°C~+60°C,20%~90%RH |
Store temperature and humidity |
-20°C~+85°C,10%~95RH |
Overall dimension |
99*97*35mm |
Weight |
0.3Kgs |
Safety standards |
Meet UL1012 |
EMC standards |
^^ |
