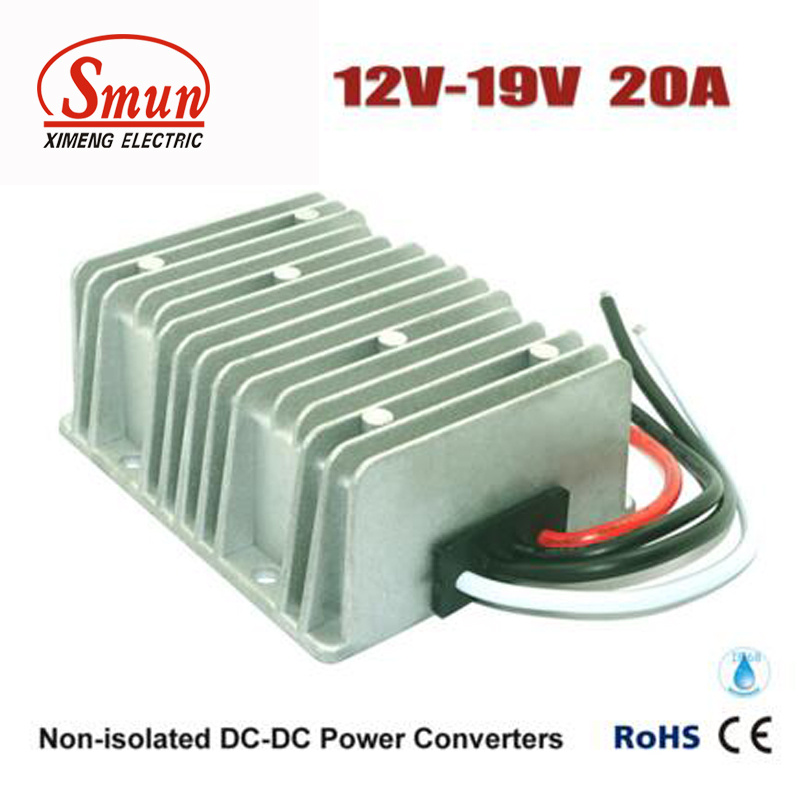

12V to 19V 20A DC-DC Converter Step up Voltage Regulator

12V to 19V 20A DC-DC Converter Step up Voltage Regulator
Price: US $ 19-25/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-380(12)-19
Rated Power: 380W
Input Voltage Range: 9-18V DC
Output Voltage: 19VDC
Output Current: 20A
Size: 100*80*39mm
Waterproof IP: IP68
Efficiency: up to 94%
Weight: 460g
Working Temperature: -40°c ~ +80°c
Short-Circuit Protection: No
Output Type: Single
Warranty: 1 Year
Output Power: 301 - 400W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 12VDC
Brand: Smun

Product Description

Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-19Vdc
4. Industry grade DC12V to DC19V step-up converter, high efficiency up to 95%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and so on. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:
ModelSDS-380(12)-19
Input rated voltage12V DC
Input voltage range10-19V DC
Efficiency96.5% (half load), 95% (full load)
Output voltage19V DC
Output current20 Amps
Output rated power380 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (Full load test)< 150mV
No-load current50 ~ 60mA
Working temperature-40°c ~ +80°c
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Machine size100*80*39mm
Package size121*87*42mm
N. Weight460g
G. Weight475g
Cooling wayFree air convection
OtherCarton packaging
