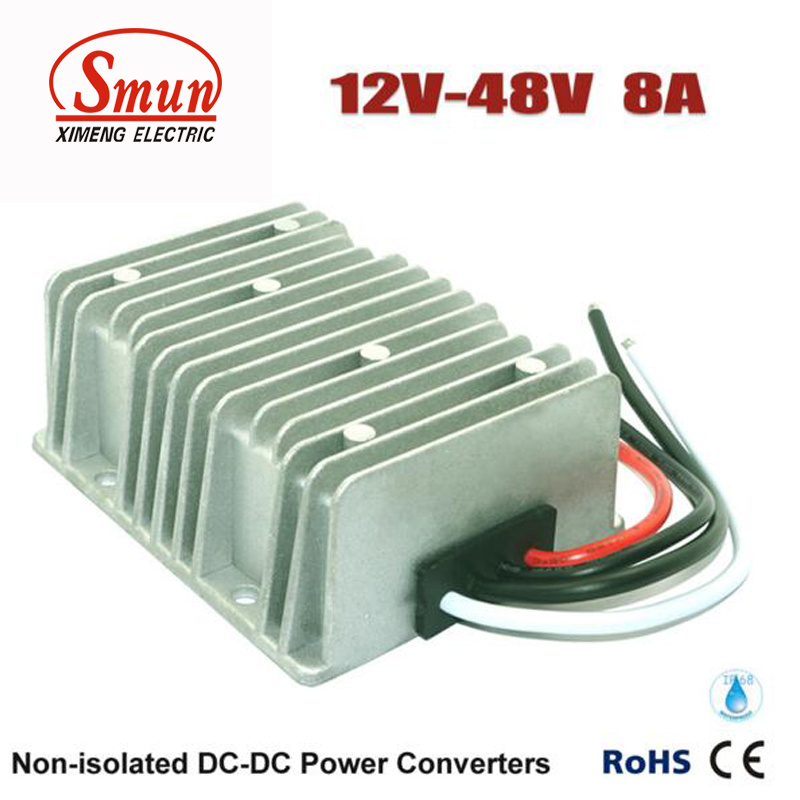

12V to 48V 8A 384W Step up Boost DC-DC Converter

12V to 48V 8A 384W Step up Boost DC-DC Converter
Price: US $ 23-30/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-384(12)-48
Rated Power: 384W
Input Voltage Range: 9-18V DC
Output Voltage: 48VDC
Output Current: 8A
Size: 100*80*39mm
Waterproof IP: IP68
Efficiency: up to 96%
Weight: 470g
Working Temperature: -40°c ~ +80°c
Short-Circuit Protection: No
Output Type: Single
Warranty: 1 Year
Output Power: 301 - 400W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 12VDC
Brand: Smun

Product Description

Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-25Vdc
4. Industry grade DC12V to DC48V step-up converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and so on. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:
ModelSDS-384(12)-48
Input rated voltage12V DC
Input voltage range10-25V DC
Efficiency97% (half load), 96% (full load)
Output voltage48V DC
Output current8 Amps
Output rated power384 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (Full load test)< 180mV
No-load current<30mA
Working temperature-40°c ~ +80°c
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Machine size100*80*39mm
Package size126*93*46mm
N. Weight470g
G. Weight475g
Cooling wayFree air convection
OtherCarton packaging
