12V55ah Front Terminal Fr Battery for Backup System

Name: 12V55ah Front Terminal Fr Battery for Backup System
Brand: all-electronics-online.com
SKU: 729351332
Availability: InStock
Rating: 4.5 (51 reviews)

Price:	US $ 68.52-69.52/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V55ah
Operating Temperature:	-20c~50c
Design Time:	10-12 Years
Separator:	AGM
Charge Voltage (Cycle):	2.40~2.50V
Container Material:	ABS(UL94-Hb) *Flammability
Material Lead:	#1 Lead Top Quality in China
Terminal:	Nb or B
Color:	Grey or Black
Self Discharge:	Less Than 3% Per Month
Certificate:	ISO, UL, Ce
Type:	Lead-Acid Batteries
Usage:	Electric Bicycle
Nominal Voltage:	12V
Discharge Rate:	Low Discharge Rate
Shape:	Square Battery
Rechargeable:	Chargeable

Product Description

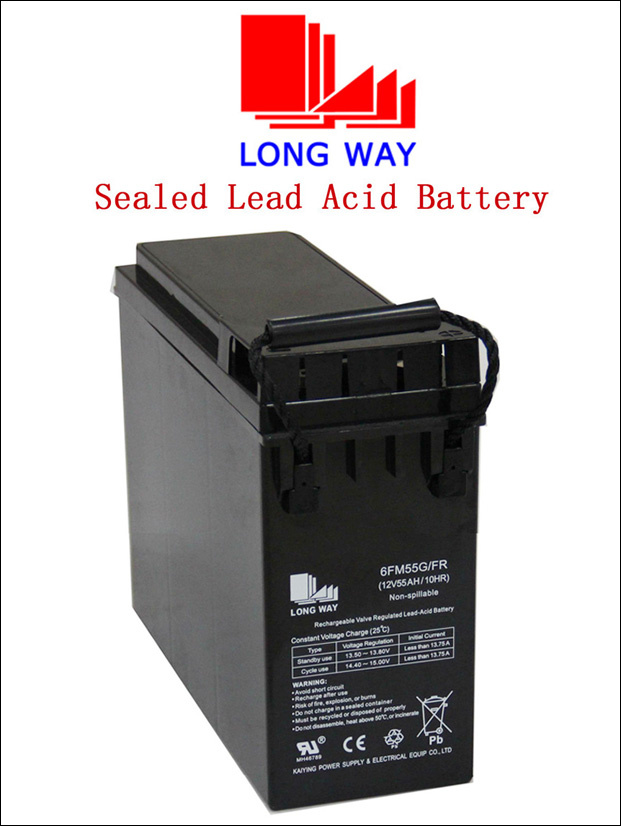

12V55ah front terminal FR battery for Backup System

LONGWAY® FR battery is a front terminal battery. 6FM55FR battery is a front terminal
battery up to 12 years expected life for Telecom use . As with all LONGWAY® batteries, all
are rechargeable highly efficient, leak proof and maintenance free.

Normal Voltage	12V
Capacity	55Ah@10Hr-rate to 1.75V per cell@25ºC
Weight	Approx. (18±3%)kg(2.21bs)
Maximum Discharge Current	550A(5sec)
Internal Resistance	Approx. 6.4mΩ full charged @25ºC
Operating Temperature Range	Discharge: -20ºC~60ºC Charge: 0ºC~50ºC Storage: -20ºC~60ºC
Nominal Operating Temperature Range	25ºC±3ºC
Float Charging Voltage	13.7~13.9VDC/unitAverage @25ºC
Maximum Charging Current	13.75A
Equalization and Cycle Service	14.4V~15.0VDC/unit Average @ 25ºC
Self Discharge	LONGWAY Valve Regulated Lead Acid (VRLA) batteries can be stored for more than 6 months at 25ºC. Self-discharge ratio less than 3% per month at 25ºC. Please charge batteries before using.
Terminal	Terminal F10
Container Material	ABS(UL94-HB) *Flammability resistance of (UL94-V0) can be available upon request
Dimensions	L291W106H223(TH230)mm

LONGWAY battery used for AGM VRLA/SLA maintenance-free battery.
6V - 1.3Ah to 12Ah used for emergency lighting and alarm lighting and sound application.
12V - 0.8Ah to 250Ah used for power storage and backup for standby power & deep cycle use.
2V - 50Ah to 3000Ah used for solar power systems and telecommunication are using all self-made high quality and thick deep cycle plates.

Gel Battery
LONGWAY gel series battery is manufactured silica gel to immobilize the electrolyte inside the battery. The proven silica gel technology improves battery cycle life and performance at cold ambient temperatures. The deep discharge cycles is increased by 30% as compared with the AGM battery.

General Features
Environmentally friendly
Longer Service Life
High reliability and quality
High power density
Excellent recovery from Deep Discharge
Living up to Prevailing Standards
Non-sensitive-to Occasional deep discharges
International leading technology

Applications
Solar and wind systems
Cable TV
Telecommunications
Wheelchair
Marine equipment
Military equipment
Emergency lighting
Power plants
Medical devices
Golf cart

If get interest, just contact me freely.

12V55ah front terminal FR battery for Backup System

Kaiying Power Supply & Electrical Equip Co., Ltd., established in 2001, is a professional valve regulated sealed lead acid battery manufacturer in China. We have a lot of experience in producing high quality products. There is a group of engineers to develop batteries as our clients required.

As the environmental readjusted, Zhangshan Long Way Battery Manufacturing Co., Ltd couldn't produce SLA batteries anymore. The technology and IQC management of Zhangshan Long Way Battery Manufacturing Co., Ltd which had merged with KAIYING GROUP, the Logo LONGWAY is also transferred to the KAIYING GROUP.

Kaiying Power Supply & Electrical Equip Co., Ltd., with a 10, 000 M² Factory space, the company has over 1000 employees and advanced development equipment and comprehensive test facilities. Attaching great importance to quality, our management comply with ISO9001-2000 standard. Our batteries have UL and CE approvals.

During the past several years, the company has gained a very high reputation in the industry with excellent development, production, sales capability and premium quality. So, we got very good market share both in the domestic and foreign markets in the past. OEM orders acceptable.
