Zhejiang Ximeng Electronic Technology Co., Ltd. >> 12volt to 28volt 40AMP DC to DC Voltage Converter

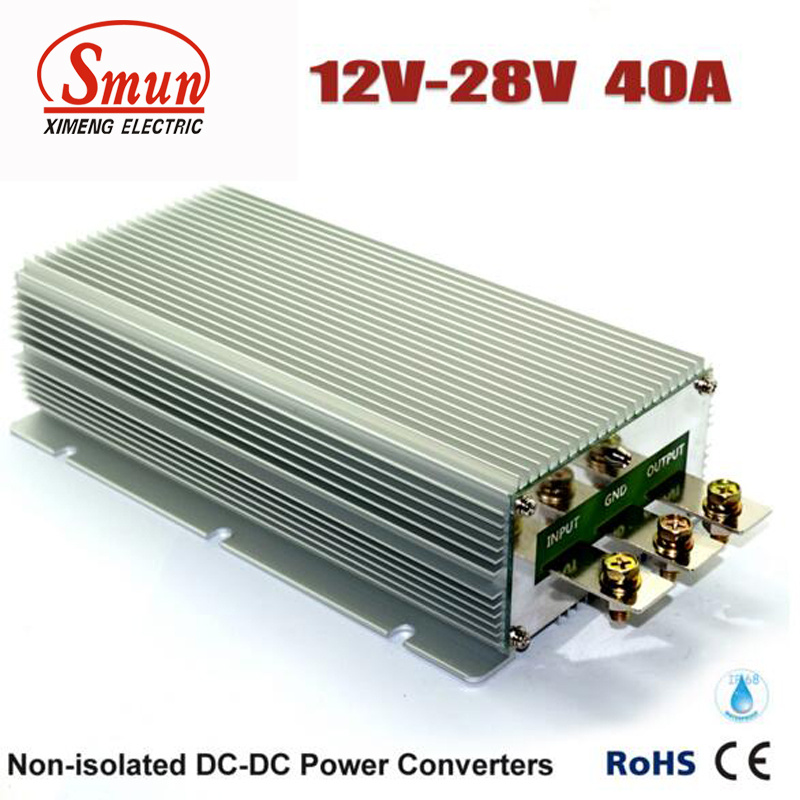

12volt to 28volt 40AMP DC to DC Voltage Converter

12volt to 28volt 40AMP DC to DC Voltage Converter
Price: US $ 81-98/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS-1120(12)-28
Rated Power: 560W
Input Voltage Range: 9-18V DC
Output Voltage: 28VDC
Output Current: 40A
Size: 200*127*63mm
Waterproof IP: IP68
Efficiency: up to 94%
Weight: 1.5kg
Working Temperature: -40°c ~ +80°c
Short-Circuit Protection: No
Output Type: Single
Warranty: 1 Year
Output Power: >500W
Connection Mode: Series Switching Power Supply
Certification: ISO
Input Voltage: 12VDC
Brand: Smun

Product Description

Features:
1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 10-16Vdc, LED display
4. Industry grade DC12V to DC28V step-up converter, high efficiency up to 96%
5. 100% waterproof & anti-shock protection, Ultra compact size, light weight
6. According: CE/RoHS, IP68 design
7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection
8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circiut. Auto-recovery when device is back to normal operating
9. Non-Isolated Module,
10. 1 year warranty, lifetime up to 100,000 hours.

Specifications:
ModelSDS-1120(12)-28
Input rated voltage12V DC
Input voltage range10-16V DC
Efficiency97.5% (half load), 96% (full load)
Output voltage28V DC
Output current40 Amps
Output rated power1120 Watts
Output peak power1400 Watts
Voltage regulation< 1%
Load regulation< 2%
Ripple (Full load test)< 180mV
No-load current50~60mA
Working temperature-40°c ~ +80°c
Waterproof ratingIP68
Over-voltage protectionYES
Over-current protectionYES
Over-temperature protectionYES
Short-circuit protectionNO
Machine size200*127*63mm
Package size250*150*100mm
N. Weight2.5kg
G. Weight2.85kg
Cooling wayFree air convection
OtherCarton packaging
