13.5V/54W 10A Battery Charger Power Supply UPS Function Backup Power Supply
| Price: |
US $ 12.5-13.5/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
5308 |
| Phase: |
Single Phase |
| Typ: |
Standby |
| Protection: |
Over Voltage,Short Circuit,Over Current, |
| Application: |
Security System/LED Lighting/Industry |
| Classification: |
Lighting/Power |
| Standby Time: |
Standard Machine |
| Standby UPS: |
Sine Wave Output UPS |
| Output Capacity: |
Medium Type |
| Equipment Mode: |
Centralized Model |
| Brand: |
Sanyi Power |
Product Description
Product Description

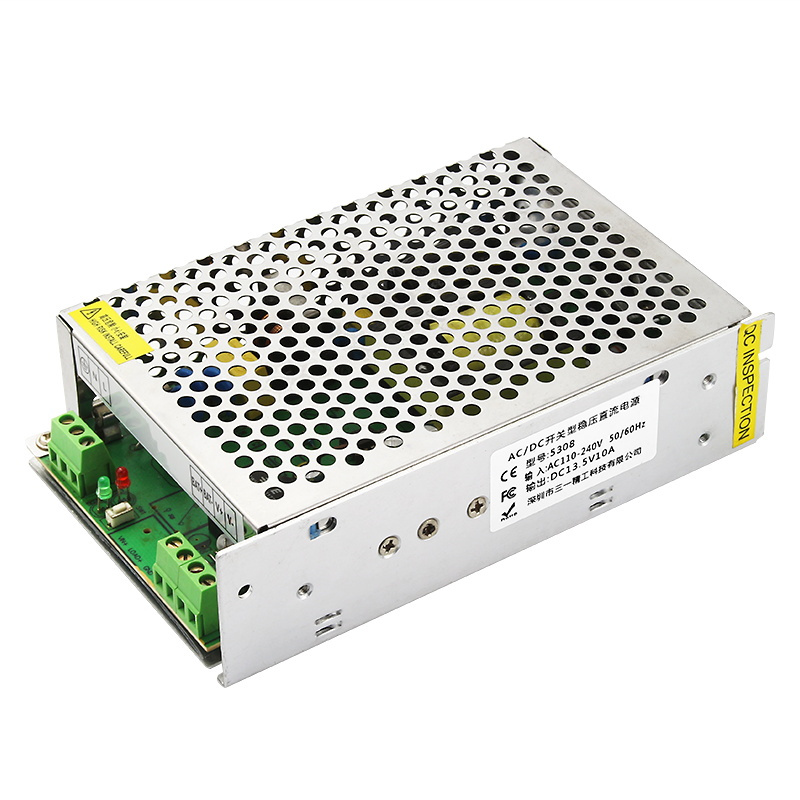

AC/DC Switching regulated DC power supply 13.5V 10A
1.Features:>Universal AC input/Full range
>Built-in EMI fliter
>High efficiency,Long life and high reliability
>Protections:Shortcircuit/Over Load/ Over Voltage/Over temperarture
>Charging overvoltage and undervoltage protection
>100% full load burn-in test
>LED indicator for power
>Can be customized according to user selctions(Current and Voltage can be adjusted)
Certificated by UL,TUV,CCC,CE,UL,CB,FCC,and RoHS>Battery floating long-line, high charging efficiency, battery saturation can be up to 90%
>Stoped to prevent overcharging, effectively extending the battery life
>Mains / battery automatic switchover time is very short, without staff on duty
>Can directly start the UPS batteries to meet emergency needs of users2.Model No.| | 5308-12 | 5308-24 |
| OUTPUT | OUTPUT NUMBER | CH1 | CH2 | CH1 | CH2 |
| DC VOLTAGE | 13.5V | 13.5V | 13.5V | 13.5V |
| RATED CURRENT | 10A | / | 5A | / |
| CURRENT RANGE | 0 ~ 10A | / | 0 ~ 5A | / |
| RATED POWER | 135W | 135W |
| RIPPLE & NOISE (max.) | 120mVp-p | ------ | 120mVp-p | ------ |
| VOLTAGE ADJ. RANGE | ±10% | ±10% |
| VOLTAGE TOLERANCE | ±5.0% | ------ | ±5.0% | ------ |
| LINE REGULATION | ±0.5% | ------ | ±0.5% | ------ |
| LOAD REGULATION | ±1% | ------ | ±1% | ------ |
| SETUP, RISE TIME | 500ms, 50ms/220VAC at full load |
| HOLD UP TIME (Typ.) | 50ms/220VAC At full load |
| INPUT | VOLTAGE RANGE | 110~ 220VAC |
| FREQUENCY RANGE | 50 ~ 60Hz |
| POWER FACTOR (Typ.) | PF>0.92 at full load |
| EFFICIENCY (Typ.) | 80% | 84% |
| AC CURRENT (Typ.) | 3.8A/220VAC |
| INRUSH CURRENT (Typ.) | COLD START 50A/220V |
| LEAKAGE CURRENT | 3.5mA |
| PROTECTION | OVERLOAD | 105 ~ 135% |
| Protection type : AC Charging Mode : Constant current limiting, recovers automatically after fault condition is removed |
| UPS Mode : Protected by internal fuse |
| OVER VOLTAGE | 78%~90% | |
| Protection type : Shut down o/p voltage, re-power on to recover |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60°C (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -20 ~ +85°C , 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| SAFETY & EMC | SAFETY STANDARDS | U60950-1, TUV EN60950-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH |
| EMC EMISSION | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3 |
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, light industry level, criteria A |
| OTHERS | MTBF | ≥100000h. |
| DIMENSION | 198*98*42mm (L*W*H) |

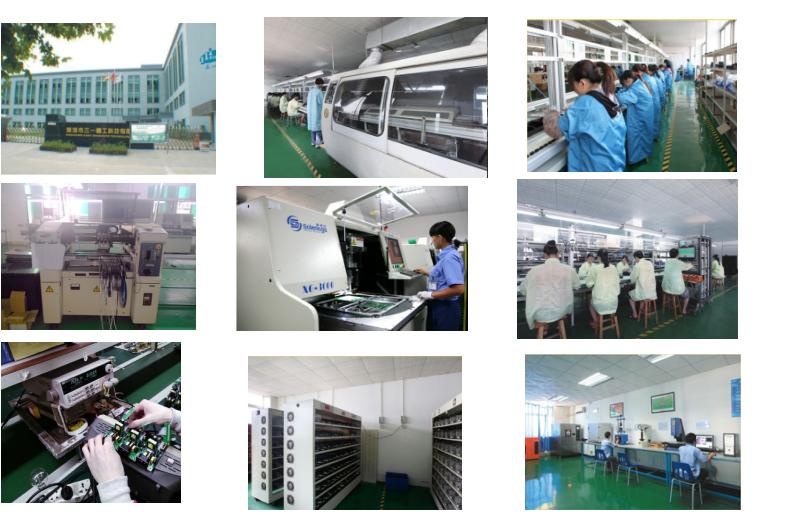

4.Factory Profiles
5.Certificate6.FAQ| Q1:What kind of payment term do you accept ? |
| A1:T/T,L/C,Paypal,Western Union |
| Q2: What is your MOQ ? |
| A2:The MOQ can be 1Pcs |
| Q3:What's your lead time ? |
| A3:The delivery time is 1-25days which depend on detail items and quantity. |
| Q4:Do you accept OEM ODM ? |
| A4: Yes,Customized specification & structure /Print logo on your products/Customized color package box |
| Q5:What is the warranty for your product? |
A5:All our products have been strictky quality checked before packing. Our repare rate under 0.1%~0.2% .We have the best
professional and experienced engineer and we are very strict QA and QC .So,You don't need worry about the quality problem
if cooperate with us. |
| Q6:Can we be your distributor? |
| A6:Yes,If your annual sales much more than our other customers in your country,that your can be our distributor. |
