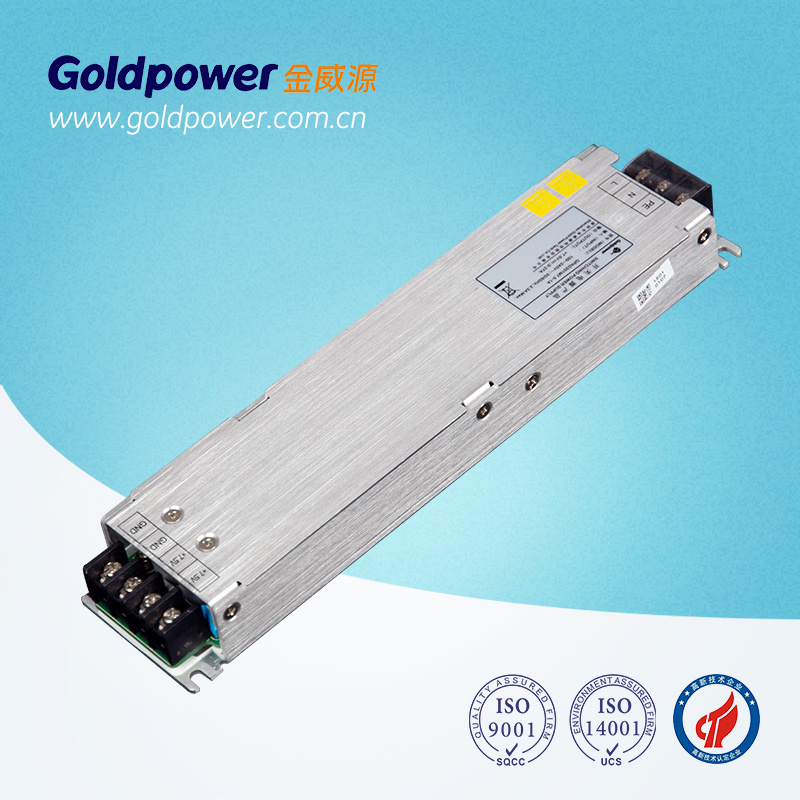

138W 4.6V Customized LED Power Supply for LED Display Screen

Name: 138W 4.6V Customized LED Power Supply for LED Display Screen
Brand: all-electronics-online.com
SKU: 726831142
Availability: InStock
Rating: 4.7 (123 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD151M5-1B
Usage:	Vehicle
Output Type:	Single
Driving Method:	LED Constant Current
Brand:	Goldpower

Product Description

Model No: GPAD151M5-1B             Brand: Goldpower
Warranty: 2 years Input Voltage: 100~240Vac
Output Power: 138W Typical Output Voltage: 4.6V
Output type: single Certification: RoHs, CE/UL
HS Code: 8504401990       Dimension: 155*61*26mm
Weight: 1kg Origin: Shenzhen, China
Trademark: Goldpower

Features:
Wide input AC voltage range 100~240Vac
Wide output DC voltage range 4.0~4.6V to meet different screen requirements
Operating temperature range:-25°C~+80°C
Current sharing function
High efficiency and reliability
Standard LED power supply size
Output short circuit protection; over current/voltage protection
Designed to meet safety standard requirements

Product Description:

Model No.	GPAD151M5-1B
Input voltage range	100~240Vac
Output voltage range	4.0~4.6V
Output current range	0~30A
PFC	With PFC function
Power	138W
Efficiency	90%
Current sharing degree	10%
Output over voltage point	5V, auto-recovery
Output over current point	30A, hiccup mode , auto-recovery
Cooling	Thermal conduction
Certificates	CE,UL
Working temperature	-25°C~+80°C
Store temperature	-25°C~+100°C
Working environment	Indoor and outdoor installations
Dimension	1556126mm
