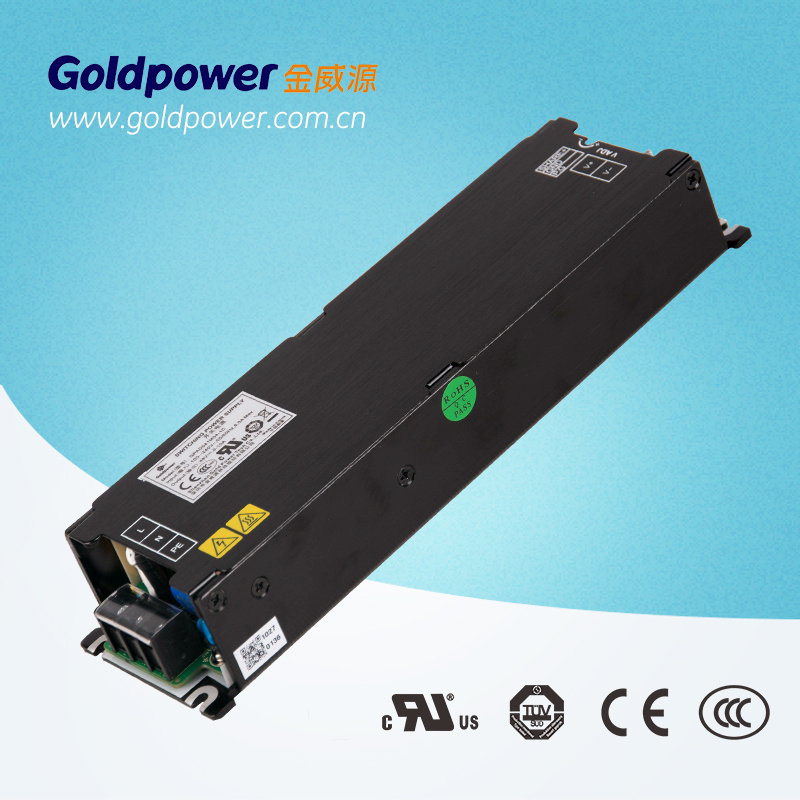

500W 48V Customized Power Supply

Name: 500W 48V Customized Power Supply
Brand: all-electronics-online.com
SKU: 726987602
Availability: InStock
Rating: 4.7 (107 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD541M54-1C
Output Type:	Single
Certification:	CCC

Product Description

Model No: GPAD541M54-1C Brand: Goldpower
Warranty: 2 years Input Voltage: 90~264Vac
Output Power: 500W Typical Output Voltage: 48 V
Output type: single Certification: RoHs,CCC/UL/CE/TUV
HS Code: 8504401990 Dimension: 230*63*38mm
Weight: 0.8kg Origin:Shenzhen, China
Trademark: Goldpower

Features:
Wide input AC voltage range 90~264Vac
Wide output DC voltage range 48~54V to meet different usage requirements
Operating temperature range:-40°C~+75°C
Standard size, high reliability and stability
Current sharing function
Fan included
Output short circuit protection; over current/voltage protection
Designed to meet safety standard requirements

Product Description:

Model No.	GPAD541M54-1C
Input voltage range	90~264Vac
Output voltage range	48-54V
Output current range	0~10A
PFC	With PFC function
Power	500W
Efficiency	94%
Current sharing degree	10%
Output over voltage point	57V, auto-recovery
Output over current point	10.5A ,auto-recovery
Cooling	Fan cooling
Certificates	CCC/UL/CE/TUV
Working temperature	-40°C~+75°C
Store temperature	-40°C~+85°C
Working environment	Indoor and outdoor installations
Dimension	2306338mm

Techone was founded in 2003, a leading energy-saving company in the power supply industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 500 employees and many core intellectual property rights.

We supplies digital power supply units and control solutions, for HID/LED/UV lighting and non-lighting applications. Nowadays, more than one and a half million our product have been working world-wide for general and special applications, such Hydroponics plant growing, street lighting, UV water processing and so on. Our patented devices and technology enable you to save upto 50% energy while delivering the same or more brightness.

We provide a complete line of products for HID/LED/UV system, with mutiple dimming or remote-control, universal AC/DC input and wide-range output power. OEM/ODM is also welcome. Our product has always passed UL certification. Good quality and service will be promised.
