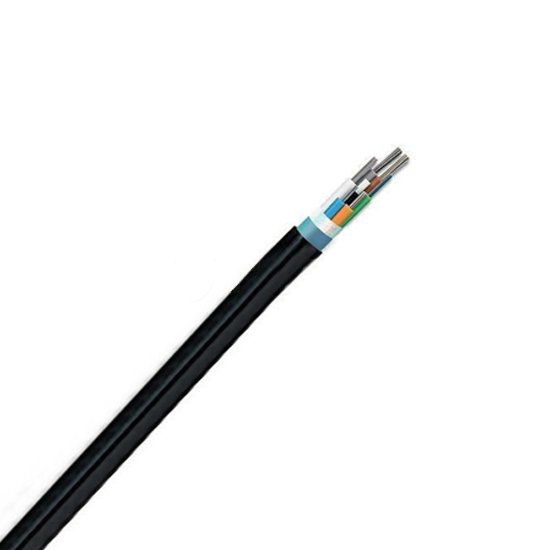

144-Core Singlemode Single-Armored Single-Jacket Ribbon Loose Tube Fiber Optic Cable

Name: 144-Core Singlemode Single-Armored Single-Jacket Ribbon Loose Tube Fiber Optic Cable
Brand: all-electronics-online.com
SKU: 819910655
Availability: InStock
Rating: 5 (134 reviews)

Price:	US $ 4.9/Meter
Min Order:	4000/Meter
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	GYDTA-OS2-144F
Od:	15.9 mm
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CE
Core:	144 Cores
Sheath Material:	PE

Product Description

144 Fibers SM OS2, Single-Armored Single-Jacket, Ribbon Loose Tube, Waterproof Outdoor Cable GYDTA

GYDTA uses steel as the central strength member ensures good tensile resistance, and improves the bending performance. It has excellent moisture resistance ability: the loose tube is filled with grease to protect the fiber, APL tape prevent the water ingress, then the cable is completed with PE out sheath. It's suitable for aerial and duct application. Because of the good moisture resistance, it can also be used in cable trench. It has the loose tube structure with ribbon cable, which is surrounded by the APL tape. GYDTA is a good option for interoffice communication, outdoor access network.

Cable Type	Single-Armored Outdoor	Fiber Count	144 Fibers
Construction	Ribbon Loose Tube	Fiber Type	Singlemode G.652B
Outer Jacket Material	PE(Black)	Strength Member Material	Steel Wire
Cable Diameter	15.9mm	Weight	236kg/km
Armor Layer	Aluminum Tape	Application	Aerial and Duct
Tensile Strength (long/short term)	600/1900(N)	Crush Load (long/short term)	300/1000 (N/100mm)
Bending Radius (static/dynamic term)	160/320(mm)	Operating/Storage Temperature	-40 to +60°C

Feature and Application

Good mechanical and temperature performanceLight weight, small size, nice moisture resistanceGood tensile strength and bending performanceTube filling compound ensuring a critical protection for ribbon fiberLoose tube structure wrapped by APL tape enhancing water blockingPE jacket with low friction installation, excellent protection

Cable trenchAccess networkLocal trunk lineInteroffice communicationAerial and duct applicationLong-distance communication

Ribbon Loose Tube for Duct and Aerial Application

GYDTA armor ribbon loose tube fiber optic cable combines loose tube ribbon design with a layer of durable aluminum tape armor for enhanced mechanical and environmental protection plus resistance from chewing rodents. This cable offers an excellent solution for applications requiring increased carrying capacity along with added compressive strength and rodent resistance, including duct-to-lashed aerial.
