144c GYTA53 Single Mode Fiber Optic Cable

Prod Model:	GYTA53
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber Count:	2~288 Cores
Sheath:	PE
Fiber Type:	Single Mode&Multi Mode
Service Life:	15 to 20 Years
MOQ:	100km
Warranty:	12 Months
OEM ODM:	Acceptable
Jacket Color:	Yellow or Cutom Made
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	ISO9001

Product Description

Made in China Self-supporting Aerial Optical fiber Cable GYFTC8Y

Description

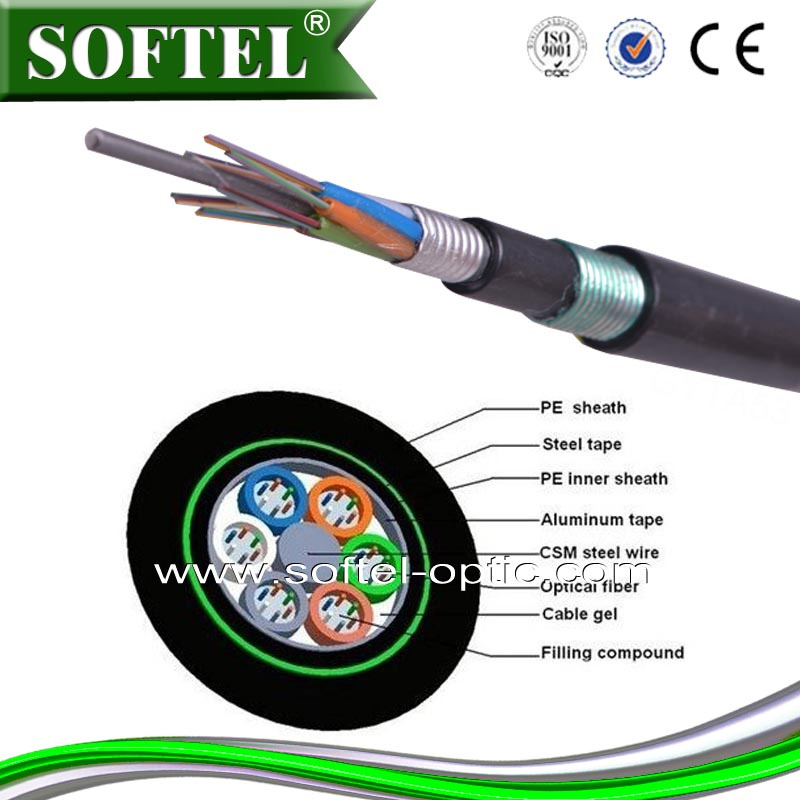

The fibers, 250um, are positioned in a loose tube made of high modulus platic. The tubes are filled with a water- resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of cores as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
The fibers, 250um, are positioned in a loose tube made of high modulus platic. The tubes are filled with a water- resistant filling compound. A steel wire, sometimes sheathed with polyethylene(PE) for cable with high fiber count, locates in the center of cores as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath.
Application

1. Long distance, inter-exchange communication
2. CATV
3. Computer network transmission system


Features

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resisitant
Special tube flling compound ensure a critical protection of fiber
Specially designed compact structure is good at preventing loose tubes from shrinking
PE sheath protects cable from ultraviolet radiation
The following measures are taken to ensure the cable watertight:
-Steel wire used as the central strength member
-Loose tube filling compound
-100% cable core filling
-APL moisture barrier
Note: The sheath can be made of LSZH material. (The model turns to GYTZA53 in the case)

echnical parameters
Cable type	GTYA-2~6	GTYA-8~12	GTYA-14~18	GTYA-20~24	GTYA-26~30
Fiber count	2~6	8~12	14~18	20~24	26~30
Tubes	1	2	3	4	5
Fillers	4	3	2	1	0
Cable diameter(mm)	9.7
Cable weight(kg/km)	90
Tensile strength long/Short term(N)	600/1500
Crush resistance long/Short term(N/ 100mm)	300/1000
Bending radius static/Dynamic(mm)	10D/20D
Storage/Operating Temperature	-40°c to +70°c
