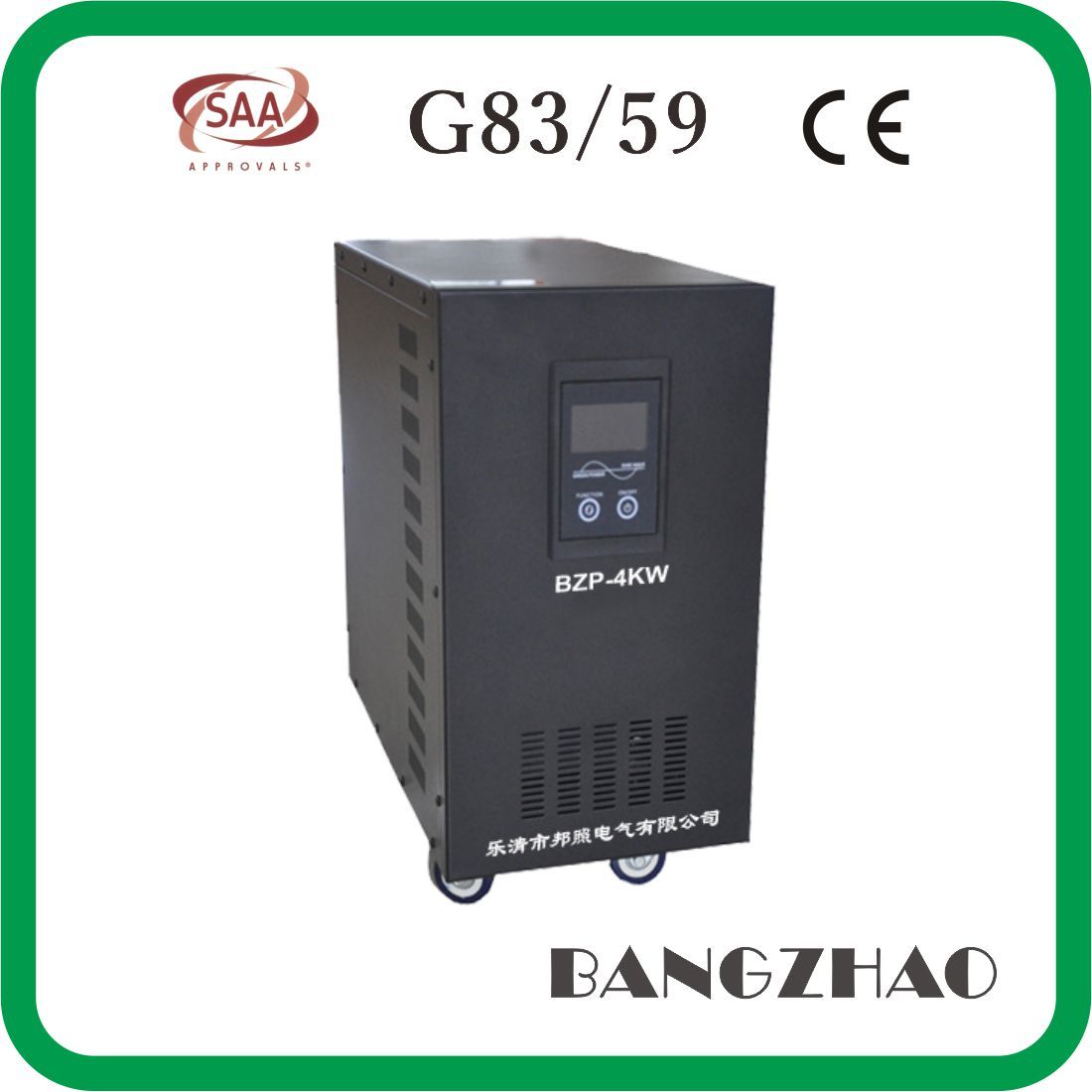

145V~275VDC Wide Input 4000W UPS Inverter with Charge and Bypass

Prod Model:	BZP-4KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Wave Form:	Pure Sine Wave
Output Voltage:	110V,120V,220V,230V,240V Optional
Color:	Black

Product Description

145V~275VDC Wide Input 4000W UPS Inverter with Charge and Bypass

Features
 Advanced performance by CPU control
 Auto voltage regulation(AVR),wide input voltage 145V~275V,accurate output,AVR function, adapt all kinds lf bad electric environments
 Intelligent battery charging, the charging current can be adjusted according to the equipped battery, it is fast and reliable and can increase the service life of the battery
 Intelligence display of output voltage, frequency,battery capacity, fault, over load, load
 Generator compatibly and external battery connection achievable
 It can be automatically started up with mains supply, and has a wider range of applications
 Advanced automatic constant charging circuit, prolongs battery life
It has perfect battery under-voltage, overload, over-discharge, short-circuit protections
Using the fifth efficient IPM power module from Mitsubishi

Technical Data


Model		BZP-4000W
Rated power		4000W
Battery Voltage		48V	96V
Input rated current		83A	42A
Universal parameter
AC Bypass Input	Rated voltage	220VAC, Single phase
	Input range	145V~275V
	Frequency	45Hz~65Hz (Automatic detection)
	Bypass mode	Battery priority or grid priority
AC Output	Rated Voltage	220V±2%
	Frequency	50Hz±0.5Hz
	Rated current	18A
Output wave from		Pure Sine wave
Output waveform distortion		≤3%
Display		LCD
Transfer time		<4ms
Environment	Noise	≤50dB
	Temperature	0ºC~40ºC
	Humidity	10%~90%(no condensate)
Efficiency		≥88%
Degree of protection		IP20 (Indoor)
Using altitude(m)		≤2000
Cooling method		Fan in ventiltation conditions
Protection	Overload	Overload exceeds 110%, automatic shutdown in 30 secs;Overload exceeds 120%, automatic shutdown in 2 secs;Under mains supply mode, it will not shutdown if overload, just keeping sound.
	Short-circuit	Output short-circuit, automatic shutdown after keeping sound 20 secs
	Battery	high or low voltage protection
Alarm sound	A	Without alarm sound if work normally under mains supply mode, when mains supply cut off, turn into battery mode, keeping sound 4 times every 30 seconds.
	B	Keeping sound every seconds for second time alarm of Battery low voltage; send out sharp sound under machine fault.
	C	Keeping sound every seconds under Overload
Product dimension  (W×D×H )mm		465×245×465
Shipping size (W×D×H)mm		530×310×510
Net weight (kg)		44Kg
Gross weight (kg)		46Kg
Packing	Standard export double carton
