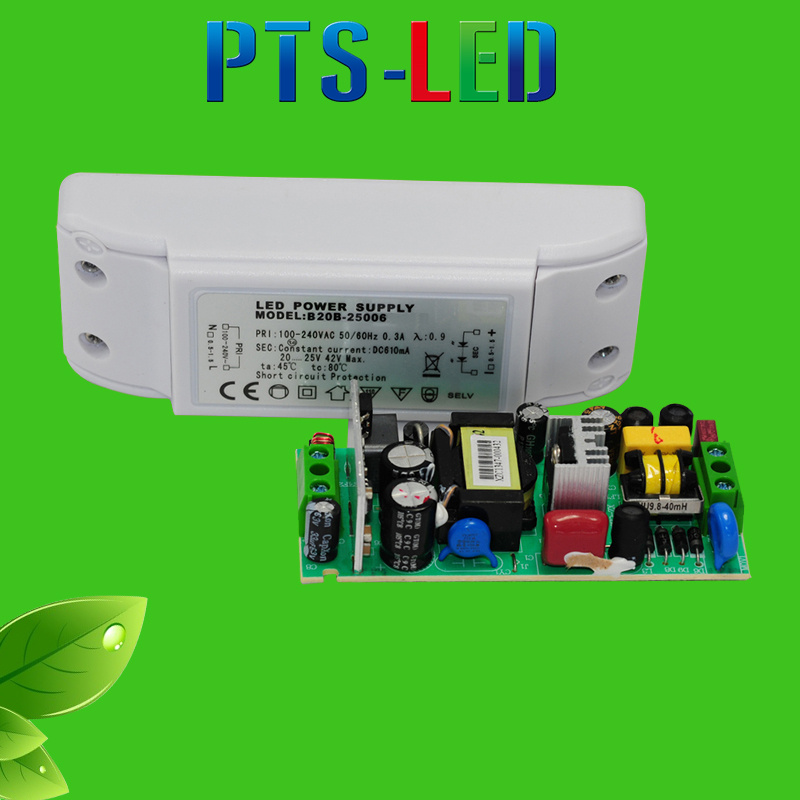

15-25W Constant Current LED Driver Ce

Name: 15-25W Constant Current LED Driver Ce
Brand: all-electronics-online.com
SKU: 719051842
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 1-3.5/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PTS-LD-B20B
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Pack Sealing Size:	Other
Brand:	Pts

Product Description

PTS-LED DRIVER FEATURES:

1.PROTECTION FUNCTION

1.1 Over- current Protection

1.2 Over-Voltage Protection

1.3 Over-Load Protection

1.4 Short Circuit Protection

2.Operating Specifications

2.1 Operating Ambient Temperature: -40°C --- +60°C

2.2 Relative Humidity: 10% - 90% RH

2.3 Vibration 1.0mm, 10 -25Hz, 15 minutes per cycle for each axis (X, Y, Z)

3. Input

3.1 AC input range: 90-260Vac/0.5 A max /50-60Hz

3.2 Input inrush current: ≤10A at 110Vac ≤20A at 230Vac

3.3 Power factor: ≥0.95 at full load,115Vac/230Vac

3.4 Efficiency: >92% Typical

4. Output

4.1 Ripple and Noise

Maximum peak to peak ripple & Noise

Measurements are taken with a 20MHz bandwidth oscilloscope and

each out put terminated with a 10uF capacitor and a 0.1uF capacitor.

4.2 Output current precision: Io±5%

NINGBO PTS ELECTRIC TECHNOLOGY company is strong in LED lighting Area.

We have all parts manufactory and creat a big advantage in production cost.

Our manufactories contains:

LED SMD Component

LED Driver

LED Housing body

LED PCB Board

Assembling manufactory part.

Based on all parts produced by ourselvies. We are strong in this LED lighting Area.

From 2014, 2015 and 2016, we are continue developping smart lighting products.

We have patents for our LED Driver and LED sensor products.

In future, we would have more sensor lighting product and WiFi products.

Based on same quality and request, PTS have lower price than others. We are sure.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
