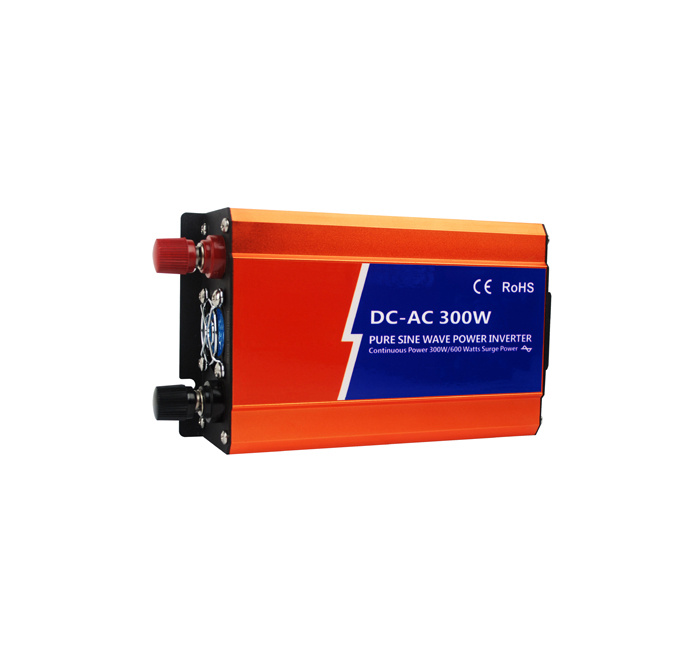

150-6000watt Inverter Pure Sine Wave Output

Prod Model:	WSP-3112E

Product Description

150-6000Watt inverter Pure sine wave Output
Pure sine wave output.
Low work noise, high efficiency.
Smal l, light and artistic, benefited from adopting the SMD pastern technology.
Featured with high rel iabi l ity and  low  fai lure rate by using  the advanced Double-CPU single chip  intel lectual control technology
Cool ing fan is intel lectual control led, and its working status is control led by CPU, which mostly increased its service
l ife and helps to save the power consumption, improve work efficiency and lower the working noise.
With complete protection: overload protection,  internal over-temperature protection, output short-circuit protection,
input under-voltage protection, input over-voltage protection, etc, improving the rel iabi l ity of the products greatly
Travel set equipment, Industrial equipment, Office equipment, Kitchen Equipment, Household electrical equipment,
Power tools etc.


Model

3112E 150-6000W Pure sine wave Output inverter

150W

300W

500W

600 W

800 W

1000W

1500W

2000W

2500W

3000W

4000W

5000W

6000W

Input

DC voltage

12V or 24V or 48V or 110V

Voltage range

10-15VDC or 21-30VDC or 42-60VDC or 100-120VDC

No  load current draw

<0.6A

<0.7A

<0.8A

<0.9A

<1.5A

<1.86A

<1.9A

<1.86A

<1.86A

<1.9A

<1.86A

<1.9A

<1.86A

Efficiency

> 85%

DC connection

Cables With Cl ips or Car Adaptor

Output

AC voltage

100/110/120VAC or 220/230/240 VAC

Rated power

150W

300W

500W

600 W

800 W

1000W

1500W

2000W

2500W

3000W

4000W

5000W

6000W

Instant Starting power

300W

600W

1000W

1200 W

1600 W

2000W

3000W

4000W

5000W

6000W

8000W

10000W

12000W

Waveform

Pure sine wave

Frequency

50Hz or 60Hz

AC regulation

3%

Protection

Low voltage alarm

10DC±0.5V or 20.5DC±1V or 44VDC±1V or 100VDC±1V

Low voltage shut down

9.5DC±0.5V or 19.5DC±1V or 42VDC±1V or 96VDC±5V

Over  load

Shut off output

Over voltage shut down

15.5V or 30.5V or 61.2V or 120V

Over  thermal

Shut off output automatical ly

Enviro nment

Working  temperature

-10ºC ~ 50ºC

Working humidi ty

20%~90%RH

Storage  temperature

-30ºC~70ºC

Package

Machine size(cm)

18X10.5X6

26X16.5X8.5

32.8X16.5X8.5

47.5X16.5X8.5

36.6X15.1X15.5

41.7X15X15.3

43.5X19.9X14.6

54.4X19.9X14.6

54.4X19.9X14.6

Packing size(cm)

27.5X16X11.3

36.5X23X14.8

43X23X14.8

56X23X14.8

48X21X20.5

48X21X20.5

56.5X28.5X23.5

66.5X28.5X23.5

66.5X28.5X23.5

Net weight(kg)

0.86

2.46

2.52

3.32

3.56

5.13

4.83

6.03

9.7

11.9

12.5

Gross weight(kg)

1.13

3.01

3.9

3.9

5.9

6

5.57

6.77

11.65

13.7

15

Packing mode

Carton packaging

Other

Start

Soft start

Cooling ways

Intel l igent cool ing fan

Standard: Conform to GB/IEC regulation   EMC: GB7260.2  5/IEC61000-4-2  5    SAFEY: GB4943

Note: Product specifications are subject to change without further notice
