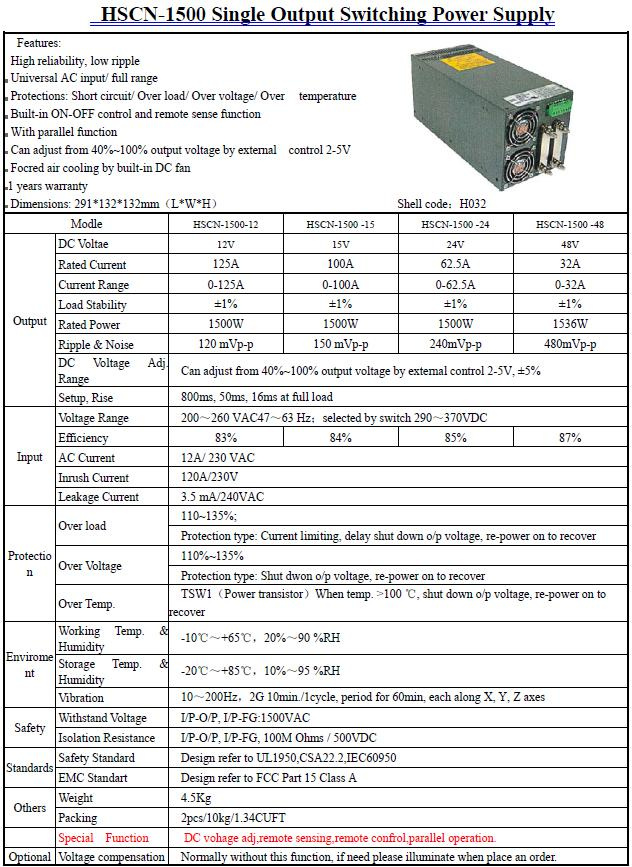

1500W Single Output with Parallel Funcrion Power Supply

Prod Model:	HSCN-1500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Range:	Can Adjust Form 40%~100%
Type Of Output:	Single Output(AC/DC to DC),Constant Voltage
Type Of Power Supply:	Metal Case Power Supply
Function:	with Parallel Function
Output Type:	Single
Warranty:	2 Years
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Power Supplying System:	Level 2 Power Distribution Equipment
Certification:	IEC950
Output Power:	1500~1536W
Input Voltage:	AC200~260
Brand:	Dhecn

Product Description

Features:
· High reliability, low ripple
· AC input voltage AC200~260V
· Protections: Short circuit/ Over load/Over voltage/ Over · temperature
· Built-in remote ON-OFF control and remote sense function
· With parallel function
· Can adjust from 20%~100% output voltage by external control 1-5V
· Forced air cooling by built-in DC fan
· 2 years warranty
· Dimensions: 291*132*132mm(L*W*H)

Specification

1)INPUT
· Voltage Range: 200~260 VAC47~63 Hz; 290~370VDC
· AC Current: 12A/ 230 VAC
· Efficiency: 83%(HSCN-1K5-12); 84%(HSCN-1K5-15); 85%(HSCN-1K5-24); 87%(HSCN-1K5-48);
· Inrush Current: 120A/230V
· Leakage Current: 3. 5 mA/240VAC

2)PROTECTION
· Over Load 110%~135% Protection type: Current limiting, delay shut down o/p voltage, re-power on to recover
· Over Voltage 110%~135% Protection type: Shut down o/p voltage, re-power on to recover
· Over Temp. TSW1(Power transistor)temp. >100 º C, shut down o/p voltage, re-power on to recover

3)ENVIRONMENT
· Working Temp., Humidity: -10º C~+65º C, 20%~90 %RH
· Storage Temp., Humidity: -20º C~+85º C, 10%~95 %RH
· Vibration: 10~200Hz, 2G 10min. /1cycle, period for 60min, each along X, Y, Z axes

4)SAFETY AND STANDARD
· Withstand Voltage: I/P-O/P, I/P-FG: 1500VAC
· Isolation Resistance: I/P-O/P, I/P-FG, >100M Ohms / 500VDC
· Safety Standard: Design refer to UL1950, CSA22. 2, IEC60950
· EMC Standard: Design refer to FCC Part 15 Class A

5)OUTPUT
· Model: HSCN-1K5-12 | HSCN-1K5-15 | HSCN-1K5-24 | HSCN-1K5-48
· DC Voltage: 12V | 15V | 24V | 48V
· Voltage Tolerance: ± 1% | ± 1% | ± 1% | ± 1%
· Rated Current: 125A | 100A | 62. 5A | 32A
· Current Range: 0-125A | 0-100A | 0-62. 5A | 0-32A
· Rated Power: 1500W | 1500W | 1500W | 1536W
· Ripple & Noise: 120 mVp-p | 150 mVp-p | 240mVp-p | 480mVp-p
· DC Adjustment Range: Can adjust from 20%~100% output voltage by external control 1-5V
· Setup, Rise, Hold Time: 800ms, 50ms, 16ms at full load
