150mA SMD 150lm 6V LED Diode

Name: 150mA SMD 150lm 6V LED Diode
Brand: all-electronics-online.com
SKU: 831740785
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	US $ 0.0354-0.0385/Piece
Min Order:	10000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-M3030
Voltage:	5.6-6.8V
Current:	175mA
Luminous Flux:	140-150lm
CRI:	70
Warranty:	3 Years
Chip Material:	InGaN
Beam Angle:	120??
Emitting Color:	White
Base Material:	Copper
LED Chips:	Tekcore
Power:	1W
Life:	50000h
Certification:	CE
LED Packaging Type:	SMD
IP Rating:	IP20

Product Description

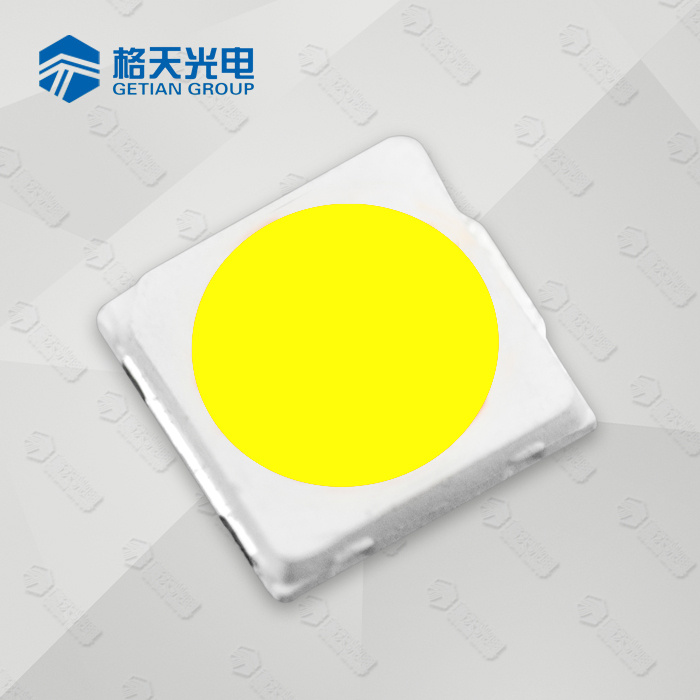

150mA SMD 150LM 6V LED Diode

Features
·high luminous efficacy 160lm/w
·copper base structure with high heat conductivity
·flat light with 120 degree
·corresponding components available
·RoHS, LM-80 Certified
·> 30000 hrs
·super high CRI
·consistent color
·SMT Reflow Soldering applicable

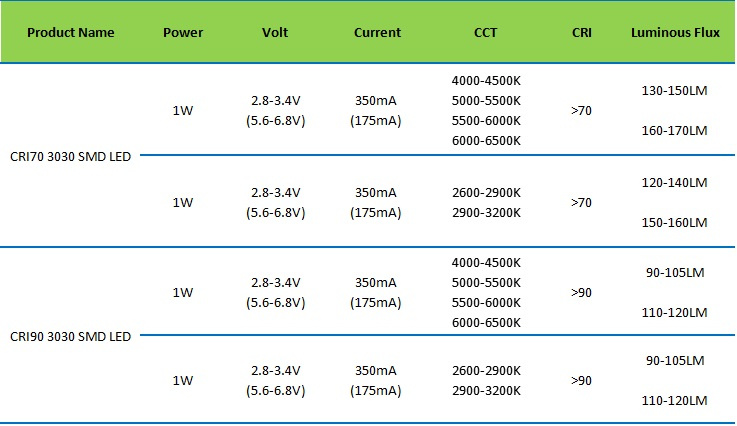

Specificactions

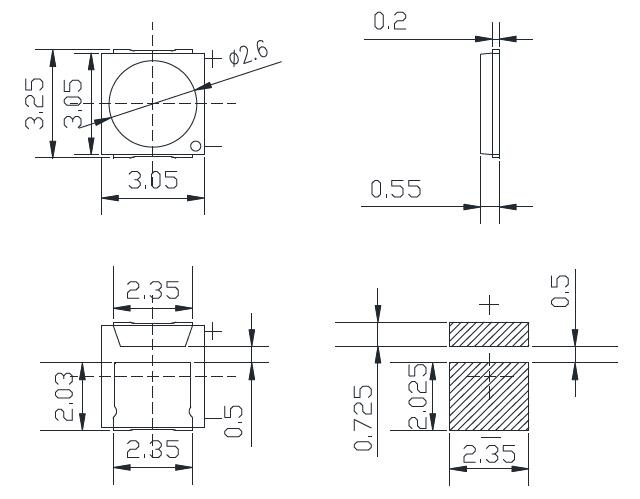

Dimension (mm)
