| Prod Model: |
JYM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Silvery White |
| OEM: |
Accepted |
| Warranty: |
18 Months |
| Input Voltage: |
12V/24V/48V |
| Phase: |
Single |
| Type: |
DC/AC Inverters |
| Power Source: |
Solar Power |
| Output Power: |
101 - 200W |
| Brand: |
Jyins |
Product Description
JY — — Company code;
Δ — — P: Pure sine wave inverter M: Modified sine wave inverter
PU: Pure sine wave inverter with charger
MU: Modified sine wave inverter with charger
CH: Battery charger SC: Solar Controller;
SY: Movable solar power system;
Δ — — 75W, 100W, 150W, 200W, 300W, 500W, 600W, 800W,
1000W, 1200W, 1500W, 2000W, 2500W, 3000W, 4000W,
5000W, 6000W, 8000W, 10000W;
1210, 1215, 1220, 1230, 1250, 2410, 2415, 2420;
1205, 2405, 1210, 2410, 1215, 2415, 1220, 2420, 1230,
2430, 1250, 2450, 1260, 2460, 1280, 2480, 12100, 24100;
Δ — — Typ

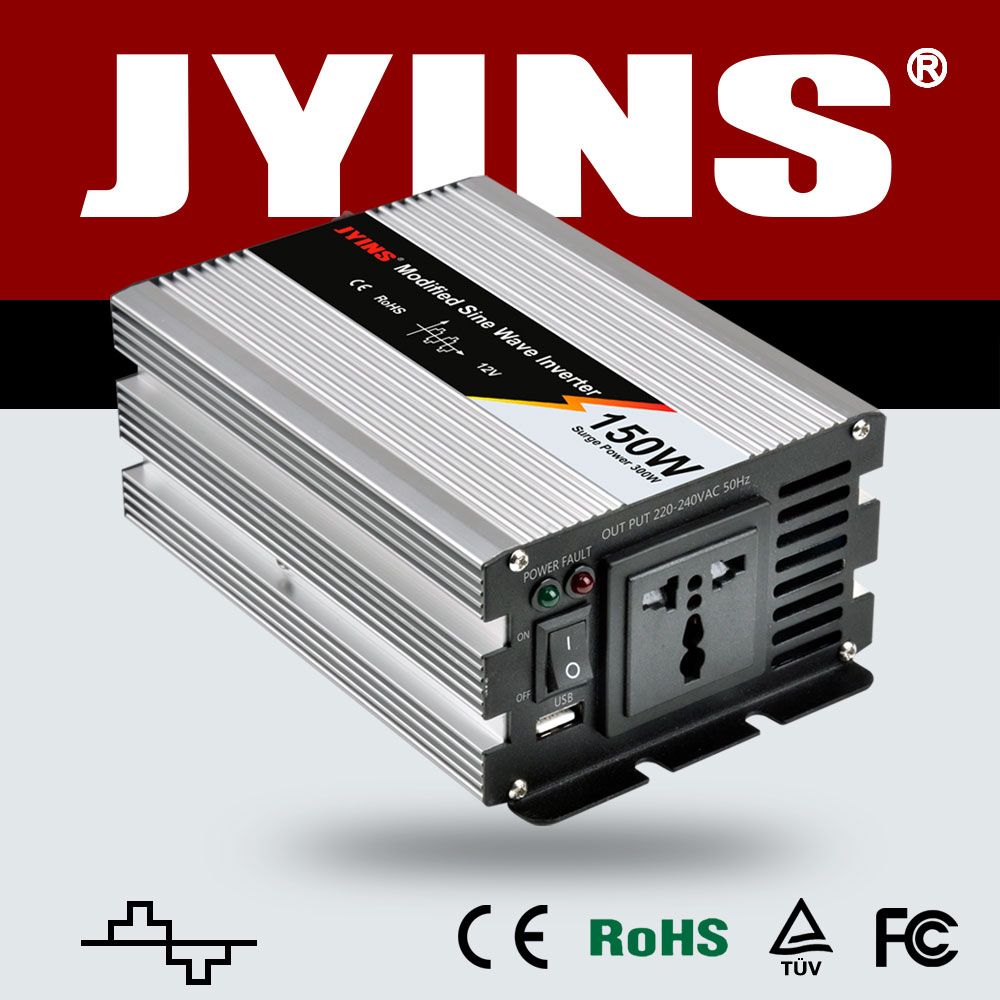

| Model | JYM-150-1 | JYM-150-1 | JYM-150-1 | JYM-150-2 | JYM-150-2 | JYM-150-2 |
| Rated power | 150W |
| Peak power | 300W |
| Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V |
| Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% |
| Unload current less than | 0.3A | 0.1A | 0.1A | 0.3A | 0.1A | 0.1A |
| Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz |
| Output waveform | Modified Sine Wave |
| USB port | 5V 1A |
| Max.efficiency | 90% |
| Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V |
| Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V |
| Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V |
| Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V |
| Low voltage recover | 12.3±0.5V | 24±0.5V | 48±1V | 12.3±0.5V | 24±0.5V | 48±1V |
| Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V |
| Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. |
| Over voltage | LED Red light on, shut down |
| Over load | LED Red light on, shut down |
| Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown |
| Short circuit | LED Red light on |
| Input reverse polarity | Fuse burn-out |
| Working temperature | -10°- +50° |
| Storage temperature | -30°- +70° |
| Dimension(mm) | 190x112x65mm |
| Packing(mm) | 240x150x100mm |
| Net./gross weight(g) | 600/680g |
| QTY/Ctn | 32 Pcs |
| Meas./Ctn(mm) | 500x405x425mm |
| Gross weight/Ctn(g) | 21760g |
| Warranty | 2 years |
| Configuration | Standard |
| Cooling method | Intelligent air cooling |
e: Type A, Type B, Type C, Type D, Type E, Type F, Type G;
Yueqing Jyins Electric Technology Co., Ltd. Founded in 1990, is located in the largest manufacturing base of low-voltage electric equipment of China--- Liushi, which is called "the Electric Device Metropolis of China". We are one of leading enterprises specialized in designing, manufacturing, developing and exporting all kinds of high and low voltage electric appliances, such as temperature controller (indicator), thermocouple, shunt, thermocouple wire, thermal resistor, current/voltage meter(panel meter), current divider, gas meters, water meter, KWH meter, automatic nozzle, contactor, relay, circuit breaker, transformer, thermal relays, pushbutton, lightning arrester, dropout fuse, switch, pneumatic, cylinder, cable accessories, power instrument, lighting, doorbell etc.
We have employed 500 workers and our factory covers 4, 0000 square meters area. with total assets reaching 5 million US dollars, we own modern production lines and high quality controlling equipments with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance and are widely exported to worldwide markets with good reputation and credit. Now we are selling products to North and South America, Middle East, Southeast Asia, Western Europe, Africa, Hong Kong, Taiwan area and etc...
"Quality first and user uppermost" is one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands. We sincerely welcome customers from worldwide to share our good quality products and services. with ceaseless efforts and developments in design and technology, we will surely do better and better. High praise among the customers.
We sincerely welcome our friends at home and aboard to guide us and then develop together.
