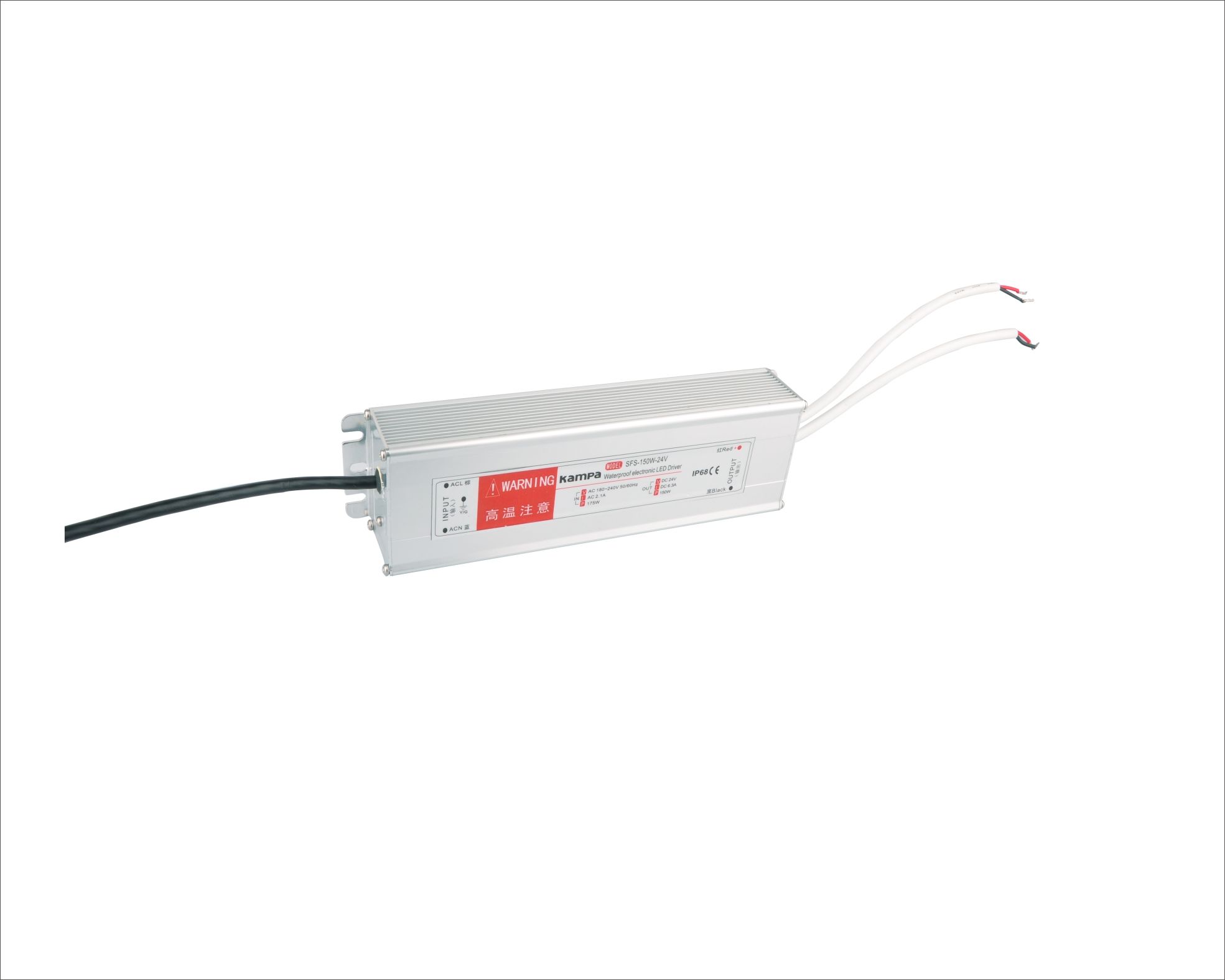

150W 24VDC Waterproof LED Switching Power Supply

Name: 150W 24VDC Waterproof LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 818317285
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 16.55/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SFS-150-24
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Kampa

Product Description

150W 24VDC waterproof led switching power supply

1.Technical Data

Model	SFS-150-12	SFS-150-15	SFS-150-24	SFS-150-48
Dc output voltage	12V	15V	24V	48V
Rated output current	12.50A	10A	6.25A	3A
Output current rage	0~12.5A	0~10A	0~6.25A	0~3A
Rated Power	198W	195W	199.2W	201.6W
Wave and noise	150mVp-p	240mVp-p	240mVp-p	240mVp-p
Efficiency	81.0%	83.0%	83.0%	84.0%
AC input voltage range	AC180~264V 47~63Hz;254~373VDC
Input current	2.6A/230V
AC INnrush current	Cold-start 30A/230V
Overload proctection	105%~150% Potection type: Hiccp mode, recobers automatically after condition recoverd
	Potection type :Shut down o/p voltage,re-power on to recover
Setup rise time	1000ms,30ms/230VAC at full lod
Withstand voltage	I/P-O/P:1.5KVAC,I/P-FG:1.5KVAC,O/P-FG: 0.5KVAC
Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/ 500VDC /25°C/70%RH
Working temperature	-10°C~+50°C
Overall dimension	2107040mm
EMC standards	Meet EN55022,EN61000-3-2,EN61000-3-3,EN55024 GB9254 Class B
Weight	1.2Kgs

Dimension &Weight:

Product size: 210*70*40mm Unit Weight: 1.2kgs
Packing details: 45pcs/ctn/54kgs/0.71CUFT

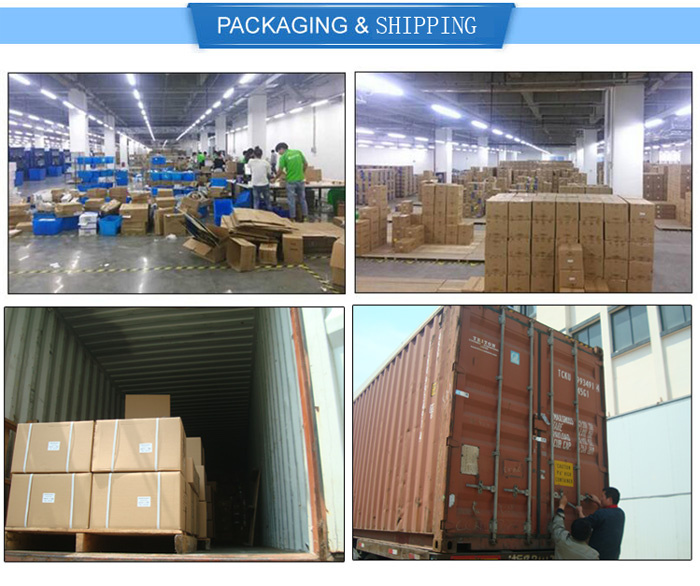

Packaging & Shipping

Company Information

Yueqing Kampa Electric Co.,Ltd. is Established in 2009.Has variety of goods ,such as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction box and so on.We are manufacturer and have ten years experience in Electrical industry.

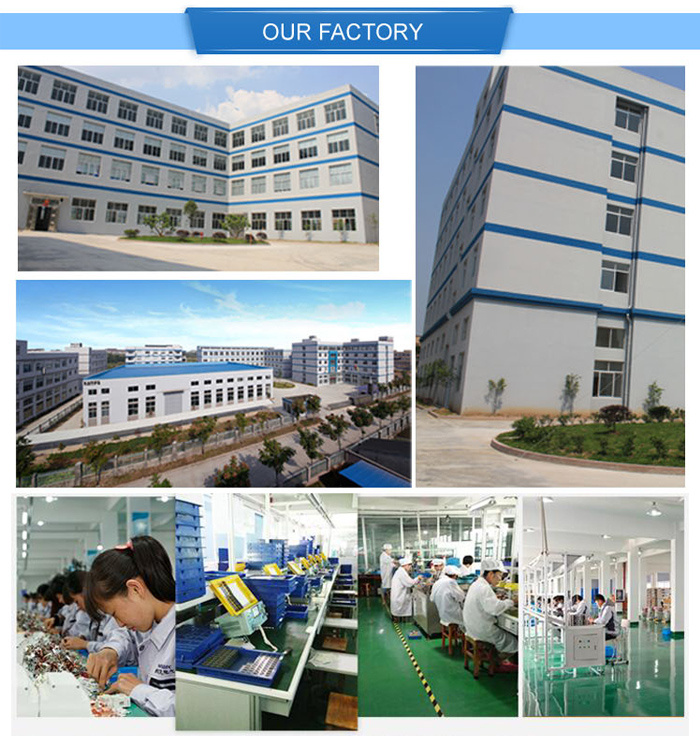

Our Exibition
