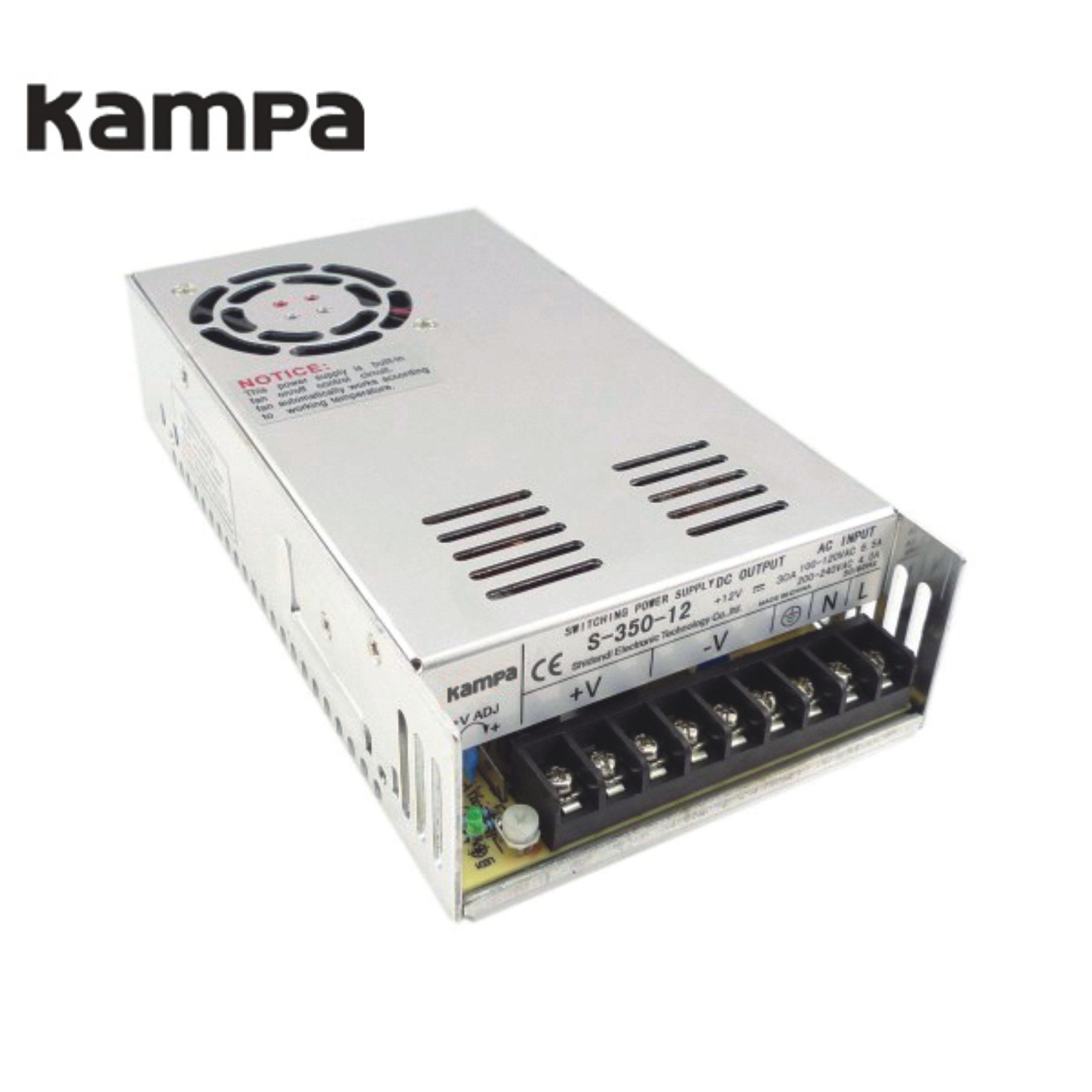

350W 1-48V Adjustable Switch Power Supply

Name: 350W 1-48V Adjustable Switch Power Supply
Brand: all-electronics-online.com
SKU: 818306625
Availability: InStock
Rating: 4.4 (90 reviews)

Price:	US $ 14.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Power supply
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	Kampa

Product Description

300W CE listed switch power supply

1.Technical Data

Model Specification	S-350-5	S-350-12	S-350-24	S-350-48
DC output	5V 50A	12V 29A	24V 14.6A	48V 7.3A
Wave and noise	100mVp-p	75mVp-p	75mVp-p	75mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	73%	74%	81%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	170~264VAC Selected by switch 47 63Hz, 240 370VDC
AC Inrush current	Cold-start current 18A/115V 36A/230V
OverLoad protection	105% 135% hiccup mode, auto-recovery
Setup, rise, hold up time	200ms 50ms 20ms
Withstand voltage	I/P-O/P:1.5KvAC, I/P-FG:1.5KvAC, O/P-FG:0.5Kv 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ
Safety standards	Design refer to GB4943, UL60950, EN60950
EMC standards	Design refer to GB9254, EN55022 classB

Dimension &Weight:

Product size: 215*115*50mm Unit Weight: 1.07kgs
Packing details: 12pcs/ctn/13.5kgs/0.92CUFT
