Cheap Price Ht 5ways Small ABS Plastic Distribution Box

Name: Cheap Price Ht 5ways Small ABS Plastic Distribution Box
Brand: all-electronics-online.com
SKU: 817530695
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 2.6/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	HT-5 ways
Name:	Cheap Price Ht 5ways Small ABS Plastic Distributio
Type:	Lighting
Structure:	Protection
Shell Material:	ABS Plastic
Brand:	Kampa

Product Description

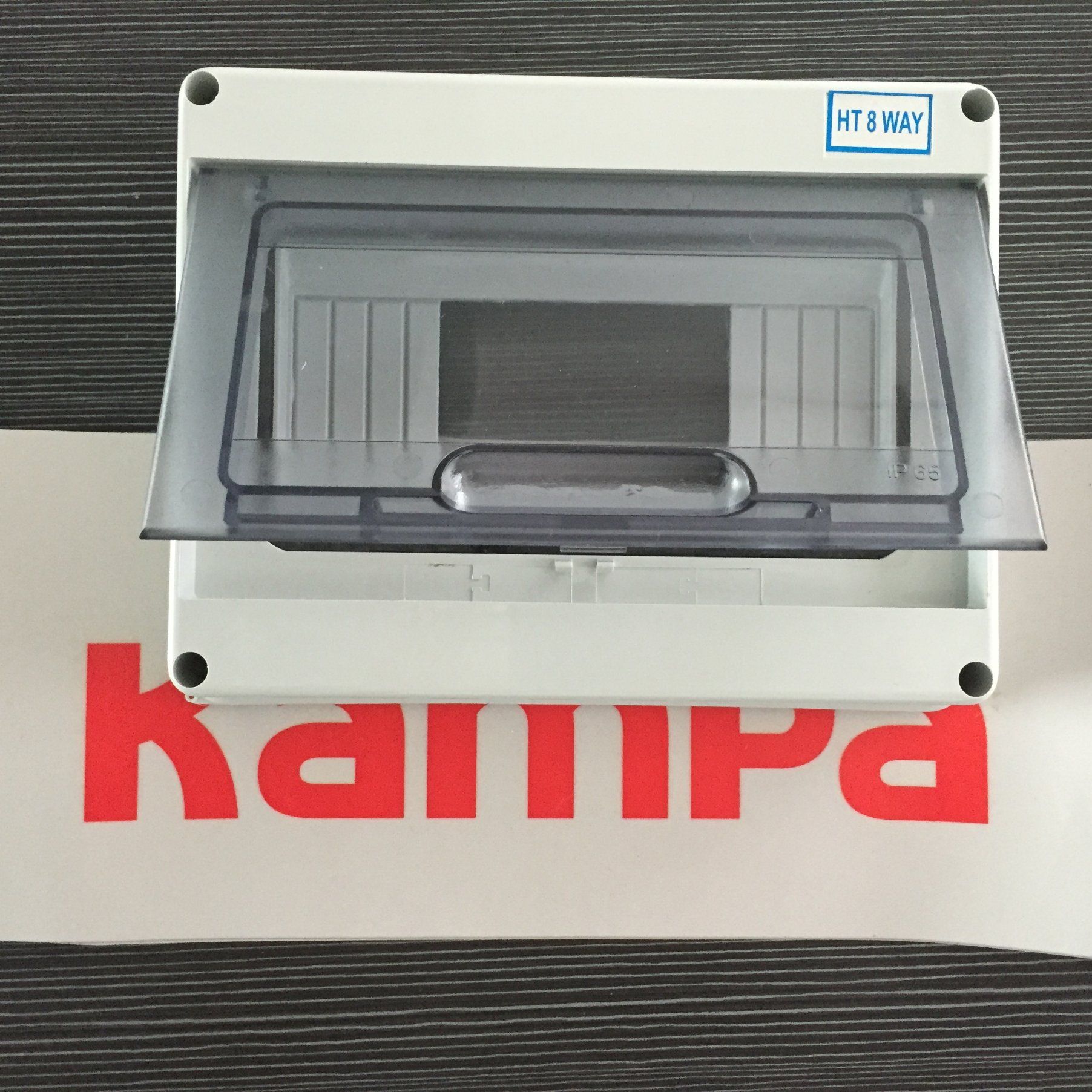

HT 8ways distribution box for circuit breakers

1.Description

1. ) Protection degree: IP55

2. ) Din rail connection according to EN50022

3. ) Rated voltage/rated frequency: 690V/50Hz

4. ) Material: Shell-PC, Body-ABS

5. ) Tested and approved: IP65

6. ) Color: RAL7035

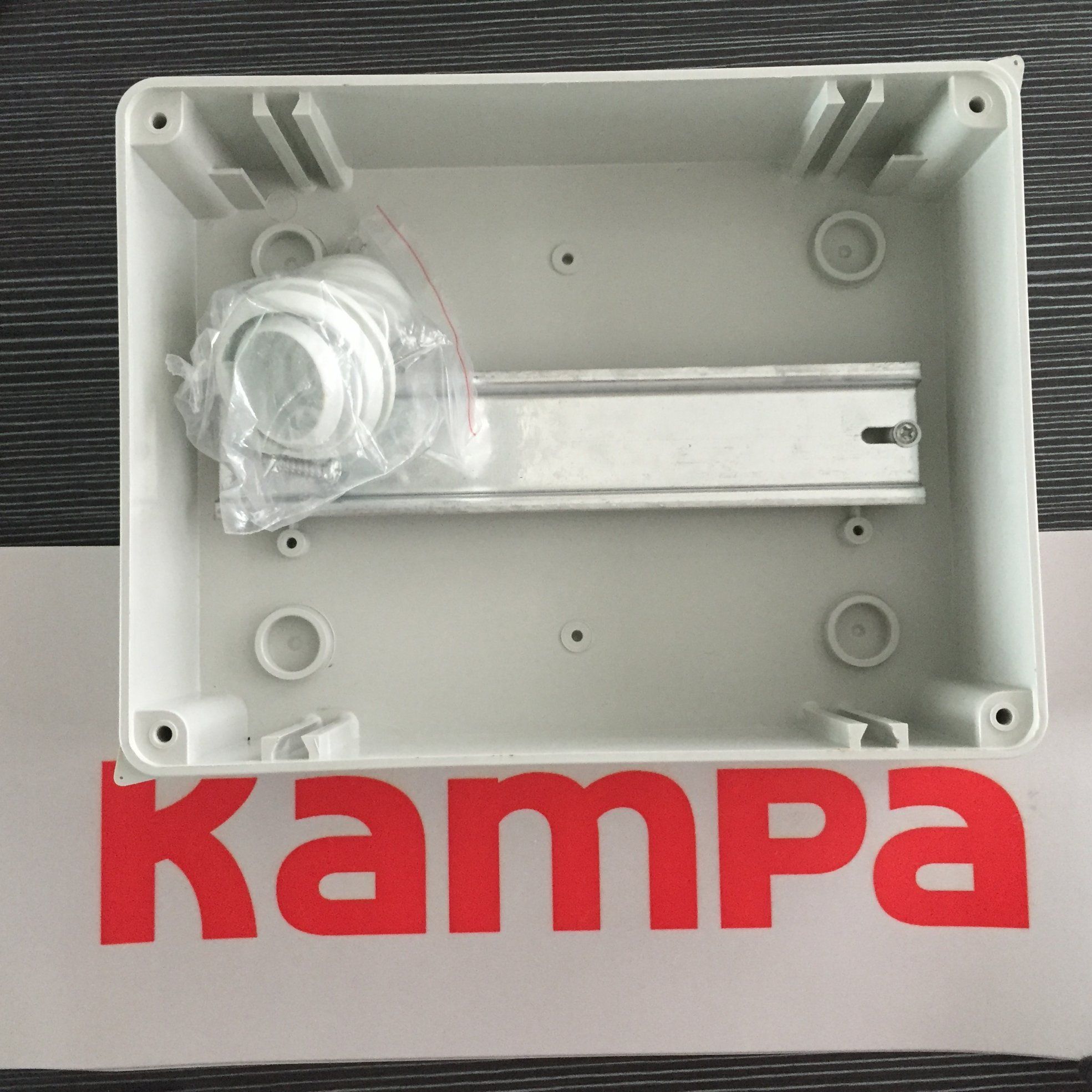

7. ) Supplied with removable earth bar

2. Specification

Model	Way No.	Dimension (mm)
Model	Way No.	L	W	D
HT-5	5	120	160	90
HT-8	8	200	155	93
HT-12	12	253	197	108
HT-15	15	310	200	108
HT-18	18	365	198	108
HT-24	24	275	355	108

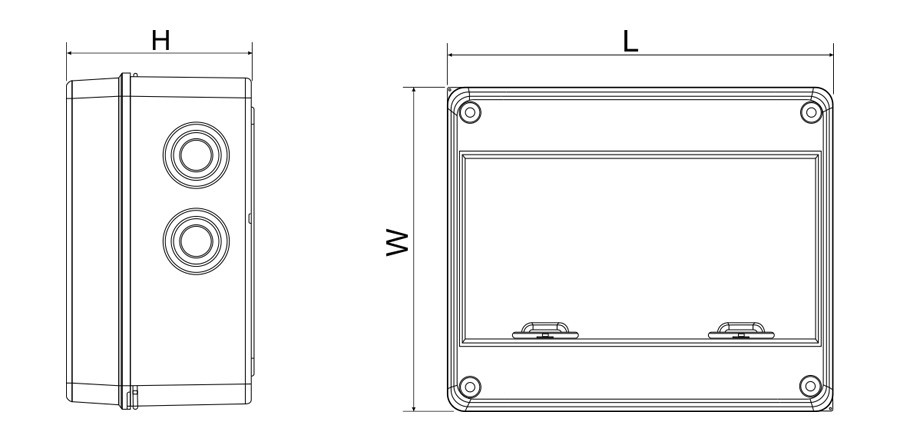

3. Overall and Installation Dimension

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
