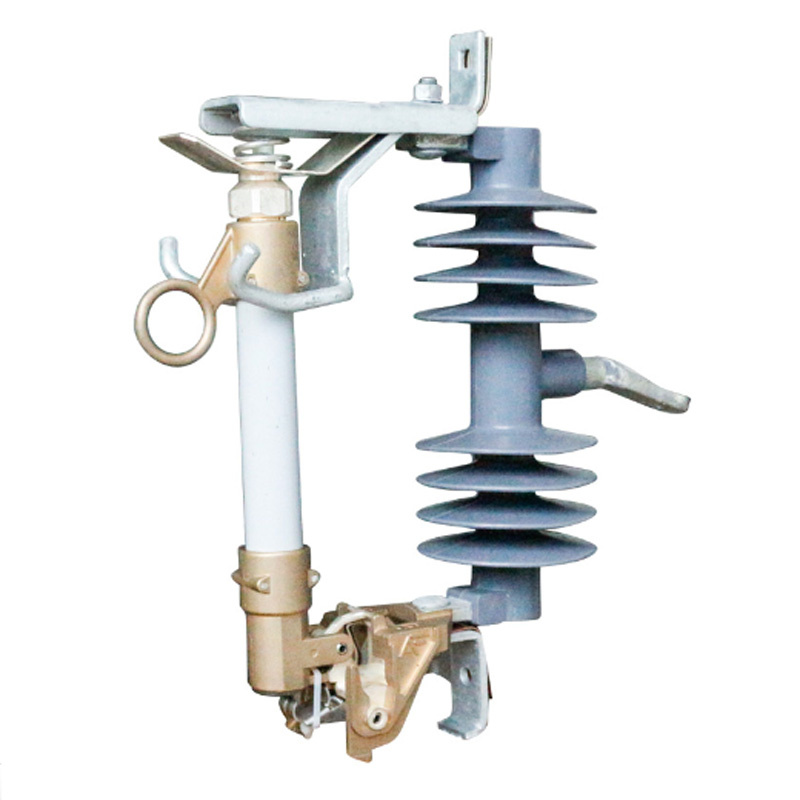

15kv Polymer Drop out Fuse Cutout

Name: 15kv Polymer Drop out Fuse Cutout
Brand: all-electronics-online.com
SKU: 750016385
Availability: InStock
Rating: 4.7 (67 reviews)

Price:	US $ 38/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	RTL-15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage: 15kv:	Rated Current: 100A/200A
Type:	Current Fuse
Breaking Capacity:	High
Usaga:	High Voltage

Product Description

Model Type: RTL-15
Rated Voltage: 15kV
Rated Current: 100A/200A
Breaking Current: 10,000A /12,000A
Impulse Voltage: 110kV
Power Frequency Withstand Voltage: 45kV
Creepage Distance: 245mm
Weight: 3.8kg
Dimension: 45*34*11.5mm

Description/Features:
Outdoor high voltage dropout fuse is mainly used to protect distribution lines and transformers against overload and short-circuit damage. It can also be an overhead disconnection switch with the use of a portable load-break tool.

High voltage fuse cutout performance:
1. Durable and corrosion resistant-Zinc impregnation on surface;
2. Excellent conductivity;
3. Single-phase exhausting.
4. UV radiation resistance

Polymer fuse cutout Advantages:
1. Dropout Fuses installation is simple, people can work with gloves;
2. Solid copper casting ensure opening and closing reliable;
3. Very simple to insert or unload fusion tube;
4. Tripping is reliable, no matter with fault current.

High voltage fuse cutout working environment:
Temperature: - 40°C ~ 50°C
Altitude: 3000m above sea level.
Seismic resistance capability: 8 grade level below
Relative humidity: less than 95%
The maximum wind speed: 34m/s
Polluted level: IV
Installation site: pole-mounted outdoor
Packing: 1 pcs per standard carton or wooden box as required.

Technical Parameter
Model Type:	RTL-15-1	RTL-15-2
Rated Voltage(kV)	15	15
Rated current(A)	100	200
Breaking current(A)	10000	12000
Impulse voltage(kV)	110	110
Power-frequeny withstand voltage(kV)	45	45
Creepage distace(mm)	245	245
Weight(kg)	3.8	3.8
Dimensions(CM)	45×34×11.5	45×34×11.5

We have many different models and types, providing exact model or detailed technical
specification in your inquiry will largely help us finding your a better solution within less time.
Please feel free to contact us.
