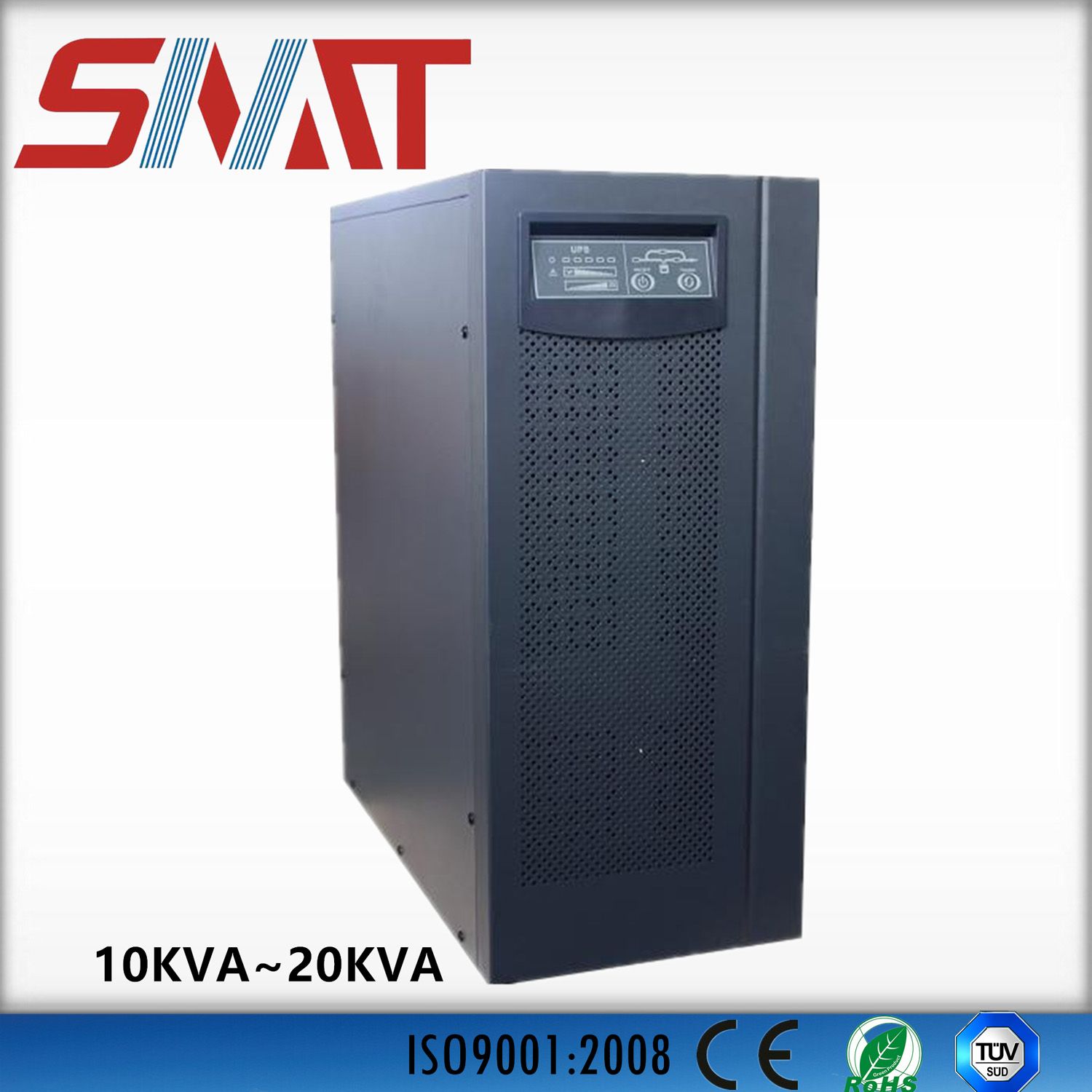

15kVA Online UPS for Power Supply

Prod Model:	SNU-150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Mode:	Double Conversion
Waveform:	Pure Sine Wave
Weight:	130kg
Size:	650*700*1600
Noise:	<60dB (Distance 1m)
OEM/ODM Service:	Provide
Phase:	Single Phase
Type:	On-line
Protection:	Sealed Maintenance Free
Brand:	Snat

Product Description

15KVA Online UPS for power supply

Production Discription:
The SP-11 series power frequency on-line intelligent UPS is designed by SNAT company with high stability and reliability, aim to the China power grid environment and network system for power supply reliability requirements

Feature
The excellent quality can provide safe and reliable comprehensive protection for the loads of the user data centers and industrial control, precision equipment of the medical system

Charactistics:
1-Using DSP, MCU and DDC real-time processing of full digital vector control technology, with perfect protection function and high reliability
2-Double conversion, pure sine wave output on-line, no matter in the electric supply or battery mode, can output pure sine wave power supply of low distortion degree, provides the best of power supply guarantee for the loads equipment of the user

Specification parameter

Model	15KVA
Rated capacity (KW)	12KW
Input voltage	220V±20%
Input DC voltage	192VDC
Output: voltage	220V±1%
frequency stability	50Hz/60Hz±0.5%
overload capacity	130%
waveform	pure sine wave
Alarm	Battery low voltage, buzzer every 1 seconds at a time; The battery stop to discharge, buzzer continuous
LCD display	The output voltage, frequency, battery voltage, output power (%)
Weight	60kg
Size (mm)W*D*H	256*618*626
Battery	Battery low energy automatic shutdown
Overload	(120-150%), 30 seconds, then shuts down automatically
Over temperature	UPS internal temperature >85ºC, automatic protection
Output short-circuit	Current limiting, automatic shutdown, fuse and fuse switch protection

FAQ:
Q1: MOQ
A: MOQ from our company is required 1 unit

Q2: Are you manufacturer or trading company?
A: We are professional manufacturer since 2004

Q3:I need this product and wanna a system for family/industrial/commerical using, can you help me?
A: Yes, we have a professional technology team average 10 years' experience, they can design solar power system in accordance with customers' special requirements.

Q4: How long is your delivery time
A: Within 15 days

Q5:How about your after-sales service?
A:Our quality warranty for 2 years; any parts will be shipped for free during warranty period.
