| Prod Model: |
UPS |
| Output Voltage: |
220*(1+-1%)VAC |
| Switch Time: |
0s |
| Company: |
Manufacturer&Trading |
| Snat/OEM/ODM: |
Accept |
| Warranty: |
12 Months |
| Display: |
LCD |
| Export Market: |
Global |
| Battery Voltage: |
48V/96/192VDC/384VDC |
| Efficiency: |
>95% |
| Weight(Kg): |
165-210 |
| Type: |
On-line |
| Protection: |
Lightning |
| Phase: |
Single Phase to Three Phase |
| Application: |
Electricity Power, Industrial,Commerical,Widely-Us |
| Standby Time: |
S&L |
| Output Capacity: |
Depend |
| Equipment Mode: |
Depend |
| Brand: |
Snat |
Product Description

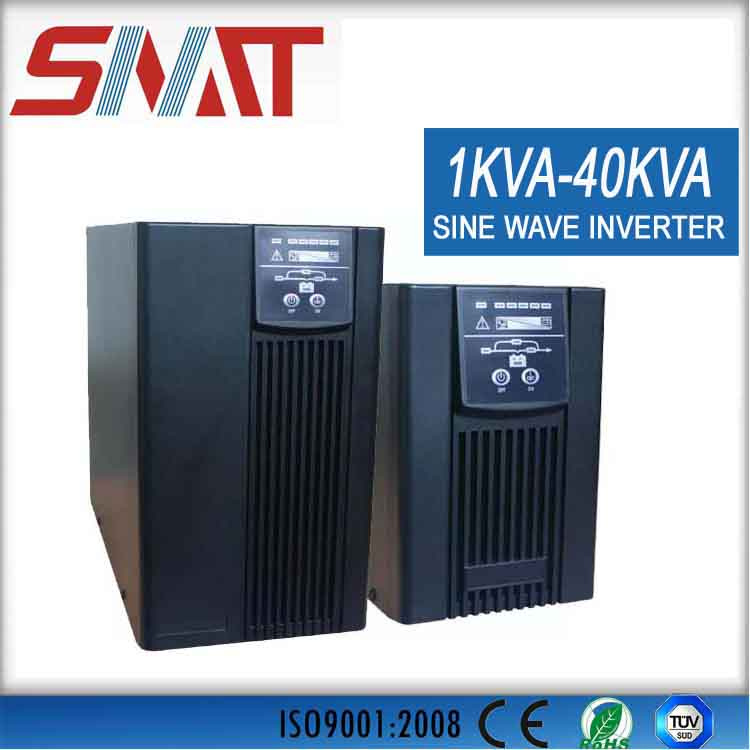

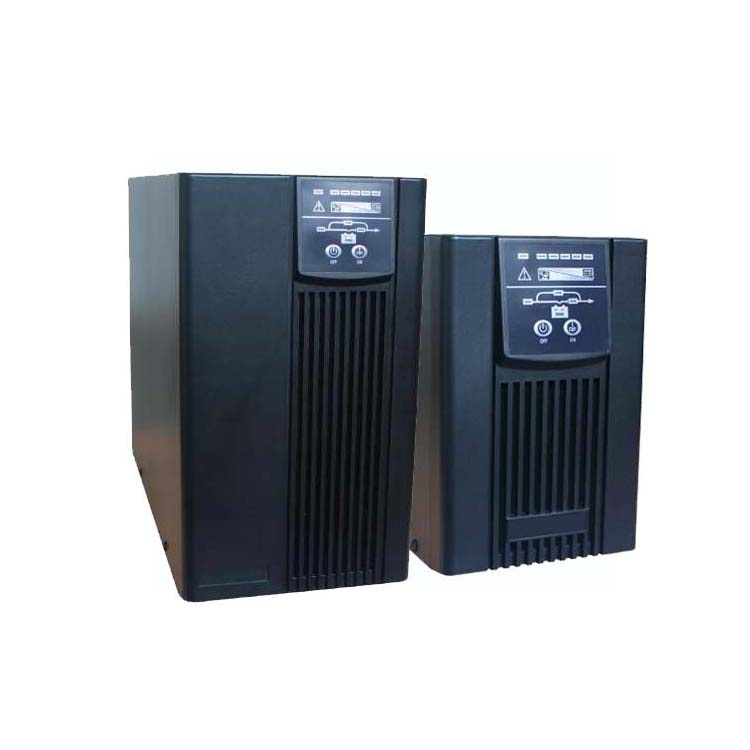

SNAT High Frequency 1kva 3kva 6kva 10kva Online UPS Power System for home use
Product Description--High reliability design
--With strong protection ability to load
--Strong adaptability to the environment
--With high battery optimize performance --With comprehensive and reliable protection
--Network management humanization
Technology Paremeter1. Singly into single out technology parameter:
1KVA~20KVA Singly into single out technology parameter |
| Type | 1KVA | 2KVA | 3KVA | 6KVA | 10KVA | 15KVA | 20KVA |
| Rated Power(KW) | 0.8KW | 1.6KW | 2.4KW | 4.8KW | 8KW | 12KW | 16KW |
| Input Voltage | Two single-phase + ground wire 220V±25% |
| Battery voltage | 48VDC | 96/192VDC | 192/384VDC |
| Noise | ≤52dB(within 1m) | ≤60dB(within 1m) |
| Size(W*D*Hmm) | 256×618×626 | 370×690×763 |
| Weight(Kg) | 30 | 40 | 45 | 60 | 105 | 130 | 160 |
2. Three phases single out technology parameter
10KVA~60KVA Three phases single out technology parameter |
| Type | 10KVA | 15KVA | 20KVA | 30KVA | 40KVA | 50KVA | 60KVA |
| Rated Capacity(KW) | 8KW | 12KW | 16KW | 24KW | 32KW | 40KW | 48KW |
| Input Voltage | Four three-phases + ground wire,380V±25% |
| Battery Voltage | 384VDC |
| Noise | ≤60dB(within 1m) | ≤65dB(within 1m) |
| Size(W*D*Hmm) | 370×690×763 | 650×700×1600 |
| Weight(Kg) | 165 | 190 | 210 | 400 | 450 | 530 | 620 |
General Technology Parapeter| General Technology Parapeter |
| Input | Frequency | 50Hz/60Hz±10% |
| Power factor | ≥80% |
| Output | Voltage | 220V±1% |
| Voltage regulation | stabilization±1%,dynamic±2%,(0-100% load change <20ms) |
| Frequency stability | 50Hz/60Hz±0.5% |
| Frequency reverse rate | <1Hz/s |
| Harmonic distortion | Linear loads <3%( full loaded), Rectifier total harmonic<5% |
| Overload capacity | 130% |
| Waveform | Pure sine wave |
| Efficiency | Input AC to Output AC | >95% |
| Switching time | Switch between mains with battery | 0 |
| Switch between mains with bypass mode | < 4ms |
| Battery | Type | Sealed acid for free maintenance |
| Charging time | 8 hours charge to 90% after completely discharge |
| Protective function | Battery | Automaticly cut off with lower power; No fuse switch protection |
| Overload | 120~150% switch to bypass mode after 3s and recover automaticly |
| Over temperature | Internal temperature >85ºC switch to bypass mode automaticly |
| Output short cirtuit | Automaticly cut off with lower power; fuse & no fuse switch protection |
| UPS abnormal | Switch to by bypass mode automaticly and power by mains supply |
| LCD display | Input/Output voltage; Frequency; Battery voltage; Output load |
| Environment | Temperature | -10~50ºC |
| Relative humidity | 20%~93% No condensation |
| Altitude | < 1000m |
Shipping & Payment

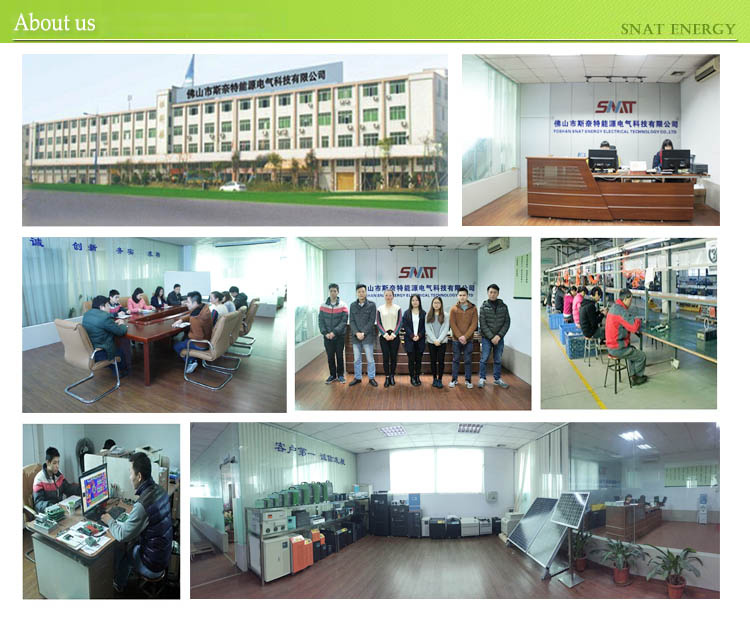

Company Information
Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our warranty commitment, parts will be shipped for free during warranty period. We have professional technical team and are focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients.
Certifications
Advantages
A. More than 10 years technical experience and advanced equipmentOur solar products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality ServiceAny inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.
