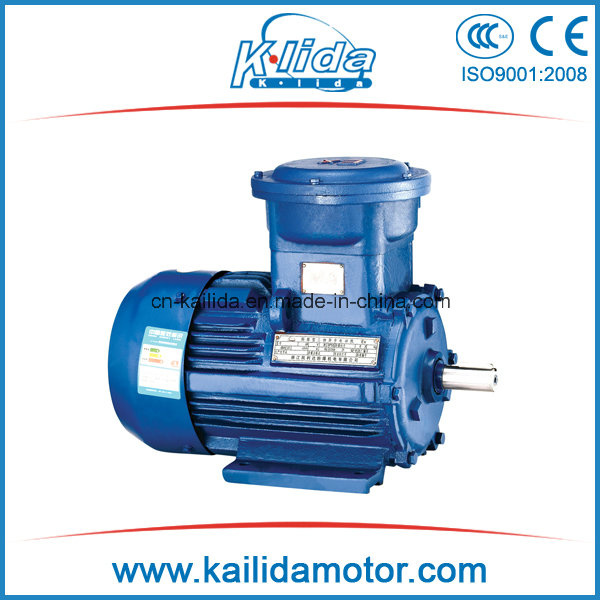

15kw/20HP Explosion-Proof Three Phase Induction Motor

Name: 15kw/20HP Explosion-Proof Three Phase Induction Motor
Brand: all-electronics-online.com
SKU: 690076232
Availability: InStock
Rating: 4.9 (25 reviews)

Price:	US $ 648-678/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	YB2-200L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Kailida or OEM Brand
Model:	Yb2-200L-8-15kw
Type:	Asynchronous Motor
Frequency:	50Hz,60Hz or 50/60Hz
Protect Feature:	Totally Enclosed
Phase:	Three Phase
Place Of Origin:	Zhejiang, China (Mainland)
Efficiency:	Ie1, Ie2
Motor:	AC Motor
Number Of Stator:	Three-Phase
Function:	Control
Certification:	Atex
Brand:	Klida

Product Description

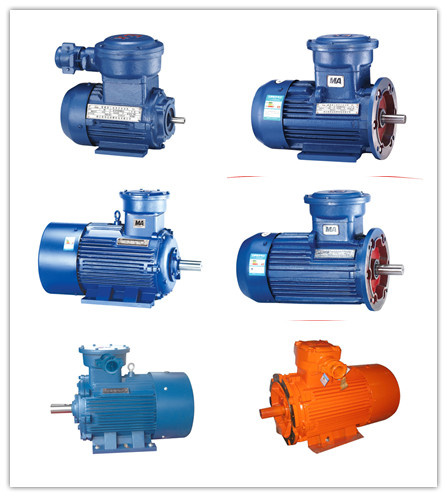

Explosion-proof Three phase induction motor

Motor Features:

1, Frame Size: 63-355 MM;

2, Rated Output: 0.12-315 KW or 0.10-420 HP;

3, Rated Voltage: 220/380 V or to be your request;

4, Rated Frequency: 50 Hz,60 Hz,50 Hz / 60 Hz;

5, Poles: 2 / 4 / 6 / 8 / 10;

6, Speed: 585 -2980 r/min

7, Ambient Temperature: -15°C-40°C

8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;

9, Mounting: B3; B35; B34; B14; B5; V1;

10, Current: 1.5-465 A (AC);

11, Duty: continuous (S1);

12, Insulation Class: F;

13, Protection Class: IP54;

14, Cooling Method: ICO 141 Standards;

15, Altitude: No more than 1,000 meters above sea level;

16, Packing: 1pc in a Strong plywood case

Kailida motors advantage:

Prompt Quotation.

Competitive Price

Guaranteed Quality

Timely Delivery.

100% Tested.

Sincere and Professional Service.

Outstanding Finishing Surface.

Strictly and Perfect Management is guaranteed for Production.

Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.

Have Rich Experience and Strong ability to Develop New Products.

Have Ability to Design the Products Based on Your Original Samples.

Our promise:

Prompt Reply to Your Inquiry within 24 Hs during Working Days.

Long Life Time Products

Products One Year Guarantee from the Date of Sales.

Professional Service in Handling Your Goods in Daily Communications

Deliver Time about 15-20 days for Normal Models.

Deliver Time about 30 days for New Models upon Receiving the New Samples.

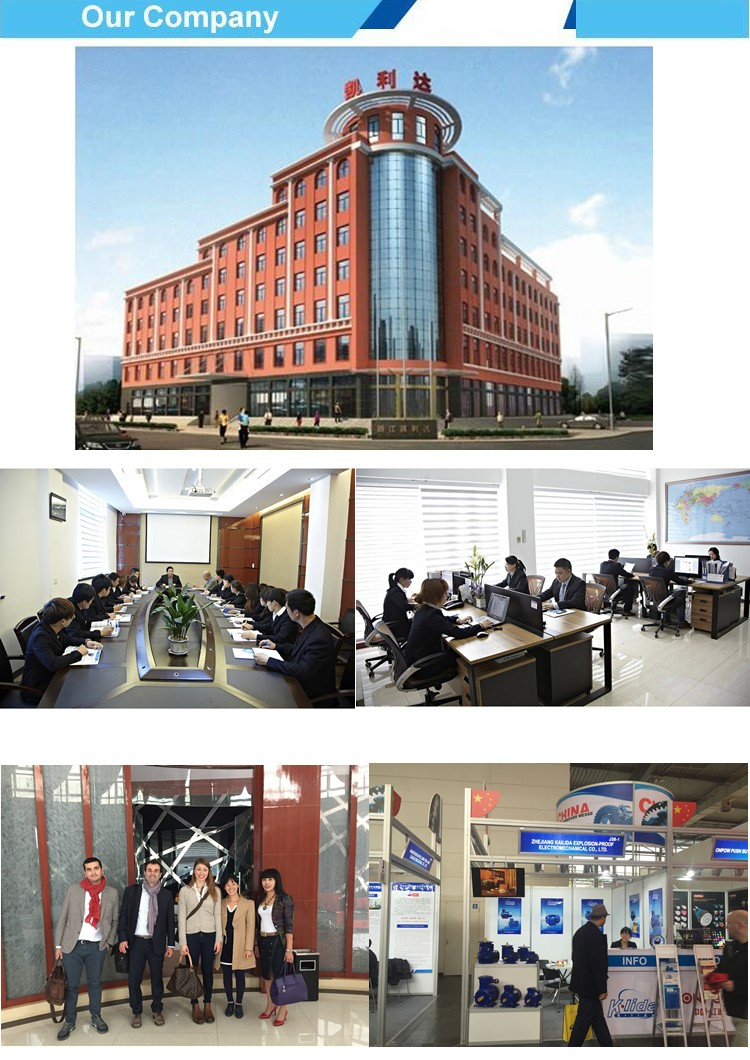

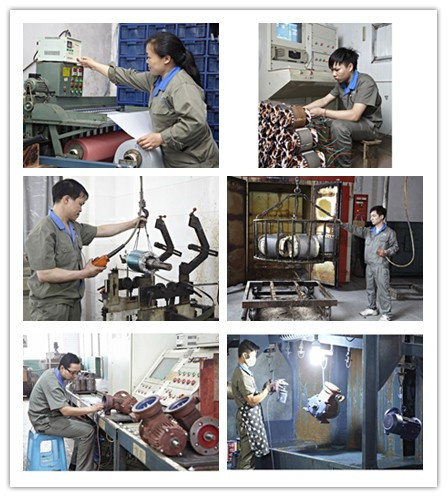

Factory Office, Facilities, Equipments and Workshop Overview:

Model	Output	Speed	Current	EFF	COS	Weight	Size
	kw/hp	r/min	A	%		kg	mm
YB-200L-8	15/20	730	33.7	89	0.76	280	350438565

Zhejiang Kailida Explosion-Proof Electromechanical Co., Ltd. is an advanced manufacturer integrating design, production, sales and service. We specialize in developing & manufacturing electric motor, explosion-proof motors. We make progress and improvement constantly with complete quality checking facilities and strict quality controlling feedback system.

Main products include YB2, YBFseries explosion-proof motor. YS, Y, Y2, Y3, YX3, YSF series three phase electric motor, YC, YY, YL series single phase motor. We have passed ISO9001: 2000 quality management system, CCC, EXDI, EXDII BT4, MA and CE certification. Our products have been distributed to Europe, Middle East, southeast Asia, Africa, and so on.

We believe "best quality, highest reputation, important clients". We offer high quality products with competitive price and best service. We sincerely hope to establish steady cooperation with customers all of the world based on mutual benefits.
