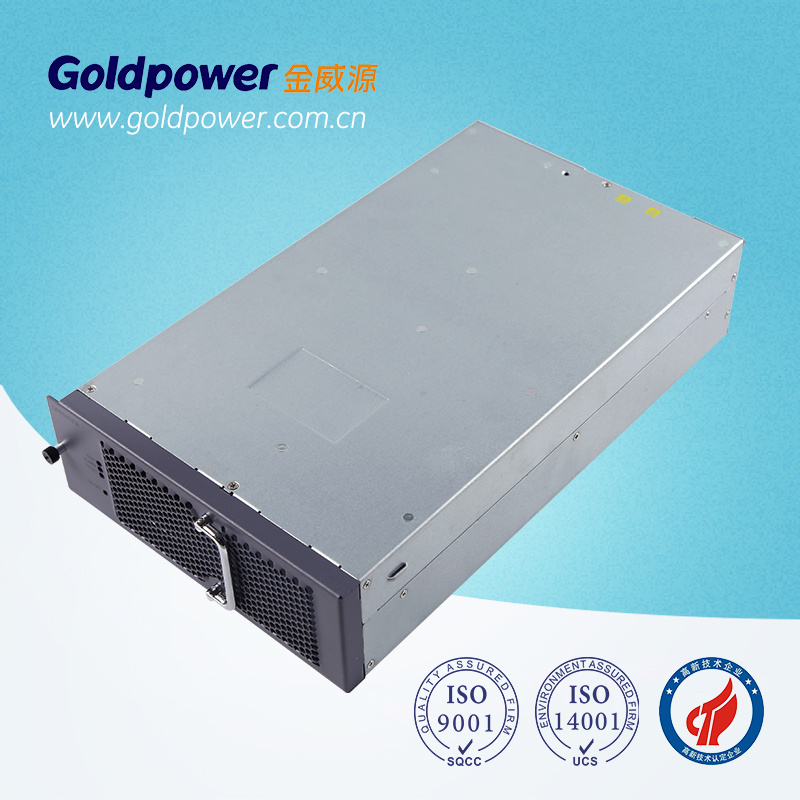

15kw 500V High Efficiency Electric Vehicle DC Charging Module Power Supply

Name: 15kw 500V High Efficiency Electric Vehicle DC Charging Module Power Supply
Brand: all-electronics-online.com
SKU: 726675832
Availability: InStock
Rating: 4.3 (78 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPR50030A
Efficiency:	≥96.4%
Operating Temperature:	-40~+65ºC
Communication Port:	Can
Power Factor:	≥0.995
Output Voltage:	200~500VDC
Max. Output Current:	30A
Voltage Regulation:	≤±0.5%
Current Regulation:	≤±0.5%
Thd:	≤3%
Weight:	≤8.8kg
Output Type:	Single
Warranty:	2 Years
Output Power:	15kw
Input Voltage:	265∼437VAC
Brand:	Goldpower

Product Description

15KW 500V 30A High Efficiency Electric Vehicle Charger is high power density DC charging rectifier module power supply

Features:

Ultra high power density, less parallel modules for more reliability.
Soft-switching technology, high efficiency up to 95%, full digital DSP control, total harmonic current less than 5%.
Leading APFC tech (active power factor correction), power factor > 0.995
Automatic intelligent current sharing without monitoring, supports intelligent hibernation.
Ultra wide output range, works with the bus, car and other vehicles, featuring BMS auxiliary low-voltage power output;
Supports hot plugging without damage, a module can be replaced within 1min.
Complete isolation and failure protection between input and output terminal, output end equipped with backflow-prevention device.
Compact size, customized design, compatible with multiple protocols, applicable for integrated / split or other types of charger.

Applications:
1. EV Charging equipment manufacturers, Charging service providers.
2. Third party charging pile / station operation and maintenance services providers

Specification:

Model	GPR50030A
Power	15KW
Input voltage	265∼437Vac
Input frequency	45~65Hz
Output voltage	200~500Vdc
Max. output current	30A
Power factor	≥0.995
Voltage regulation	≤±0.5%
Current regulation	≤±0.5%
THD	≤3%
Full load efficiency	≥96.4%
Current sharing	≤±5%
MTBF	>400,000 hours
Ripple(Vp-p)	≤±0.5%
Hold-on time	Softing-staring 8S
Operating temperature	-40~+65ºC
Acoustic Noise	≤55dB
Communication Port	CAN/RS485
Protection class	IP32
Lightning protection	5KA
Dimensions	229x 83.8x 379.7(mm)
Weight	≤8.8KG
Protection	Input over/ under voltage, phase-lacking, output over voltage,short circuit,over temperature, failure isolation
