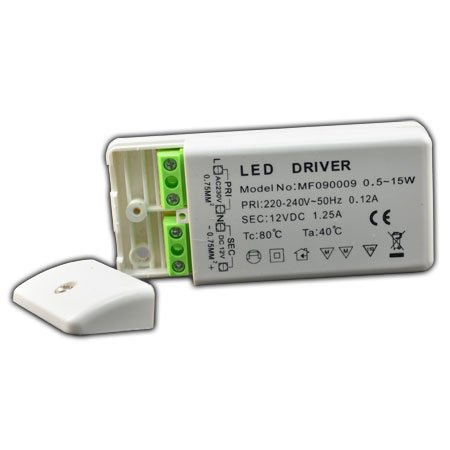

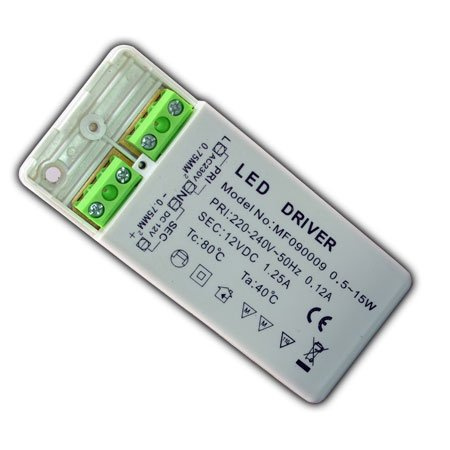

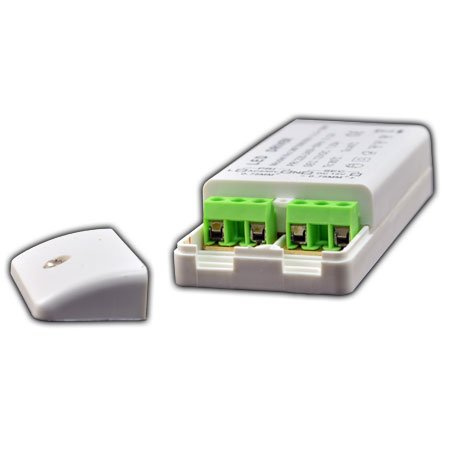

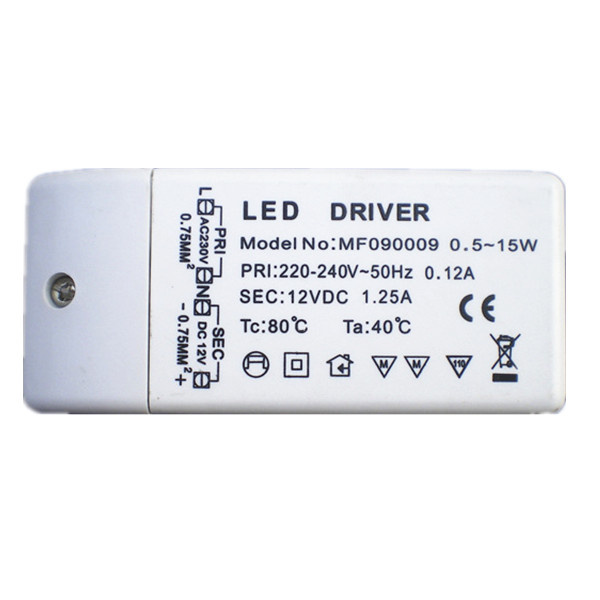

15W LED Light Transformer DC12V Driver for G4

Name: 15W LED Light Transformer DC12V Driver for G4
Brand: all-electronics-online.com
SKU: 766354835
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	US $ 2.25-2.95/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T15W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	92 X 42 X 20mm
IP Degree:	IP20
Dimmable:	No
Protection:	Short Circuit
Workspace:	0.5W-15W
Output Voltage:	12V
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Mode:	Customed
Modulation System:	Triac
Brand:	No Brand

Product Description

15W LED Light Transformer DC12V Driver for G4

Specifications:

Model No.	MF09009
Input Voltage Range	100-240V/AC
AC Frequency	48-62Hz
Input current	0.2Amax
Output Mode	Constant voltage
On /Load Voltage	12V/24V
Output Current	1000mA 600mA
No Load/Voltage	12V 24V
Output Power	12W Max.
Power Factor	>0.95
Efficiency	>80%
Dimensions	914119(mm)
Weight	69g

Environmental Specifications :
Operating Temperature:-30~45°C
Storage Temperature : -40~+70°C
Thermal Dissipation : Nature
Relative Humidity:5~95%
Isolation Voltage:In/Out 3000VAC
Vibration:5-55Hz/2g,30 Mimutes
Life Time:50000Hours,at TC max

Conformity & Standards:
EN55022
EMI                                    EN55015 Class B
Safety                                 EN60598
Electromageric                     EN61547,ENV5024
Immunity                             EN61000-4-2/3/4/6/8/11
Harmonic                             EN61000-3-2
Current Emissons EN61000-3-3

Product Features:
Selectable constant current output.
(Custom on request)
Full-ioslated,delivering up to 15W of power.
Short circuit,over current and over voltage protection. Up to 80% efficient.
Fireproof environmental protection PC plastic cover 2   years quality warranty

Established in 2013, Shenzhen Yochan Co., Ltd. Mainly focuses on selling LED shoes and LED Power supply. The company is located in Shenzhen, Guangdong Province. Our products have passed ISO9001 Certification, European CE Certification and RoHS Certification.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

Our products have been exported to more than 20 countries, such as America, Canada, the Netherlands, India, Britain, New Zealand and other countries and regions, which are very popular among our overseas guests.

We sincerely invite all interested companies to contact us for more information.

We are looking forward to cooperating with you and to be your good partner here in the near future!
