24V 1A 24W Constant Current LED Driver for LED Lights

Name: 24V 1A 24W Constant Current LED Driver for LED Lights
Brand: all-electronics-online.com
SKU: 766377655
Availability: InStock
Rating: 4.7 (93 reviews)

Price:	US $ 3.05-4.25/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	T24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	954423mm
IP Degree:	IP67
Protection:	Short Circuit
Workspace:	24W
Material:	PC
Output Current:	2A
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Triac
Power Supply Mode:	Customed
Modulation System:	Triac
Brand:	No Brand

Product Description

24V 1A 24W Constant Current LED Driver for led lights

Features:

1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.3 years warranty

Specifications:

Model	ZF-120A-1202000
DC output voltage	24V
Output voltage error	±1%
Rated output current	1
Output current range	0-1A
Wave and noise	100mVp-p
Inlet stability	±0.5%
Load stability	±0.5%
DC output power	24W
Efficiency	86%
AC input voltage range	85-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Over load protection	105%~150% rated output power
	Protection:Hiccup mode
Over voltage protection	24V
	Protection:Shut down output voltage
short circuit protection	Protection:Hiccup mode
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10~+60°C, 20~90%RH
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	954423mm
Weight	80g
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved

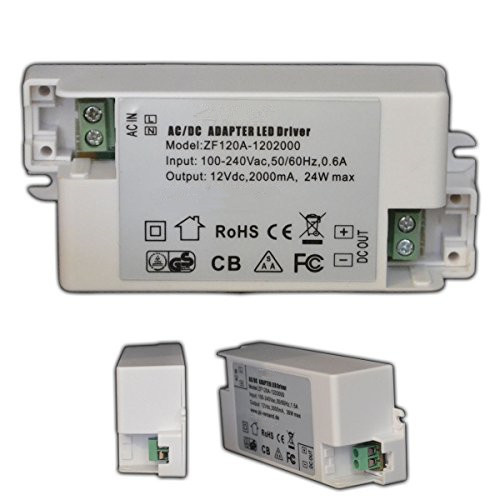

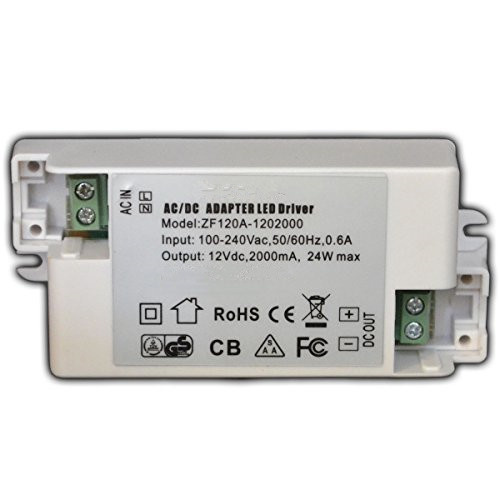

Pictures:

Certification:CE&RoHS, Short circuit/Overload protection

Quality guarantee:

All the driver have automatic protection of overload, short circuit, temperature,etc.

Guarantee:1.The warranty period is 2 years.

2.During the time ,if the product have any question ,we can change the same to you.

We can design the product according to your requirement.

Packing:

Bubble bag ,inner box,and carton etc
