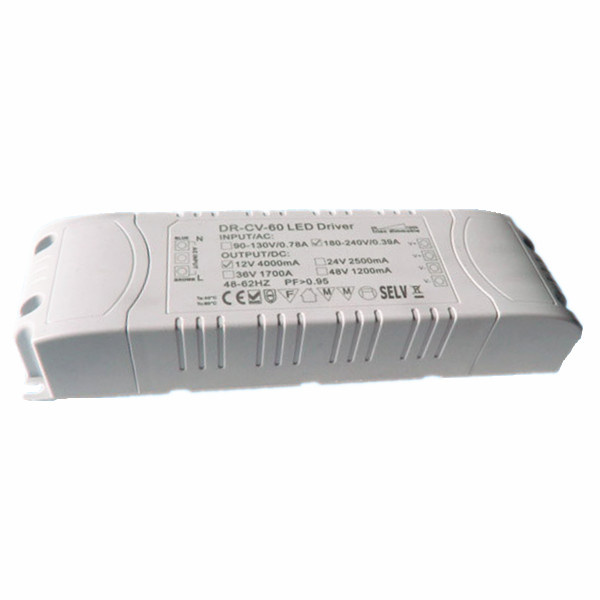

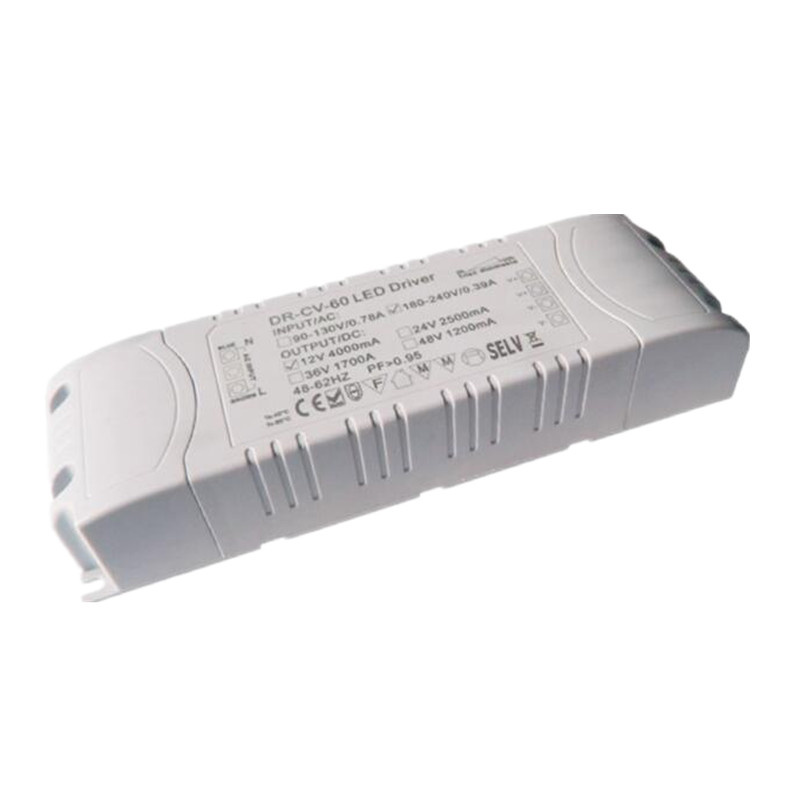

Type 60W Single Output Dimming LED Driver with Constant Current

Name: Type 60W Single Output Dimming LED Driver with Constant Current
Brand: all-electronics-online.com
SKU: 765796785
Availability: InStock
Rating: 5 (117 reviews)

Price:	US $ 10.05-14.5/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PV-CC-60
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimming Range:	5%-100%
IP Degree:	IP20
Efficiency:	85%
Protection:	Short Circuit/Over Load/Over Voltage
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Brand:	No Brand

Product Description

Type 60W Single Output Dimming LED Driver with Constant Current

Operating characteristic:
One channel dimmable led driver fit for LED module.
Compliant with SELV standards with output voltage≤60DC.
Efficientcy>85%
Soft start and low ripple current output.
Fit for class I protection lighting fixture.
Have multiple protection for output exception such as open circuit,short circuit,over load etc.
0/1-10V&PWM interface to be compatible with large-scale dimming system.
One channel 60W constant current 0/1-10V&PWM led driver series
Dimming range: 5%~100%
Flicker free
Convenient for lighting design due to its plat case
Approved by over-temperature protection certification so it can be fit for class F lighting fixture
Compliant with international standards such as safety,EMI,anti-interference etc.

Technical parameters

Model No.	PV-CC-60
Input Voltage	100-240V/AC
AC Frequency	48-62Hz
Power Factor	PF>0.95
Over-voltage protection	110%-150% rates output voltage
Voltage resistance	I/P-O/P:3KVAC/1min
Start,rise,retention time	1500ms,80ms,20ms(230VAC full load)
Operating temperature	-25~+55ºC
Relative humidity	5~95%
Dimension	170×50 ×31mm

Model and operating parameter

Constant Current
Model	Dimming Principle	Input Voltage (V/AC)	Output Power (W)	Output Current (mA)±5%	Output Voltage (V/DC)	No load (Vmax)	PF	Efficientcy	Notes
PV-CC-60	0/1-10V PWM	110&230	60	900	33-66	80	>0.95	80-86%	Output current can be customized with different needs
				1200	25-50	60
				1500	20-40	48
				1800	17-34	40
Constant Voltage
PV-CV-40	0/1-10V PWM	110&230	60	4000	12V±5%	12V±5%	>0.95	80-86%
				2500	24V±5%	24V±5%
				1200	48V±5%	48V±5%

Conformity & Standards

  EN 55015
  EN 61000-3-2 Classic
  EN 61000-3-3
  EN 61000-4-2,3,4,5,6,8,11
  EN 60598
