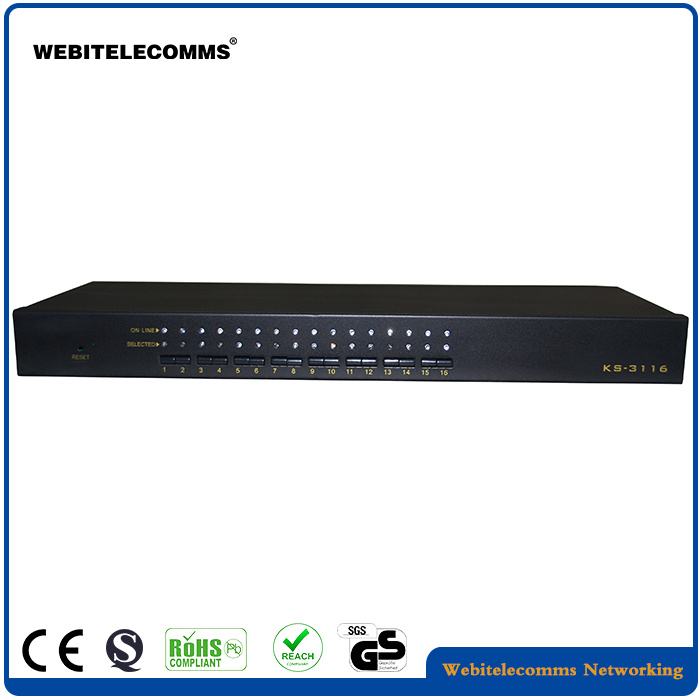

16 Port Cat5e Kvm Console
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
2/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
WB-KS3116 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
DC9V 1000mA |
| Housing: |
Metal |
| Port: |
16 Cat5e Port |
| Video Resolution: |
1600 X 900 |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
CE |
| Condition: |
New |
Product Description
There are two convenient methods to access any computer connected to installation:
16-port PS/2/USB Cat5 UTP/KVM (keyboard, video and mouse)
Switches are control units that allow access and control for up to16 pcs of computers from a single
PS/2/USB keyboard, PS/2/USB mouse and monitor console
Key Features
Controls 16 pcs of computers with local operation
Both the console and the computer are compatible with PS/2/USB mouse and keyboard
Computer selection via front panel switches and OSD
LED display for easy status monitoring
Auto-scan mode for monitoring all computers
Superior video quality
Easy installation, no software required
Hot-pluggable, add or remove computers for maintenance without powering down the switch
Supports Windows series, Solaris and more
| Type | WB-KS3116 |
| Computer connections | 16 |
| CPU port selection | Front panel switches/OSD menu |
| Console connectors | Keyboard | 1 x PS/2, 1 x USB female |
| Mouse | 1 x PS/2, 1 x USB female |
| Video | 1 x HDB-15 female (blue)
Remote |
Remote
Connection | 1 x RJ45 |
Dongle
connectors | Keyboard | 1 x PS/2 male (purple) | 1 x USB male |
| Mouse | 1 x PS/2 male (green) |
| Video | 16 x RJ45 (female) |
| LEDs | On Line | 16 |
| Selected | 16 |
| Video resolution | 1600 x 900 |
| Power | DC5V, 400MA |
| Operating temperature | -10˚C~50˚C |
| Storage temperature | -20˚C~60˚C |
| Housing | Metal |
| Weight | 0.85 Kg |
| Dimensions(L x W x H ) | 432 x 155 x 44 mm |
SAMPLE order: Shipped by International Express such as above
| Shipment | Note |
| Express | Door to door, very convenient, don't need to clearance or pick-up |
| By air | Airport to airport, you need to do the customs clearance and pick up the goods at your local airport |
| By sea | Port to port and you need to do the customs clearance and pick-up the goods at your local port |
Sample Service: We will collect some sample fees, will refund after you place order.
Package design support: We have brand team for your customized design.
Company Information
WEBITELECOMMS was built in 2003 and was awarded the rights of import and export in 2010.
Products range: 19" racks and cabinets, outdoor cabinets, structured cabling, fiber optic , PDU, KVM and Fiber media converter
Audit Report: CE,ROHS,ISO,SGS.
Showroom: About 100 square meters showroom.
Welcome to WEBITELECOMMS, believe that our professional team and service will help you stay step ahead in the market.
FAQ
1) What is your Payment term?
---T/T, L/C, Western Union could be accepted.
2) What is your Trade term?
---EXW, FOB, CNF, CIF is also ok.
3) What is the Loading Port?
--- Ningbo or Shanghai port.
4) What is your MOQ?
---MOQ of most our products is 5pcs, different items will be different. We have indicated the MOQ for each item in the price list.
5) What is your Product Warranty?
---As Europe market, we have CE RoHS and other international safety standard for our products.
---As other market, international safety standard certificate is also be provided.
Order info.| Model NO. | Description |
| WB-KS-3104 | Rack mountable KVM switch, 4 Cat5e port |
| WB-KS-3108 | Rack mountable KVM switch, 8 Cat5e port |
| WB-KS-3116 | Rack mountable KVM switch, 16 Cat5e port |
| WB-KI-3104 | Rack mountable KVM switch, 4 Cat5e port with remote control |
| WB-KI-3108 | Rack mountable KVM switch, 8 Cat5e port with remote control |
| WB-KI-3116 | Rack mountable KVM switch, 16 Cat5e port with remote control |
| WB-AS-3104 | Rack mountable KVM switch, 4 VGA port |
| WB-AS-3108 | Rack mountable KVM switch, 8 VGA port |
| WB-AS-3116 | Rack mountable KVM switch, 16 VGA port |
| WB-AI-3104 | Rack mountable KVM switch, 4 VGA port with remote control |
| WB-AI-3108 | Rack mountable KVM switch, 8 VGA port with remote control |
| WB-AI-3116 | Rack mountable KVM switch, 16 VGA port with remote control |
