Rail Mount Type HDMI Kvm Extender

Product Description

Products description:

KVM Extender over   IP, WB-KVM-HE120, it's easily to connect an HDMI source into a   transmitter.

Then connect this Sender to your Local Area Network switch   or over a single UPT CAT5e/6 cable.

Video and KVM can all be shared anywhere over a LAN with just a receiver unit and display.

Features:

Use single UTP cable (CAT5e/6) to substitute HDMI cable
 to extend longer transmission distance (up to 120 meters)

Support resolution up to 1080P@60Hz

Support up to 2.25Gbps data rate

Support 8KV ESD protection

By transmitting keyboard and mouse data via LAN, it is easy to control PC or other media players remotely.

Via LAN router or network switcher, it is available to send data
 from one transmitter to several receivers.

Specification

Highlight:

 1. Three Extend Modes:  One to One over CAT5e/6, One to Many over IP/LAN, Network Mode

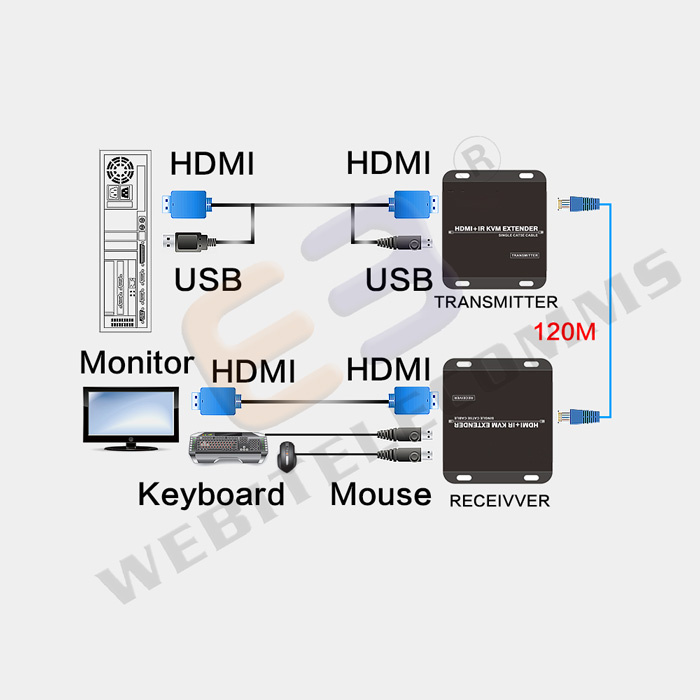

Mode 1: One transmitter to one receiver over CAT5e/6 (120 Meter/400ft) or Switcher/Router (wired or wireless router)

Mode 2: One transmitter to many receivers over IP/LAN

Mode 3: One transmitter to one receivers over Network

2. Secure Remote Access

Real hardware solution to remotely access a computer, over your existing cat5e/6 network. Share video, audio, USB, RS-232, IR, and more.

3. Farther signal extension on a budget

Advanced HDMI Technology enables low cost CAT5e/6 twist pair cable to transmit HD multimedia content. This reduces installation costs, and enables easy termination, deployment and testing.

Application:

Our devices offers solutions for noise, space and security concerns, data   center control, information distribution, conference room presentation, school and corporate training environments.

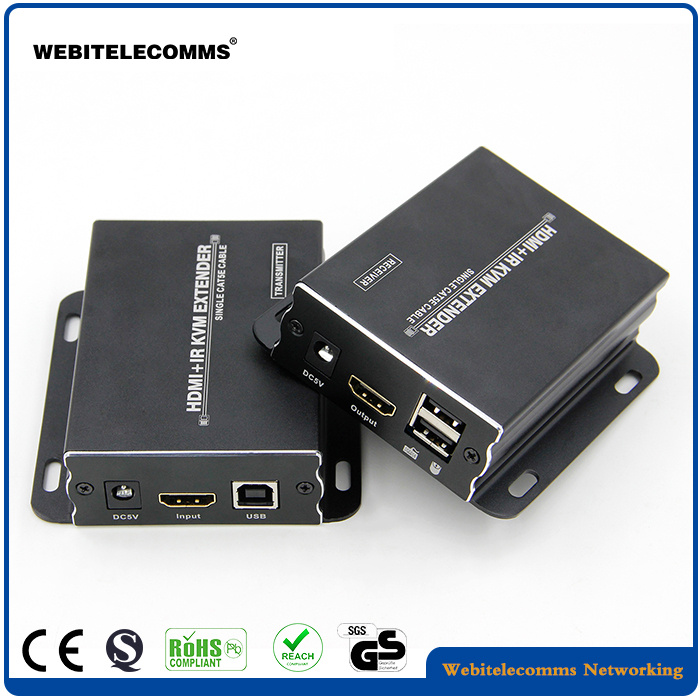

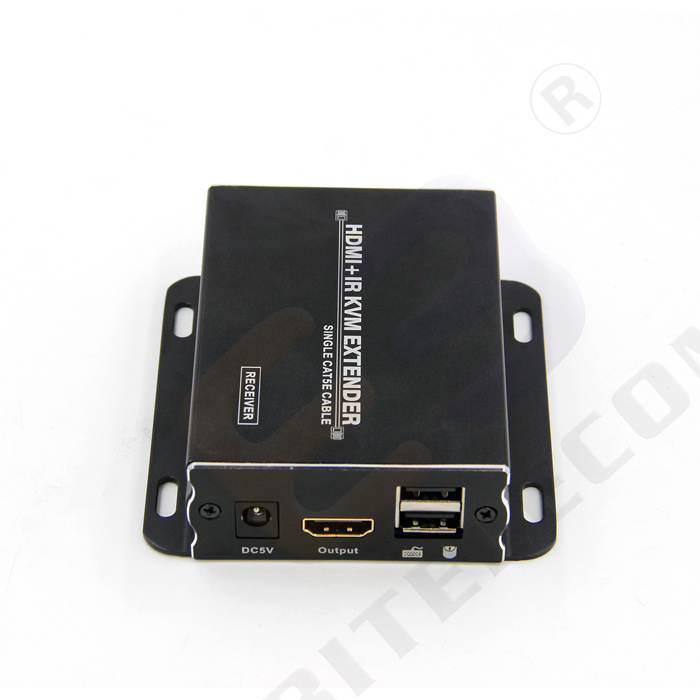

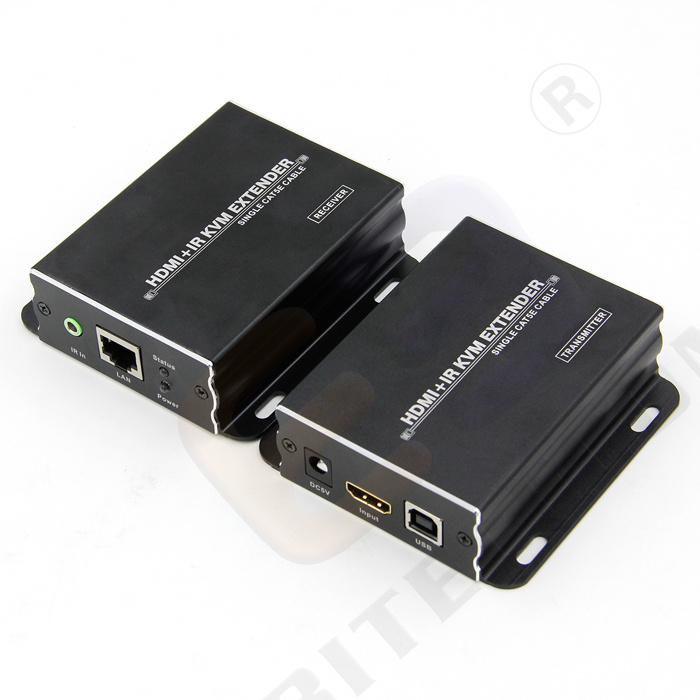

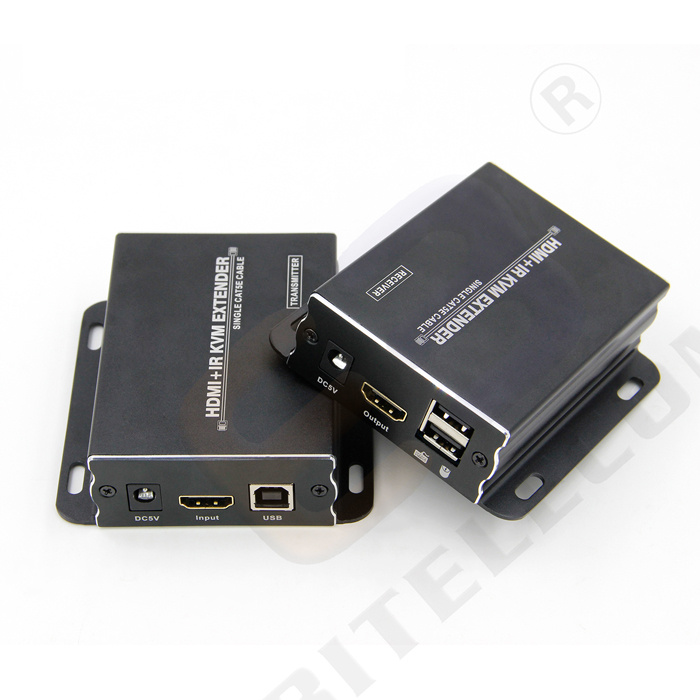

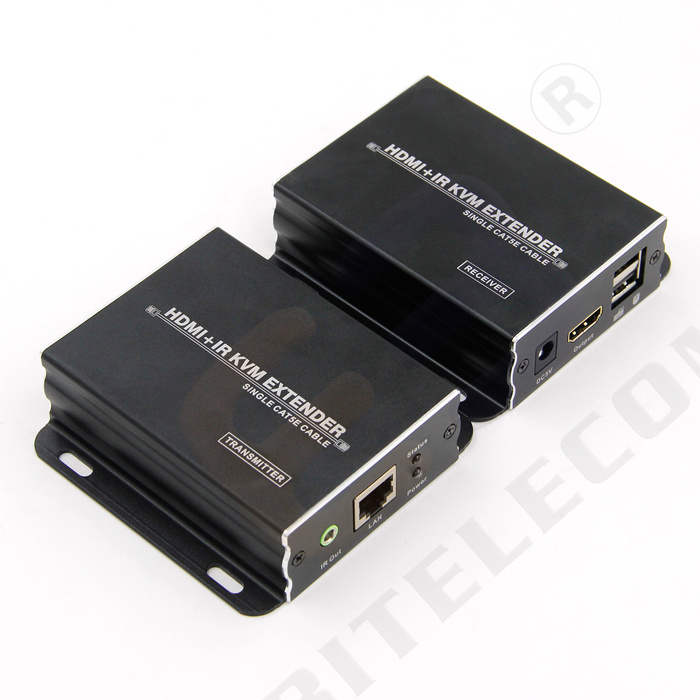

Sample Show







Package Included

1xKVM Extender

2xPower Supply 5VDC 1A

1xIR receiver

1xIR sender

1xUser Manual
