| Prod Model: |
WB-AS21P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Western Europe |
| Housing: |
Metal |
| PS/2: |
2 Port |
| Female VGA: |
2 Port |
| Male VGA: |
1 Port |
| Superior Video: |
1920X1440 Max. |
| Usage: |
Server |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
The AS-21P can control 2 servers via a single console and allows users to switch between computers via the buttons on the front panel of the switch or the hot-key configuration on the keyboard. It is the simplest and most convenient solution for multi-computer management. The sturdy, durable and small enclosure design is its important feature.
Features:
One PS/2 console controls 2 computers/ servers;
Keyboard and mouse simulation function built-in;
Easy Installation, no software required;
OS Compatibility: DOS, Windows series; Linux, Unix, etc.
Easy installation without any other additional software;
connect with computer via cable directly,Auto Scan function to monitor computer operation
Superior video quality- up to 1920 x 1440;
support VGA, SVGA, XGA with DDC2B function;
Computer selection via front panel push buttons and hot keys.
Supports Microsoft Intelli Mouse, Logitech Mouse Man, First Mouse and IBM Scroll point Mouse.
Hot plug gable- to add or remove computers without powering down;
Compact, Sturdy, Durable Metal Housing. | Type | AS-21P |
| Computer connections | 2 |
| Switches | Hotkey, push button |
| LEDs | Power | 1 |
Connections |
Keyboard | Console port 1*6pin mini-DIN female (PS/2) |
| PC port 2*6pin mini-DIN female (PS/2) |
Mouse | Console port 1*6pin mini-DIN female (PS/2) |
| PC port 2*6pin mini-DIN female (PS/2) |
Monitor | Console port 1*6pin mini-DIN female (PS/2) |
| PC port 2*6pin mini-DIN female (PS/2) |
Simulation | Keyboard | PS/2 |
| Mouse | PS/2 |
| Video resolution | 1920*1440 (Max) DDC2B |
| Scan Interval | 3 seconds |
| Operating Temp. | 5-40 |
| Storage Temp. | -20-60 |
| Housing | metal |
| weight | 0.57kg |
| Dimensions ( L x W x H ) | 132*92*42mm |
Order information
| Model NO. | Description |
| WB-CS-21UA | Plastic case desktop series KVM , 2 VGA port |
| WB-CS-41UA | Plastic case desktop series KVM , 4 VGA port |
| WB-CS-21CA | Plastic case desktop series KVM , 2 Cat5e port |
| WB-CS-41CA | Plastic case desktop series KVM , 4 Cat5e port |
| WB-AS-21P | Metal case desktop series KVM, 2 PS/2 port , 2 VGA port |
| WB-AS-21UA | Metal case desktop series KVM, 2 USB port with audio , 2 VGA port |
| WB-AS-41P | Metal case desktop series KVM, 4 PS/2 port , 4 VGA port |
| WB-AS-41UA | Metal case desktop series KVM, 4 USB port with audio , 4 VGA port |
| WB-LS-21CS | Plastic case 2 ports cable KVM,support PS/2 |
| WB-LS-21CA | Plastic case 2 ports cable KVM,support PS/2 with audio |
| WB-LS-21JS | Plastic case 2 ports cable KVM, support USB |
| WB-LS-21JA | Plastic case 2 ports cable KVM,support USB with audio |
| WB-LS-41JA | Plastic case 4 ports cable KVM,support USB with audio |
| WB-LS-41CU | Plastic case 4 ports cable KVM (combo), support USB&PS.2 with audio |

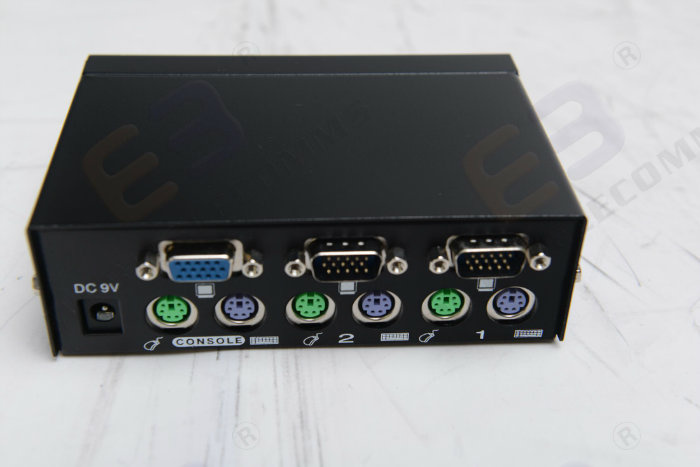

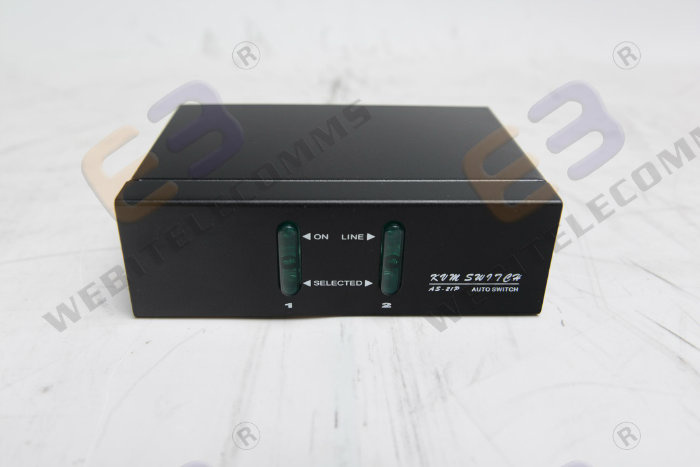

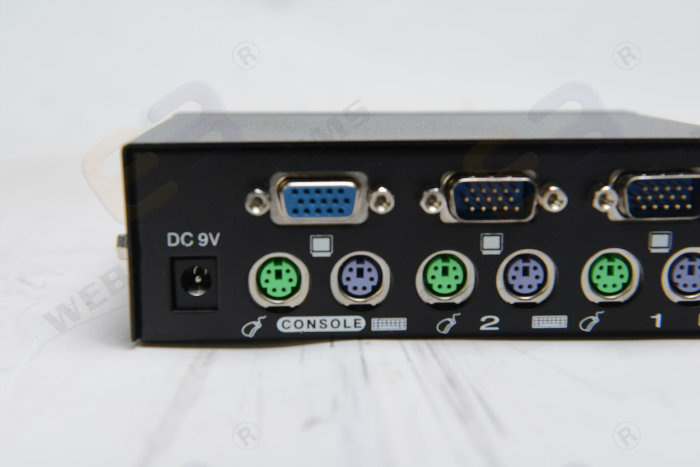

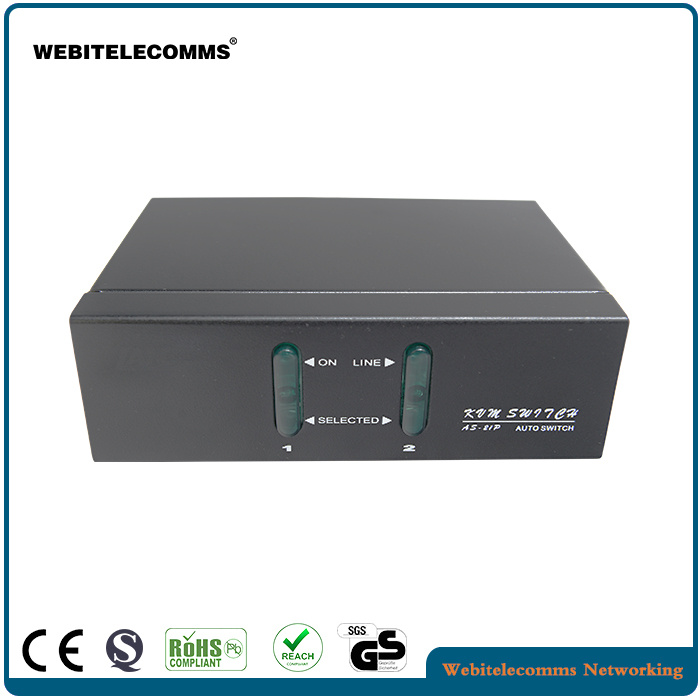

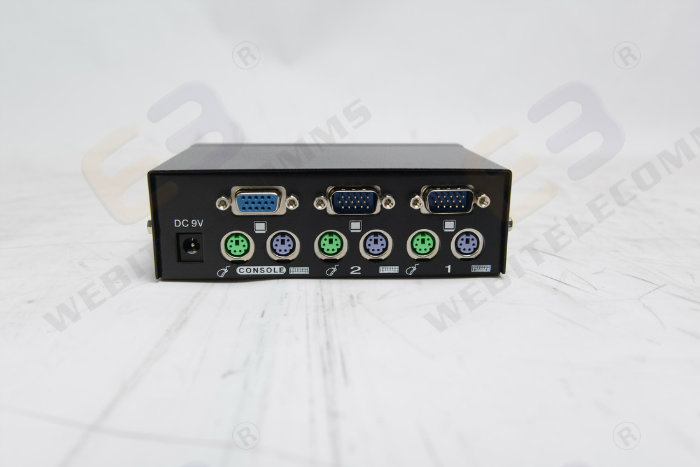

SAMPLE photos
