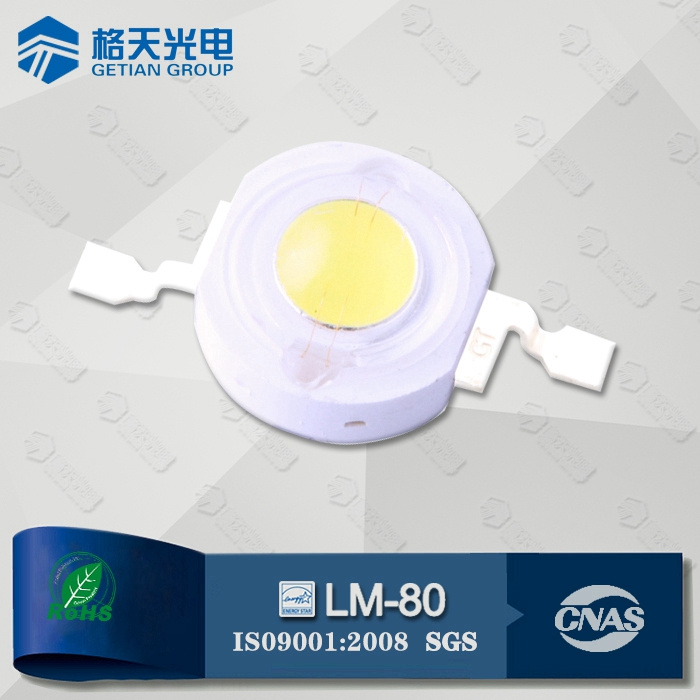

160-170lm Cool White 5500k 1W LED Diode

Name: 160-170lm Cool White 5500k 1W LED Diode
Brand: all-electronics-online.com
SKU: 807320195
Availability: InStock
Rating: 4.6 (112 reviews)

Price:	US $ 0.19-0.195/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GT-P02W64101160
Power:	1W
Volt:	2.8-3.4V
Current:	350-750mA
CRI:	70
CCT:	6000-6500k
Color:	Cool White
Lumen:	160-170lm
Chip Brand:	Bridgelux

Product Description

160-170lm Cool White 5500k 1w Led Diode

Parameters of 1W high power LED

Power	1-3W	Viewing Angle	120
Forward Voltage	2.8-3.4V	Storage Temperature	0-60°C
Forward Current	350-750mA	Operating Temperature	-40-60°C
Luminous Flux	160-170LM	Junction Temperature	115°C
CCT	6000-6500K	Thermal Resistance	12°C/W
CRI	Ra70	Certificate	LM-80, CE, RoHS

Other high power LED available

Power	1-3W
Luminous Flux	100-110LM; 110-120LM; 120-130LM; 130-140LM; 140-150LM; 150-160LM; 160-170LM.
CCT	2600-2900K; 2900-3200K; 4000-4500K; 5500-6000K; 6000-6500K; 7000-9000K; 9000-15000K.
CRI	>70; >80; >90.
Beam Angle	120°; 90°; 60°.
Heatsink	Star PCB available

Shenzhen Getian Opto-electronics Col., Ltd is a top 10 high power led manufacturer & innovator since 2005 (especially for outdoor lighting application & premium commercial lighting ) and we also have a full range of color leds 265-850nm for various specific application). We have a great edge in customization service for our customers --- Special COB Design & PCB Design & Reflow soldering; etc.

Main product range: (Most of our LED light source products are LM-80 certified)

High Power LED 1-500W
COB LED 3-400W
Flip Chip LED 1-500W
Color LEDs 265-850nm (RGBW)
SMD LED 3030/3535
LED Drivers 6-200W
UFO Modudar High Bay, Linear High Bay
Floodlight, Streetlight

More information about LED products, please contact Jenny Liao who worked over 4 years in LED industry.

Mob: +86 132 4475 1602

Shenzhen Getian Opto-electronics Co., Ltd. is a manufacturer specializing in LED components aiming to a global presence. Since established in 2005, GeTian has delivered the LED components products, technological innovations, and unparalleled customer trust level around the domestic and oversea marketing for over years.

Total investment is 50, 000, 000 yuan and production area is over 5, 000 square meters. Getian has 500 employees and more than 70 are R&D staffs. We have equipped full-automatic production machines for all the key manufacturing processes and full set testing machines. The annual capacity of high power LED is over 60, 000, 000PCS.

With more than 7 years' outstanding growth, Getian has become a group corporation which has high power LED, SMD LED and LED driver as the core business units. Shell fittings of LED, mold design and manufacturing are also well developed to have Getian be able to provide more comprehensive and professional service all over the world.

Getian insist that quality is one of core competence. All of the main products are listed with CE, RoHS, SGS certification and will pass in-house robust reliability testing before leaving factory. Besides, more than 12 patents have been obtained in LED design and manufacturing field. We successfully got ISO9001: 2008 certification and started running the ERP and BPC system in 2009. With all these outstanding performance, Getian achieved series of great honors, such as "Top 50 LED Manufacturer in China", "Hi-Tech. Enterprise", "Shenzhen Hi-Tech. Enterprise", and "Shanghai Expo Exhibition Enterprise", etc.

Warmly welcome all fields of friends to visit our company and negotiate trade.
