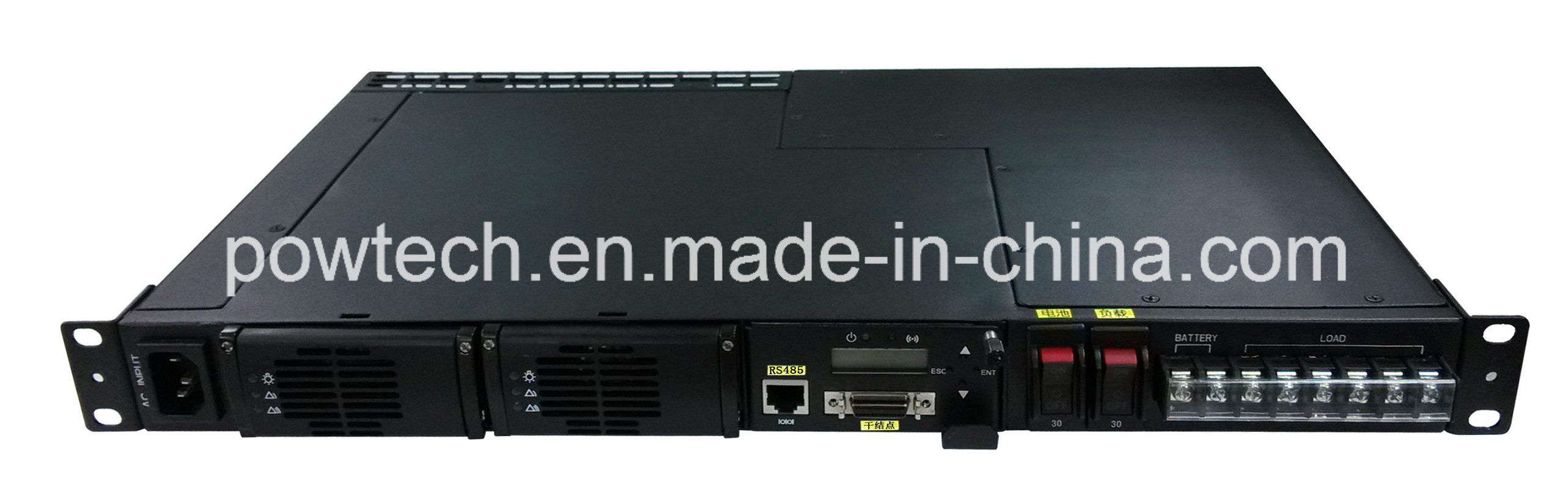

1600W Switching Mode Power Supply
Price: |
US $ 200-300/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
SPS30-48/MR4815 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Install: |
Rack Mount |
High: |
1u |
Capacity: |
1600W |
Output Type: |
Single |
Input Voltage: |
220V |
Voltage Regulating Mode: |
Width Modulation Type |
Connection Mode: |
Parallel Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Warranty: |
1 Year |
Power Supplying System: |
Terminal Power Distribution Equipment |
Certification: |
RoHS |
Brand: |
Jetpower |
Output Power: |
1600W |
Product Description
Switching Power Supply
Capacity:1600W
SWITCH POWER SUPPLY
1. AC Input: 176~300Vac
2. DC output: 42/53.5/58 Vdc
3. Output power: 1600W
4. Output current: 30A
5. LCD display
Main Features:
1U rectifier power shelf up to 1600W
Wide Input Voltage Range 90Vac-300Vac
Wide Temperature Range -40 to +75C
High Power Density
High Efficiency
High Power Factor, Low THD
Active Current Share
Advanced Battery Management, LVD Control
Alarm and Protection Function
Intelligent interface RS232/RS485
Hot Plug-in
Front/Rear Access installation
Application
Wireless Networks
Access and Optical Network Equipment
Enterprise Networks
Configuration:
2 rectifiers + 1 controller + 1 dc distirubtion
Standards:
UL60950 /EN60950
EMC EN55022
RoHS
1 Input |
Input Voltage | 176~300Vac full load |
90-176Vac Derating load |
Frequency | 45 Hz-65 Hz |
Inrush Current (maximum) | 38A |
Power Factor | ≥0.99 |
Efficiency | ≥91% |
2 Output |
Vo range | 42/53.5/58 (Vdc) |
Vo Regulation | -0.5/+0.5 (%) |
Output Current | 75A |
Current Share | -5/+5 (%) |
3 Environment |
Operating Temperature | -40 ºC - 75 ºC |
Humidity | 10% - 90% Non Condensing |
Cooling | Forced Air |
4 Configuration |
Controller | SC Controller |
Rectifier | CR2000-48 |
DC Distribution | 1*75A Load 1*75A Battery 1*LVD control 4*Alarm Relay Output(programmable) |
5 Other information |
Dimension | 44.3*482.6*250mm(front access) 44.3*482.6*280mm(rear access) |
Standards | Safety UL60950/EN60950 EMI EN55022 Environment RoHs Compliant |
Communication | RS232/RS485 |
Rectifier No | 2 |
Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.
The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.
As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.
Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.
Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
