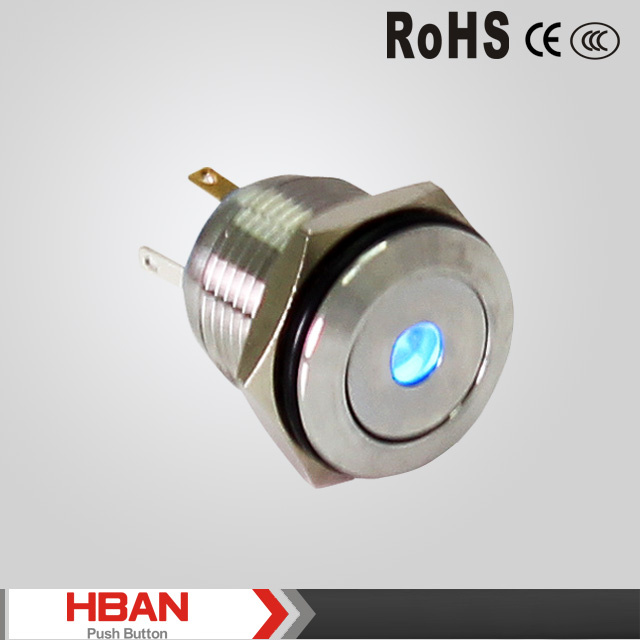

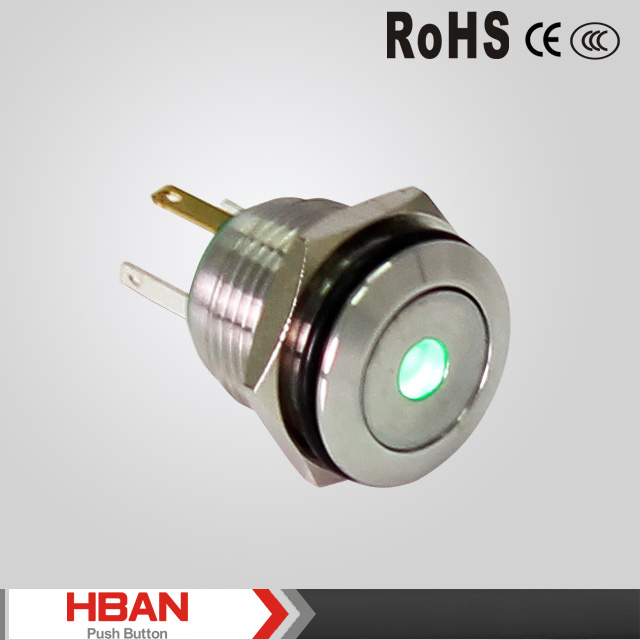

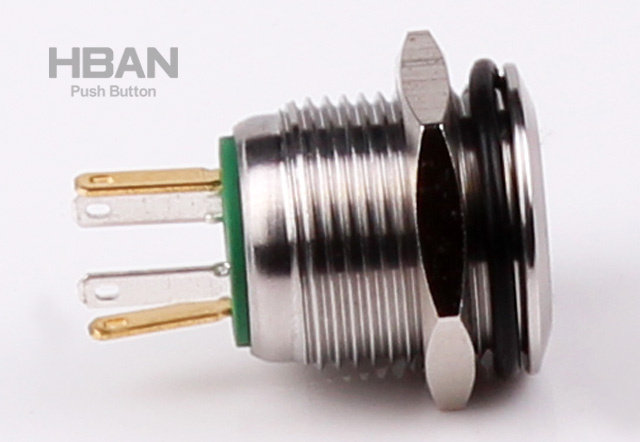

16mm 1no DOT-Illuminated LED Light Switch

Name: 16mm 1no DOT-Illuminated LED Light Switch
Brand: all-electronics-online.com
SKU: 790905155
Availability: InStock
Rating: 4.7 (149 reviews)

Price:	US $ 0.1-10/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HBGQ16F-10D/S
LED Color:	Red, Green, Yellow, Orange, White, Blue
Diameter:	16mm
Voltage:	2V, 6V, 12V, 24V, 36V, 110V, 220V,250V
Termianl:	Pin Terminal
IP:	IP65, Ik08
Crust Material:	Stainless Steel
Type:	Composite
Usage:	Reset Button
Kind:	Single-pole on-off Switch
Brand:	Hban

Product Description

HBGQ16F-10D/S 16mm metal signal lamp

Item NO.: HBGQ16F-10D/S
Mounting Hole Size:dia.16mm
Protection Degree:IP65,IK08
Lamp Color:Red / Green / Yellow / Orange / Blue / White
CE ROHS CERTIFICATE
The Crust Material:Stainless steel/Nickel-plated brass
Push Button Switch

Packing Details:

We pack 40 pieces diameter 16mm signal lamp into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

About Us:

Yueqing Dahe Electric Co.,Ltd is a professional manufacturer of push button
switch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries.

We can customize push button switch according to your specification, If you have any requirement or question,please feel free to contact us.

Tel : 0086-577-62708000 Fax : 0086-577-62708007

TUV UL CE ROHS HBGQ16F series metal lighting switch

Mounting Hole Size:Φ16mm
Switch Rating:2A/36VDC
Operation Type: Momentary/Latching
The Front Shape: Flat round
The Crust Material:Stainless steel /Nickel-plated Brass
Protection Degree:IP67,IK10
Mechanical lifetime:1,000,000
Pin /ScrewTerminal

Specifications		HBGQ16F-10D/J/S	HBGQ16F-10/S	HBGQ16F-10D/S
Terminal Type		Pin Terminal(1.8x0.4mm)	Screw Terminal	Screw Terminal
Contact Resistance		≤50m Ω	≤50m Ω	≤50m Ω
Insulation Resistance		≥1000M Ω	≥1000 M Ω	≥1000 M Ω
Dielectric Strength		2000V AC	2000V AC	2000V AC
Operating Temperature		-20°C ~ +55 °C	-20°C ~ +55 °C	-20°C ~ +55 °C
Mechanical Life		>1,000,000 times	>1,000,000 times	>1,000,000 times
Electrical Life		>200,000 times	>200,000 times	>200,000 times
Panel Thickness		1~10m m	1~10m m	1~10m m
Torque		5~14Nm	5~14Nm	5~14Nm
Protection Degree		IP67,IK10	IP67,IK10	IP67,IK10
Material	Shade	PC	PC	PC
	Button	PC	PC	PC
	Case	stainless steel	Nickel-plated Brass	stainless steel
	Base	PBT	PBT	PBT
	ROHS	Can be made to order	Can be made to order	Can be made to order

Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.

Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.

After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.

At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
