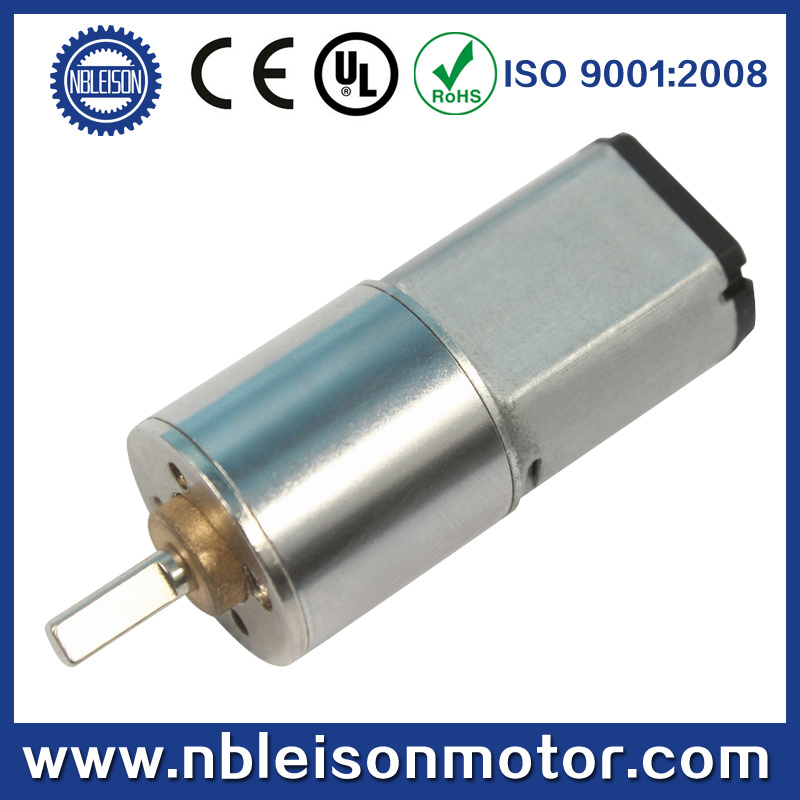

16mm 3V 5V 12V Micro DC Reducton Gear Motor

Name: 16mm 3V 5V 12V Micro DC Reducton Gear Motor
Brand: all-electronics-online.com
SKU: 771739145
Availability: InStock
Rating: 5 (128 reviews)

Price:	US $ 3.68-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	16GA030
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gear:	Metal Gear
Voltage:	1.5-12V
Construction:	Permanent Magnet
Commutation:	Brush
Rotation Direction:	Reversible
Shaft:	Round, D-Cut, Hole Thread or Other Customized
Speed:	10rpm to 800rpm
Torque:	0.1 to 2kgf.Cm
Operating Speed:	Low Speed
Structure And Working Principle:	Brush
Application:	Robot, Toys, Door Lock, Monitor

Product Description

1. Voltage: 1.5, 3V, 4.5V, 5V, 6V, 7V, 9V, 12V

2. Speed: 10-1000rpm, Other special speed can be requirement

3. Reductin Ratio: 1: 13, 1: 16, 1: 26, 1: 32, 1: 37.1: 45, 1: 75, 1: 91, 1: 105, 1: 128, 1: 148, 1: 210, 1: 256, 1: 296, 1: 362 1: 592, 1: 763, 1: 825, 1: 1035

4. Rated toque: 0.1-2kg. Cm.

5. Dimension: 16mm dia gearbox, 18mm motor body length, 3mm shaft diameter, 11-17mm gearbox length 10mm standard shaft length

6. Application in: Robot, Automatic Door Lock, Toys, Toothbrush, Monitor

7. Can accept customizied requirment

The datasheet only typical data for reference, Please fell free to contact with me if you want this motor

Specificaton or drawing.

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFIENCY					STARTING
	NOMINAL	SPEED	CURRENT	SPEED	CURRENT	TOROUE		OUTPUT	TOROUE		CURRENT
	NOMINAL	r/min	A	r/min	mA	mN. m	g. cm	W	mN. m	g. cm	mA
LS-16GA030-100	3	70	60	52	170	29.4	300	0.16	78.4	800	450
LS-16GA030-50	6	250	80	200	250	11.7	120	0.25	98	1000	700
LS-16GA030-600	5	6.5	30	5	40	68.6	700	0.1	294	3000	700
LS-16GA030-24	12	775	100	620	260	68.6	120	180	58.8	600	500

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
