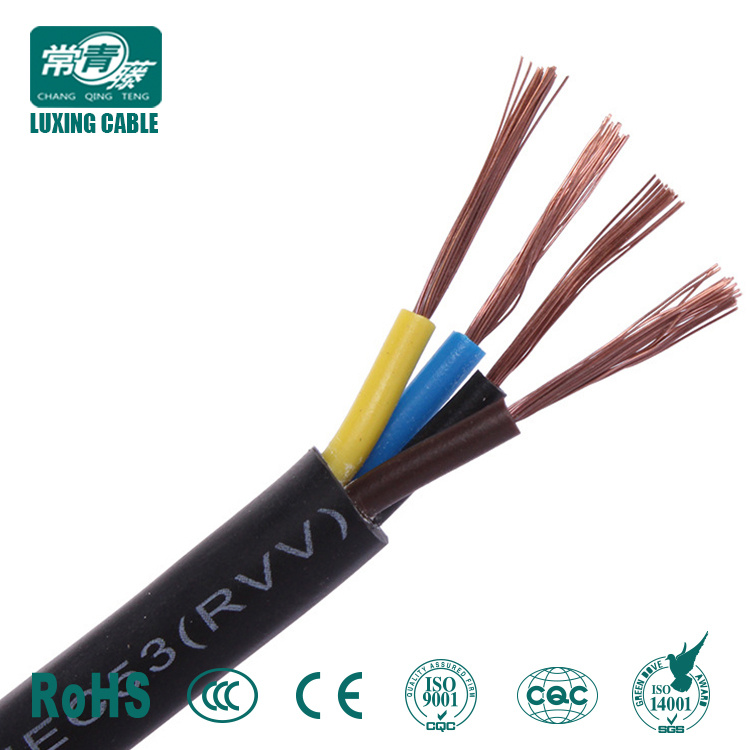

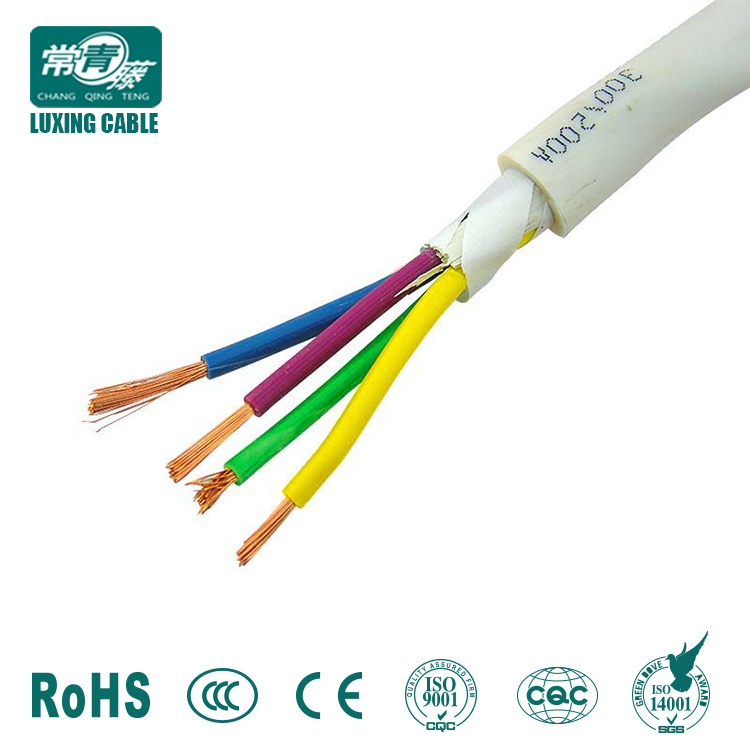

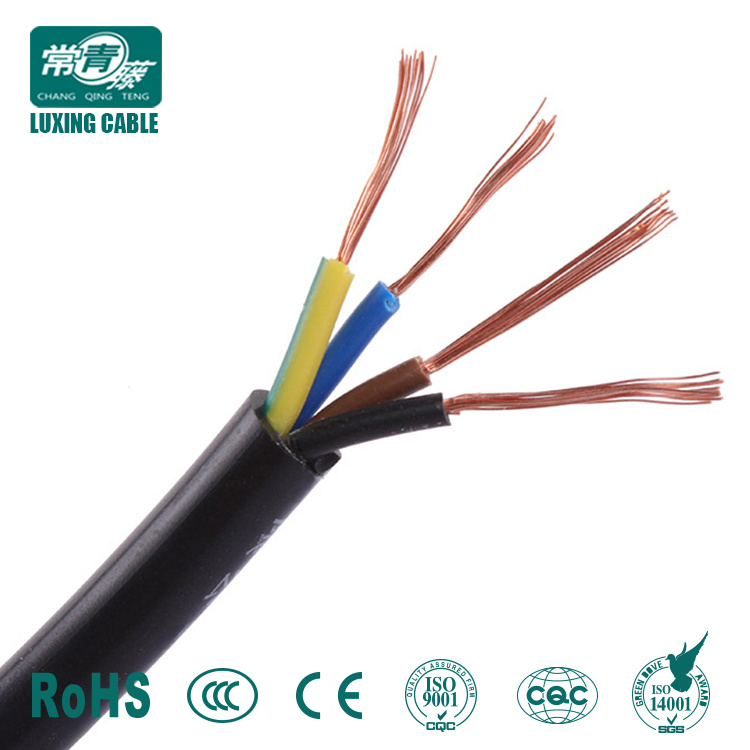

16mm 4 Core Cable/2 Core 16mm PVC Cable/16mm Electrical Cable Price

16mm 4 Core Cable/2 Core 16mm PVC Cable/16mm Electrical Cable Price
Price: US $ 6/Meter
Min Order: 100/Meter
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: VV, RVV, KVV, YJV.
Product Name: 16mm 4 Core Cable/2 Core 16mm PVC Cable/16mm Elect
Number Of Cores: Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage: 0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10 (15)Kv,1
Cross Section Area/Measure: 0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10 (15)Kv,1
Standard: IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502
Conductor: Stranded/Solid/Flexible Copper/Aluminum Conducto
Insulation: XLPE/PVC/PE/Pur
Aplication: Electric, House Wire, Building Wire...
Shield: Copper Wire Screen(Cws), Aluminium Wire Screen (a
Armoured: Steel Tape Armoured (Sta) or Steel Wire Armoured
Type: Insulated
Conductor Type: Stranded
Application: Underground
Conductor Material: Copper
Insulation Material: XLPE
Certification: VDE
Brand: Chang Qing Teng

Product Description

16mm 4 core cable/2 core 16mm pvc cable/16mm electrical cable price

Product Description




16mm 4 core cable/2 core 16mm pvc cable/16mm electrical cable price












Product Description

Single Core PVC Insulated Flexible Cable 300 /500V

H05V-K

H07V-K





Type

RV, H05V-K, H07V-K

Voltage  Rate

300/500V, 450/750V

Range of Nominal cross section:

0.50 mm2 ~ 120 mm2

Application

Flexible wiring, for switch control, instrumentation panels and for internal connection.

Standard

IEC 60227, BS6500, VDE0281, GB/T 5023, JB/T8734

Constructions

Conductor: Class 5 fine annealed copper wires

Insulation: PVC

Core color: Brown, Grey, Black, Blue, Green/Yellow or others on request

Max. Operating Temperature

70ºC, can be 90ºC,105ºC as per requirement

Packing

100 meter/roll or as per requirement

Production Capacity

100 kilometer/ day

MOQ

10000 meters for small size, 5000 meters for middle size, 1000 meters for big size

Delivery time

10~15 working days

Remark

The cable can be of flame retardance, fire resistance and other property



Technical parameters

H07V-K H05V-K BY 227IEC02/06 equivalent to VDE 0281 BS6004

Cross section (mm2)

Conductor construction (No/mm)

Insulation thickness (mm)

Overall diameter max (mm)

Min insulation resistance@ 70ºC (ohm/Km)

Weight approx (Kg/Km)

1x0.5

16/0.2

0.6

2.4

0.013

8

1x0.75

24/0.2

0.6

2.6

0.011

11

1x1.0

32/0.2

0.6

2.8

0.01

14

1x1.5

48/0.2

0.7

3.5

0.01

20

1x2.5

49/0.25

0.8

4.2

0.009

31

1x4

56/0.3

0.8

4.8

0.007

47

1x6

84/0.3

0.8

6.3

0.006

67.8

1x10

84/0.4

1.0

7.6

0.0056

121

1x16

126/0.4

1.0

8.8

0.0046

173

1x25

196/0.4

1.2

11

0.0044

268

1x35

276/0.4

1.2

12.5

0.0038

370

1x50

396/0.4

1.4

14.5

0.0037

526

1x70

360/0.5

1.4

17

0.0032

727

1x95

475/0.5

1.6

19

0.0032

959

1x120

608/0.5

1.6

21

0.0029

1201

1x150

756/0.5

1.8

23.5

0.0029

1508

1x185

925/0.5

2.0

26

0.0029

1844

1x240

1221/0.5

2.2

29.5

0.0028

2420





Certifications



 Certifications: CE, ISO9001/14000, CCC, IEC, BS, EN, VDE








Contact:






1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
