| Prod Model: |
HBGQ16H-10E/A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
16mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik10 |
| Crust Material: |
Nickel-Plated Brass/Zn-Al Alloy |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
X |
| Brand: |
Hban |
Product Description
Premeters: Mounting Hole Size:Φ16mm
Switch Rating:2A/36VDC
Operation Type: Momentary/Latching
The Front Shape:High Round
The Crust Material:Stainless steel /Nickel-plated Brass/Zn-alloy
Protection Degree:IP65,IK08
Mechanical lifetime:1,000,000 times
Pin /ScrewTerminal
| Specifications | HBGQ16H-10E/A | HBGQ16H-10E/N | HBGQ16H-10E/S |
| Terminal Type | Pin Terminal(2.8x0.5mm) | Pin Terminal(2.8x0.5mm) | ScrewTerminal |
| Switch Type | X(Two terminal breakpoint slow movingr contacts ) | X(Two terminal breakpoint slow movingr contacts )
| X(Two terminal breakpoint slow movingr contacts ) |
| Contact Resistance | ≤50m Ω | ≤50m Ω | ≤50m Ω |
| Insulation Resistance | ≥1000M Ω | ≥1000 M Ω | ≥1000 M Ω |
| Dielectric Strength | 2000V AC | 2000V AC | 2000V AC |
| Operating Temperature | -20°C ~ +55 °C | -20°C ~ +55 °C | -20°C ~ +55 °C |
| Mechanical Life | >1,000,000 times | >1,000,000 times | >1,000,000 times |
| Electrical Life | >50,000 times | >50,000 times | >50,000 times |
| Panel Thickness | 1~10m m | 1~10m m | 1~10m m |
| Torque | 5~14Nm | 5~14Nm | 5~14Nm |
| Protection Degree | IP65,IK08 | IP65,IK08 | IP65,IK08 |
| Material | Contact | Silver Alloy | Silver Alloy | Silver Alloy |
| Button | Zn-alloy | Nickel-plated Brass | stainless steel |
| Case | Zn-alloy
| Nickel-plated Brass | stainless steel |
| Base | PC | PC | PC |
| ROHS | Can be made to order | Can be made to order | Can be made to order |
Packing Details:We pack 40 pieces diameter 16mm signal lamp into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.

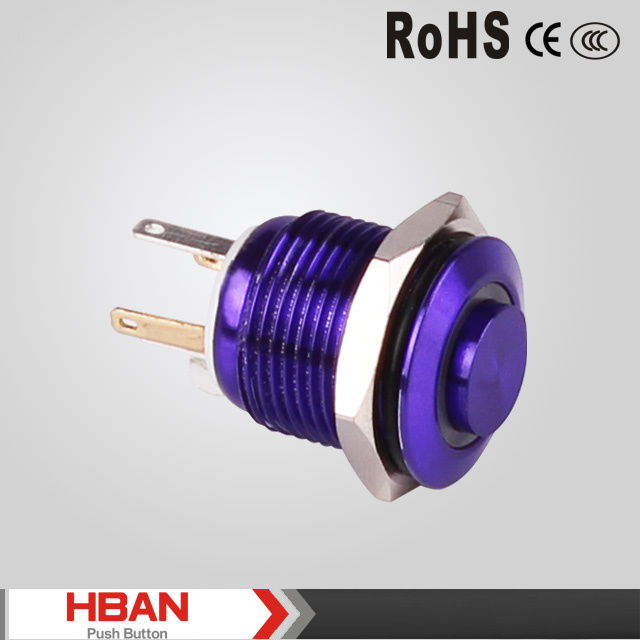

Poducts pictures
Production line

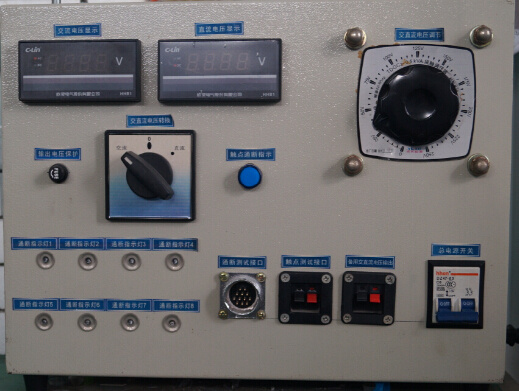

Testing
Appilcation
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
FAQ:
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days
