| Prod Model: |
HBGQ16F-10E/S |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
16mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik10 |
| Crust Material: |
Nickel-Plated Brass |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
X |
| Brand: |
Hban |
Product Description

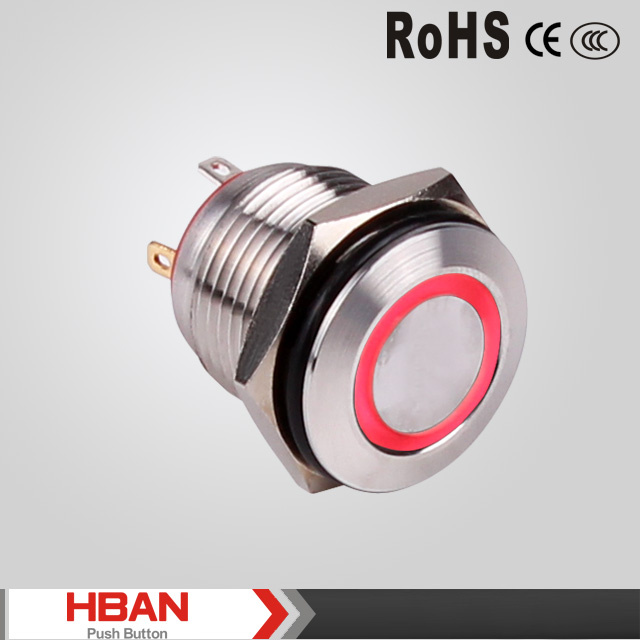

16MM TUV UL ROHS Flat round stainless steel red led ring switchPremeters:Mounting Hole Size:Φ16mm
Switch Rating:2A/36VDC
Contact Configuration: 1NO (1NC can be customized)
Operation Type: Momentary/latch
The Front Shape: Ring-illuminated/High Round/Flat round illumnated
The Crust Material:Zn-al Alloy/Stainless Steel/Nickel-plated brass
Protection Degree:IP65,IK08
Mechanical lifetime:1,000,000
Pin Terminal:2×0.5mm
| Specification | HBGQ16F-10/J |
| The Front Shape | Flat |
| Terminal Type | Pin Terminal(2x0.5mm) |
| Switch Type | Two terminal breakpoints slow moving contact |
| Switch Specification | 2A/36VDC |
| Contact Resistance | <50mΩ |
| Insulation resistance | >1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temperature | -20ºC~ 55ºC |
| Mechanical Life | >1,000,1000 times |
| Elecrical Life | >200,000 times |
| Panel Thickness | 1~10mm |
| Torque | 5-14Nm |
| Operation Pressure | <6N |
| Operation Stroke | about 1.5mm |
| Protection Degree | IP65 IK08 |
| Material |
| Contact | Silver Alloy |
| Button | Stainless steel Mirror Surfact CD Pattern |
| Case | Stainless steel or Nickel-plated Brass |
| Base | PBT |
| Lamp Parameters |
| Type | Ring-Illumination |
| Rated Voltage | 2V/6V/12V/24V/36V |
| Color | R/G/B/O/W |
| Life | 50000 Hours |
Packing Details:We pack 40 pieces diameter 16mm signal lamp into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Poducts pictures
Production line

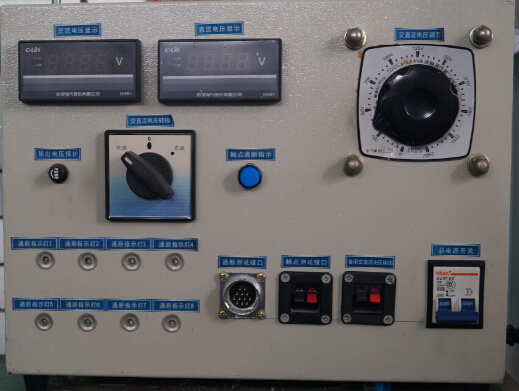

Testing
Appilcation
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
