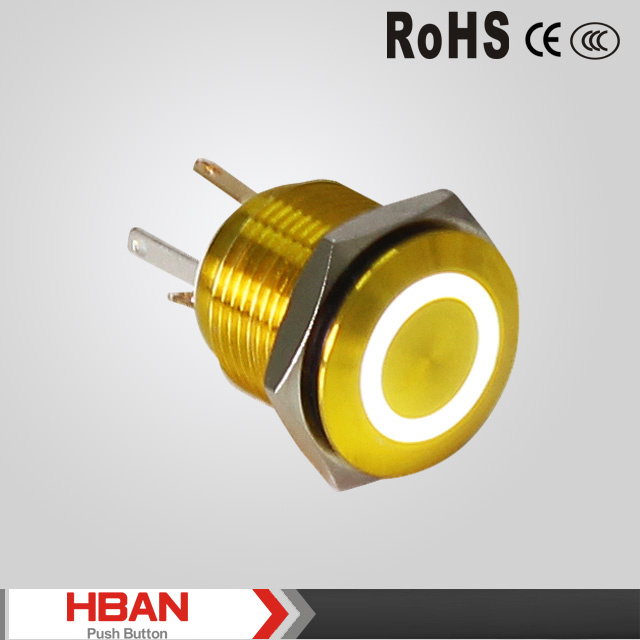

16mm Metal Waterproof Momentary LED Colorful Push Button Switch
| Price: |
US $ 0.1-10/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
HBGQ16F-10E/J/S |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
16mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik10 |
| Crust Material: |
Nickel-Plated Brass |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
X |
| Brand: |
Hban |
Product Description

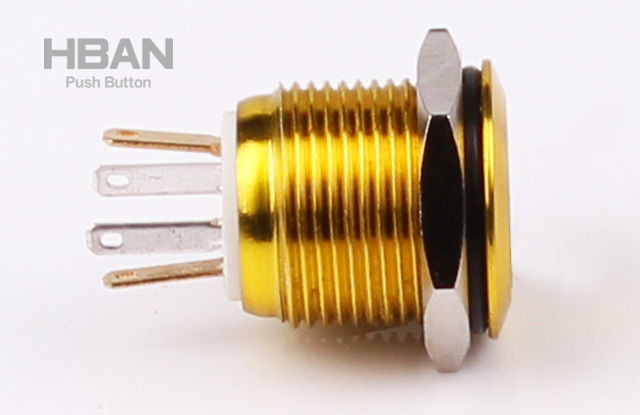

16mm metal waterproof momentary led colorful push button switch Mounting Hole Size:Φ16mm
Switch Rating:2 A/36VDC
Operation Type: Momentary/Latching

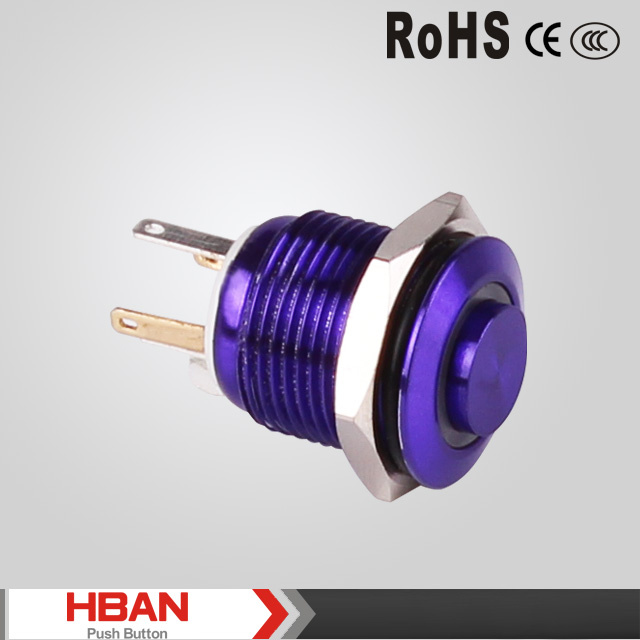

The Front Shape:High Round
The Crust Material:Stainless steel /Nickel-plated Brass/Zn-alloy
Protection Degree:IP65,IK08
Mechanical lifetime:1,000,000 times
Pin /ScrewTerminal | Specifications | HBGQ16H-10E/A | HBGQ16H-10E/N | HBGQ16H-10E/S |

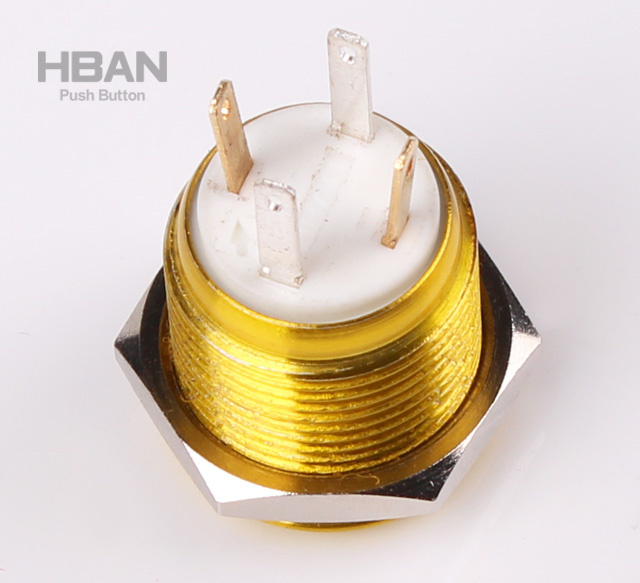

| Terminal Type | Pin Terminal(2.8x0.5mm) | Pin Terminal(2.8x0.5mm) | ScrewTerminal |
| Switch Type | X(Two terminal breakpoint slow movingr contacts ) | X(Two terminal breakpoint slow movingr contacts )
| X(Two terminal breakpoint slow movingr contacts ) |
| Contact Resistance | ≤50m Ω | ≤50m Ω | ≤50m Ω |
| Insulation Resistance | ≥1000M Ω | ≥1000 M Ω | ≥1000 M Ω |
| Dielectric Strength | 2000V AC | 2000V AC | 2000V AC |
| Operating Temperature | -20°C ~ +55 °C | -20°C ~ +55 °C | -20°C ~ +55 °C |
| Mechanical Life | >1,000,000 times | >1,000,000 times | >1,000,000 times |
| Electrical Life | >50,000 times | >50,000 times | >50,000 times |
| Panel Thickness | 1~10m m | 1~10m m | 1~10m m |
| Torque | 5~14Nm | 5~14Nm | 5~14Nm |
| Protection Degree | IP65,IK08 | IP65,IK08 | IP65,IK08 |
| Material | Contact | Silver Alloy | Silver Alloy | Silver Alloy |
| Button | Zn-alloy | Nickel-plated Brass | stainless steel |
| Case | Zn-alloy
| Nickel-plated Brass | stainless steel |
| Base | PC | PC | PC |
| ROHS | Can be made to order | Can be made to order | Can be made to order |
Packing Details:We pack 40 pieces diameter 16mm signal lamp into 1 foam box to protect them .We supply 40 pieces rubber rings and 1 piece guarantee card with these switches.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.About UsYueqing Dahe Electric Co., Ltd is a professional manufacturer of push buttonSwitch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and other Industries.We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .Tel: 0086-577-62708000 Fax: 0086-577-62708007 Other imformation1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer. 2) over 13 years experience of manufacture and selling 3) lowest price from factory 4) up to 5 years product quality warranty 5) safety payment methods including paypal,western union,T/T,moneygram 6) specially customizing products as per your requests 7) products with CCC CE ROHS UL ISO9001 SGS TUV certification8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight9) providing samples for free befor placing orderAppilcation
Yueqing Dahe Electric Co., Ltd. Set up on 2003, is a professional manufacturer of push button switch, indicator lights, signal lamp, buzzers, high-intensity resistance and anti-vandal metal push button switch.
Our products are widely used in machinery, machine tools, electric power, electronics, production control, medical, banks, ships, automation and other industries. We have state-of-the-art production, laboratory equipment and testing apparatus, and insist on the quality of survival, to serve and promote the development quality management service support system, to ensure that the product of the index is quality controlled state.
After years of pioneering spirit, the company has now made a number of patents, the products have passed national mandatory CCC certification, CE certification and RoHS certification, with high quality and cost-effective, favored by the majority of users. We sincerely welcome people to join together to create brilliant.
At present, we cooperate with customers in more than 50 countries and areas. We sincerley hope to cooperate with you. Welcome to become our Distributor in your city.
