Yueqing Langir Electric Co., Ltd. >> 16mm Pin Terminal Momentary Nickel Plated Brass Push Button Switch

16mm Pin Terminal Momentary Nickel Plated Brass Push Button Switch

16mm Pin Terminal Momentary Nickel Plated Brass Push Button Switch
Price: US $ 1.56/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
Prod Model: V16-F/1/P/N
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material: Nickel Plated Brass
Function: Momentary
Terminal: Pin Terminal
Front Shape: Flat Head
IP Grade: IP65
Type: Normal Open
Usage: Reset Button
Kind: Single-pole on-off Switch
Brand: Langir

Product Description

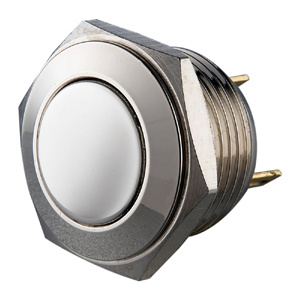

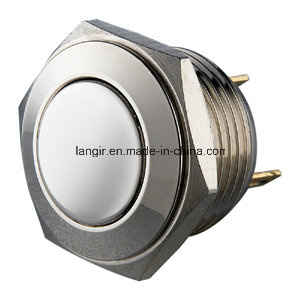

Nickel plated brass metal push button switch with pin terminal
-Anti-vandal(vandal resistant)
-Nickel plated brass
-Momentary
-Dia.16mm Normal Open
-Switch ratings: 2A/48VDC
-CE RoHS



ModelV16-FV16-BV16-H
Actuator OptionsFlatDomedHigh Flat
Terminal TypeScrew / Pin (2.8x0.5mm)
Max. Switch Rating2A 48V DC
Contact Resistance≤50mΩ
Insulation Resistance≥1000mΩ
Dielectric Strength2000VAC
Operation Temp.-20°c ~ +55°c
Mechanical Life1, 000, 000cycles
Electrical Life200, 000cycles
Contact MaterialSilver Alloy
Torque5~14Nm
Operation Pressure≈4N
IP DegreeIP65 / IK08
Material
ButtonStainless Steel  / * Gold Plated Brass/ * Anodized Aluminum
BodyStainless Steel  / Nickel Plated Brass /* Gold Plated Brass/ * Anodized Aluminum
BasePBT


Profile

LANGIR A professional design, manufacture of Anti Vandal Switches, Piezo switches, Capacitive switches, Piezo Keypads and DC circuits - Miniature circuit-breakers for DC and solar generation; The switches offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.

Established in 2009, Langir Company has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Langir products have exported to many regions and many countries.

We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied within 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication.

Assets

Technical and industrial excellence:

1. Strong technical expertise: R&D departments, large number of design tools, technological

Monitoring…

2. In-house design and fabrication of tooling

3. Control of numerous technologies and all the production processes

4. Large production capacity: Automated processes

Quality of products and services:

1. The widest product offering on the switch market

2. Numerous approvals and certifications (RoHS, REACH, CE, CCC, CB and TUV … )

3. Continuity in the supply of all product ranges

4. Industrial autonomy

Engineering & Production

LANGIR vertical integration for customer service from raw material transformation - plastic powders, metal bands - to finished products, through the design and production of tooling, LANGIR controls all the production stages. LANGIR has a strong reputation for quality, confirmed by the ISO9001: 2008 certification. Our products are designed and produced in accordance with quality standards and environmental requirements.
