| Prod Model: |
HBDS1-A Series push button switch |
| Product Name: |
16mm Plastic Illuminated Waterproof Momentary Push |
| Switch Rating: |
5A/250VAC |
| Operation Type: |
Momentary/Latching |
| Mounting Hole Size: |
16mm |
| The Front Shape: |
Flat Round with LED Illumination |
| The Crust Material: |
Plastic |
| Contact Configuration: |
1no1nc,2no2nc |
| LED Lamp Color: |
Red,Yellow,Orange,Blue,Green,White |
| Terminal Type: |
Pin Terminal |
| Waterproof Level: |
IP40 |
| Usage: |
Check Button |
| Kind: |
Double-pole on-off Switch |
| Type: |
Normal Open Normal Close |
| Structure: |
Two Terminal Breakpoints Slow Moving Contact |
| Contact Type: |
X Contact |
| Brand: |
Hban |
| Certification: |
TUV RoHS |
Product Description
2018 new 16mm Plastic waterproof IP65 momentary latching push button switch.Mounting hole size: 16mm
The crust material: Plastic
Contact material: Silver alloy
Switch Rating: 5A/250VAC
Contact confirguration:1NO1NC/2NO2NC
Operation Type: Momentary/Latching
The front shape: Round/Square/Rectangle with led illuminated

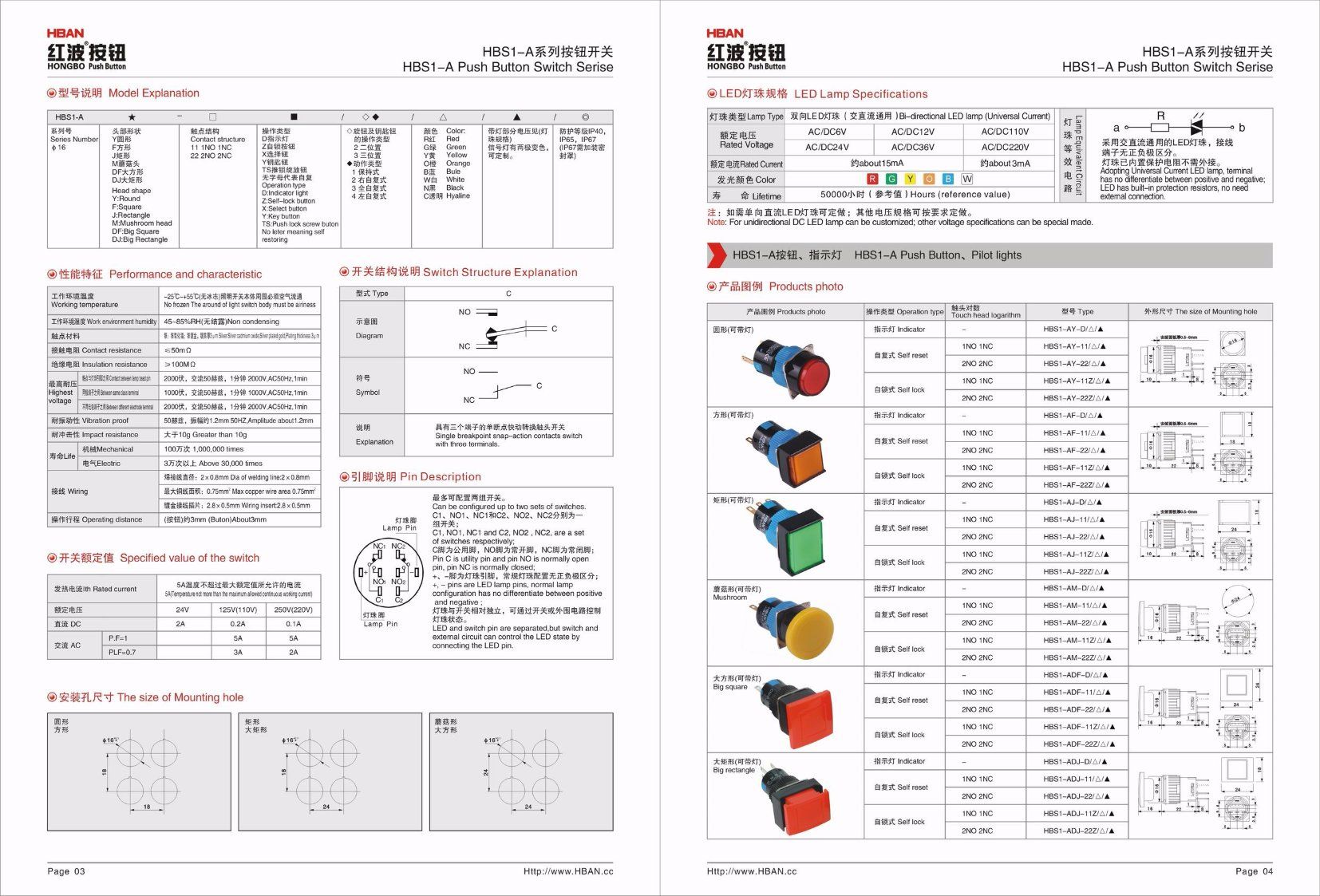

Items detailed technical parameters for your reference. | Specification | HBDS1-A Series Plastic Push Button Switch |
| The Front Shape | Round/Square/Rectangle with led illuminated |
| Terminal Type | Pin Terminal |
| Switch Type | Two terminal breakpoints slow moving contact |
| Switch Specification | 5A/250VDC |
| Contact Resistance | <50mΩ |
| Insulation resistance | >1000mΩ |
| Dielectric Strength | 2000VAC |
| Operation Temperature | -20ºC~ 55ºC |
| Mechanical Life | >1,000,1000 times |
| Elecrical Life | >200,000 times |
| Panel Thickness | 1~6mm |
| Torque | 5-14Nm |
| Operation Pressure | <6N |
| Operation Stroke | about 1.5mm |
| Protection Degree | IP40 or IP65 |
| Material |
| Contact | Silver Alloy |
| Button | Plastic |
| Case | Plastic |
| Base | PBT |
| LED COLOUR | RED/GREEN/YELLOW/ORANGE/BLUE/WHITE |
