| Prod Model: |
HBGQ16F-10E/J/S |
| LED Color: |
Red, Green, Yellow, Orange, White, Blue |
| Diameter: |
16mm |
| Voltage: |
2V, 6V, 12V, 24V, 36V, 110V, 220V |
| Termianl: |
Pin Terminal |
| IP: |
IP67, Ik10 |
| Crust Material: |
Nickel-Plated Brass |
| Type: |
Normal Open |
| Usage: |
Reset Button |
| Kind: |
Single-pole on-off Switch |
| Contact Type: |
X |
| Brand: |
Hban |
Product Description

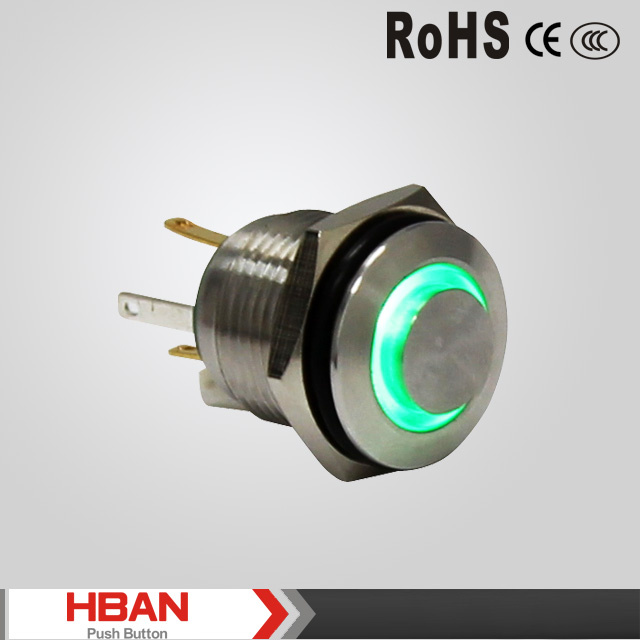

16mm ring led stainless steel normal open push button switch Mounting Hole Size:Φ16mm
Switch Rating:2A/36VDC
Contact Configuration: 1NO (1NC can be customized)
Operation Type: Momentary/latching
The Front Shape: Ring-illuminated/High Round
The Crust Material:Zn-al Alloy/Stainless Steel/Nickel-plated brass
Protection Degree:IP65,IK08
Mechanical lifetime:1,000,000
Pin Terminal:2×0.5mm
| Specifications | HBGQ16H-10/J/A | HBGQ16H-10/E/J | HBGQ16H- 10J |
| Terminal Type | Pin Terminal(2×0.5mm) | Pin Terminal(2×0.5mm)
| Pin Terminal(2×0.5mm) |
| Switch Type | X(Two terminal breakpointsslow moving contact | X(Two terminal breakpointsslow moving contact | X(Two terminal breakpointsslow moving contact |
| Contact Resistance | ≤50m Ω | ≤50m Ω | ≤50m Ω |
| Insulation Resistance | ≥1000M Ω | ≥1000 M Ω | ≥1000 M Ω |
| Dielectric Strength | 2000V AC | 2000V AC | 2000V AC |
| Operating Temperature | -20°C ~ +55 °C | -20°C ~ +55 °C | -20°C ~ +55 °C |
| Mechanical Life | >1,000,000 times | >1,000,000 times | >1,000,000 times |
| Electrical Life | >200,000 times | >200,000 times | >200,000 times |
| Panel Thickness | 1~10m m | 1~10m m | 1~10m m |
| Torque | 5~14Nm | 5~14Nm | 5~14Nm |
| Protection Degree | IP65,IK08 | IP65,IK08 | IP65,IK08 |
| Material | Contact | Silver Alloy | Silver Alloy | Silver Alloy |
| Button | PBT | PBT | PBT |
| Case | Zn-al Alloy | Zn-al Alloy | Zn-al Alloy |
| Base | PBT | PBT | PBT |
| ROHS | Can be made to order | Can be made to order | Can be made to order |
About Us:Yueqing Dahe Electric Co., Ltd is a professional manufacturer of push buttonSwitch, signal lamp, buzzers, waterproof and anti vandal metal push button switch for more than 10 years with CE and RoHS certificates.Our products are widely used in machinery, machine tools, electric power,Electronics, production control, medical, banks, ships, automation and other Industries.We can customize push button switch according to your specification, If you have any requirement or question, please feel free to contact us.We offer a warranty on all items that we sold. Item will be tested before ship,it will be in good condition,if there are some problems with the item,feel free to contact us. send the photo to us that we can check and give you best solution .Tel: 0086-577-62708000 Fax: 0086-577-62708007 Other imformation1) Wide product catagory:metal anti vandal push button switch,ip67 waterproof push button switch,push button switch with illumination,plastic pUsh button switch,indicator light,peizoelectric switch,micro travel switch,buzzer. 2) over 13 years experience of manufacture and selling 3) lowest price from factory 4) up to 5 years product quality warranty 5) safety payment methods including paypal,western union,T/T,moneygram 6) specially customizing products as per your requests 7) products with CCC CE ROHS UL ISO9001 SGS TUV certification8) reliable shipping means,such as international express(DHL,FEDEX,UPS,TNT EMS),sea-freight,air-freight9) providing samples for free befor placing order
Appilcation
If you do not know which you need, please reply the following question, we can recommend of you.
1.Mounting hole size:6mm,8mm,10mm,12mm,14mm,16mm,19mm,22mm,25mm,28MM.30MM
2.Operation type: Momentary or Latching
5.The front shape: Flat, Flat Round, High Round, Concave, Slide, Hyperplane,Domed,square,rectangle
6.The crust material: plastic, nickel-plated Brass, stainless steel or others
7.Pretection DegreeIP40 IP65 IP67
Would you need LED lamp and push button switches? If yes, please reply the following question.
1.LED type: Ring or Dot
2.LED Rated Voltage: 2v/6v/12v/24v/110v/220v
3.LED color: one color or two, Red, Green, Yellow, Orange, Blue, White
4.Switch shape: concave,flat.high round,domed,hyerplane flat ,hyerplane domed
5.Switch size: 10,12,16,19,22,25,28,30mm.
6.Switch operation type: momentary or latching
7.switch material,zn-al alloy,nickel-plated,alluminum,plastic
FAQ:
1.Are you maufactuer?
Yes, we are manufactuer
2.What's the difference between SHANGHAI HONGBO AND DAHE company?
We have an shop in Shanghai and registered SHANGHAI HONGBO, but the produce department is in DAHE company, which is located in the electric capital of Liushi, Wenzhou
3.How about the payment?
West Union, Paypal, Bank,T/T
4.Dlivery time
Within 15 days
