| Prod Model: |
120mm, 240mm |
| Size: |
4,6,10,16,25,35,50,70,95,120mm2 |
| Standard: |
ASTM/BS/GB/IEC |
| Certificate: |
CCC/Ce/SGS |
| Insualtion Color: |
Black, Red |
| Application: |
Underground |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Sheath Material: |
PVC/PE |
| Model: |
Cu/XLPE/PVC |
| Brand: |
Jytop |
Product Description

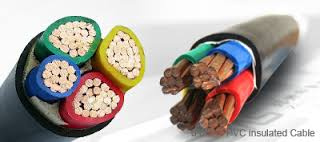

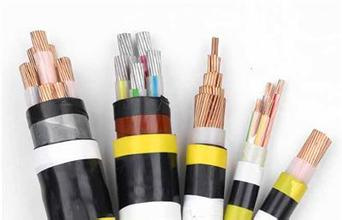

16mm XLPE Cable 4 Core Armoured power Cable
1. Standard: According to Chinese national standard GB 12706 and GB12666.6(Equal to IEC60502 and IEC60331),also can do by standard of ASTM,BS,GB,DIN and AS/NZS or other standards as request.
2. Rated Voltage:0.6/1KV
3. Construction:
Conductor:Copper or Aluminium
Insulation:XLPE/PVC
Inner sheath:PVC or PE
Armoured:Galvanized steel tape or galvanized steel wire
Outer Sheath:PVC or PE
NO. of cable cross: 1 core(Single core),2cores(Double cores),3cores, 4cores(4 equal-section-area cores OR 3 equal-section-area+1 small section area neutral core),5cores(5 3 equal-section-area cores+2 small area neutral cores OR 4 equal-section-area +1 small area neutral cores).We provide armored type and non-armored type for the cables stated above.
Also can do according to the customer's request.
4. Characters:
a.Max Long-time operating temperature of PVC insulated cable is 70°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 160°C,Not more than5 Sec.
d.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Description & Application:
TYPE |
Description of Cable |
Main Applications |
CU core |
AL core |
|
|
VV |
VLV |
Copper/Aluminium core,PVC insulated,PVC sheathed power cable |
Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions. |
VY |
VLY |
Copper/Aluminium core,PVC insulated,PE sheathed power cable |
VV22 |
VLV22 |
Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable |
Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces. |
VV23 |
VLV23 |
Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable |
VV32 |
VLV32 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable |
Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces. |
VV33 |
VLV33 |
Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable |
VV42 |
VLV42 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable |
Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces. |
VV43 |
VLV43 |
Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable |
6. Advantages:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure
d. Convenient to use
e. Light weight,perfect bending properties
Core NO. & Nominal Cross-section Area as reference:
No. of Core |
1 |
2 |
3 |
3+1 |
4 |
3+2 |
4+1 |
Section
Area
(mm2) |
4~500 |
2.5~500 |
2.5~300 |
4~300 |
2.5~300 |
2.5~300 |
4~300
|
Zhengzhou JINYUAN Wire and Cable Co., Ltd, as a professional cable manufacturer. We have get ISO9001 and CE certificates. Our Professional and complete cable solutions make JYTOP Cables become to the partner of choice for international companies around the world,
PRODUCTS & STANDARDS & International Market:
1). Bare Conductor:
All Aluminum Conductor (AAC),
All Aluminum Alloy Conductor (AAAC),
Aluminum Conductor Steel Reinforced (ACSR),
Aluminum Alloy Conductor Steel Reinforced (AACSR),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW),
Aluminum Conductor Aluminum Alloy Reinforced (ACAR),
Aluminum Conductor Steel Supported (ACSS),
Aluminum Conductor Aluminum Coated Steel Reinforced (ACSR/AW)
All Copper Conductors(ACC),
Aluminum Coated Steel Wire(ACS),
Copper Coated Steel Wire(CCS),
Copper Coated Aluminum(CCA),
Galvanized Steel Wire(GSW),
Enameled Wire - Enameled round Aluminum Wire & Enameled round copper Wire
2). Overhead Cable:
Aerial Bundled Cable (ABC).
XLPE Cable,
Flexible Cable,
Single Core Cable,
2 Core Cable,
3 Core Cable,
4 Core Cable.
3). Building wire and cable:
THHN /THWN Cable
TW/THW Cable
PVC Insulated Wire,
XLPE Insulated cable.
4. Power Cable:
Armored /Non-armored Power cable
AWA Cable
SWA Cable
Standards: IEC, ASTM, AS/NZ, SANS, BS, DIN, NF, JISC, etc.
We can meet customers' special requirements, and provided OEM service.
Mainly Oversea Marketing: Southeast Asia, The Middle East, Africa, South America, so on.
We will be recognized as a professional Manufacturer in cable industry, through continuous improvement of our product quality, after sales service. We can give you the reliable solution for cable wires.
Company website: www.jytopcable.com
