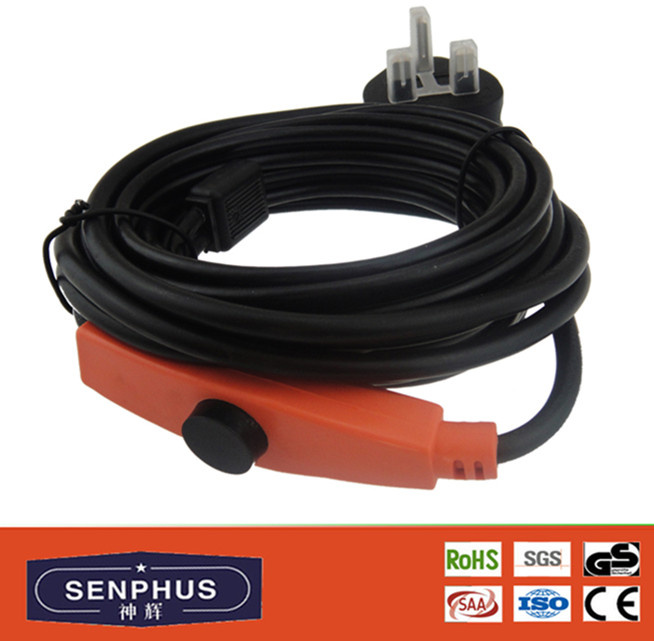

16W/M Frost Protection Heat Wire for Pipes
| Price: |
US $ 10/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
| Prod Model: |
SHPT-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heat Wire Power: |
16W/M or Customize |
| Heat Wire Conductor: |
Twin Conductor Resistance Wire |
| Heat Wire Thermostat Color: |
Orange, Blue , Green |
| Heat Wire Jacket: |
PVC |
| Heat Wire Length: |
1m to 60m |
| Heat Wire Voltage: |
110~23ov |
| Heat Wire Power Code: |
2m |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Heating |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
GS |
| Range Of Application: |
Water Pipe |
| Brand: |
Senphus |
Product Description
16W/M Frost Protection Heat Wire for Pipes
1. Factory
2. CE GS
3. Anti-freeze
4.Cheap
When tempetures drop below freezing, water pipe lines and process pipe systwms will face the problem of frozen pipe for example a split or cracked water pipe after thawing. Hence, frost protection of pipe is needed. Our 16W/M Frost Protection Heat Wire for Pipes , which helps maintain the required temperature in water pipes, is a reliable heating solution.
Our heat wire for pipes can effectively prevent frost damages and keep liquids floating at all outside temperatures. It comes with a patented splice, insulated cover and a mental clad sheath to ensure product long service life. Available in a wide power range, our heat wire for pipes is great for any residential, commercial or heavy industrial application.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Specification of 16W/M Frost Protection Heat Wire for Pipes
European Market
Senphus Pipe Heating Cable | Heated section Length | Power |
| With thermostat | M | W |
| SHPT-16-1M | 1 | 16 |
| SHPT-16-2M | 2 | 32 |
| SHPT-16-4M | 4 | 64 |
| SHPT-16-8M | 8 | 128 |
| SHPT-16-12M | 12 | 192 |
| SHPT-16-14M | 14 | 224 |
| SHPT-16-18M | 18 | 288 |
| SHPT-16-24M | 24 | 384 |
| SHPT-16-36M | 36 | 576 |
| SHPT-16-48M | 48 | 768 |
North America Market
No. | Catalog Number | Length | Watt |
| 1 | SHPT-7-3' | 3ft | 120 volt 21W |
| 2 | SHPT-7-6' | 6ft | 120 volt 42W |
| 3 | SHPT-7-9' | 9ft | 120 volt 63W |
| 4 | SHPT-7-12' | 12ft | 120 volt 84W |
| 5 | SHPT-7-15' | 15ft | 120 volt 105W |
| 6 | SHPT-7-18' | 18ft | 120 volt 126W |
| 7 | SHPT-7-24' | 24ft | 120 volt 168W |
| 8 | SHPT-7-30' | 30ft | 120 volt 210W |
| 9 | SHPT-7-36' | 36ft | 120 volt 252W |
| 10 | SHPT-7-40' | 40ft | 120 volt 280W |
| 11 | SHPT-7-60' | 60ft | 120 volt 420W |
| 12 | SHPT-7-80' | 80ft | 120 volt 560W |
| No. | Catalog Number | Length | Watt |
| 1 | SHPT-5-3' | 3ft | 120 volt 15W |
| 2 | SHPT-5-6' | 6ft | 120 volt 30W |
| 3 | SHPT-5-9' | 9ft | 120 volt 45W |
| 4 | SHPT-5-12' | 12ft | 120 volt 60W |
| 5 | SHPT-5-15' | 15ft | 120 volt 75W |
| 6 | SHPT-5-18' | 18ft | 120 volt 90W |
| 7 | SHPT-5-24' | 24ft | 120 volt 120W |
| 8 | SHPT-5-30' | 30ft | 120 volt 150W |
| 9 | SHPT-5-36' | 36ft | 120 volt 180W |
| 10 | SHPT-5-40' | 40ft | 120 volt 200W |
| 11 | SHPT-5-60' | 60ft | 120 volt 300W |
| 12 | SHPT-5-80' | 80 |
Remarks: It can be made according to the customers'requirements
Voltage, Power, Cold Lead Plug, ect, can be designed according to customer's requirements. For example,
220/230V, 17w/m,16w/m or 20w/m,23w/m,etc.
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.
We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
