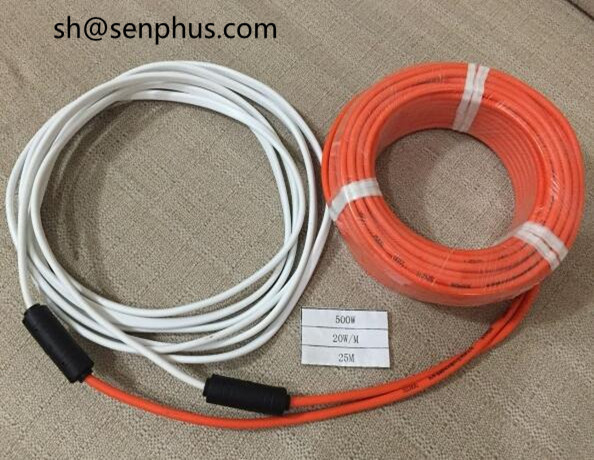

PVC Heating Wire UL 1080

Name: PVC Heating Wire UL 1080
Brand: all-electronics-online.com
SKU: 838077065
Availability: InStock
Rating: 4.6 (94 reviews)

Price:	US $ 1/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ul1080
Diameter:	1mm to 5mm
Certificate:	UL
Color:	White

Product Description

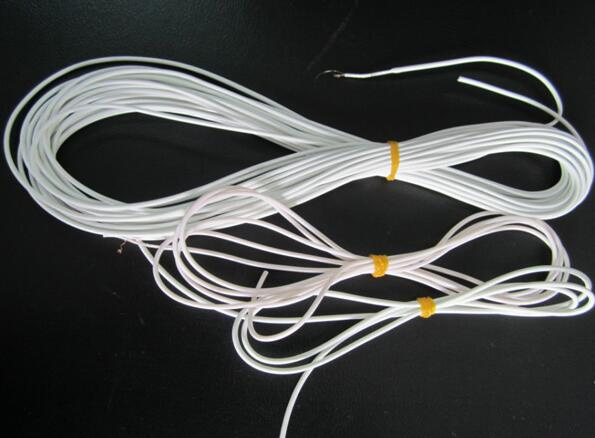

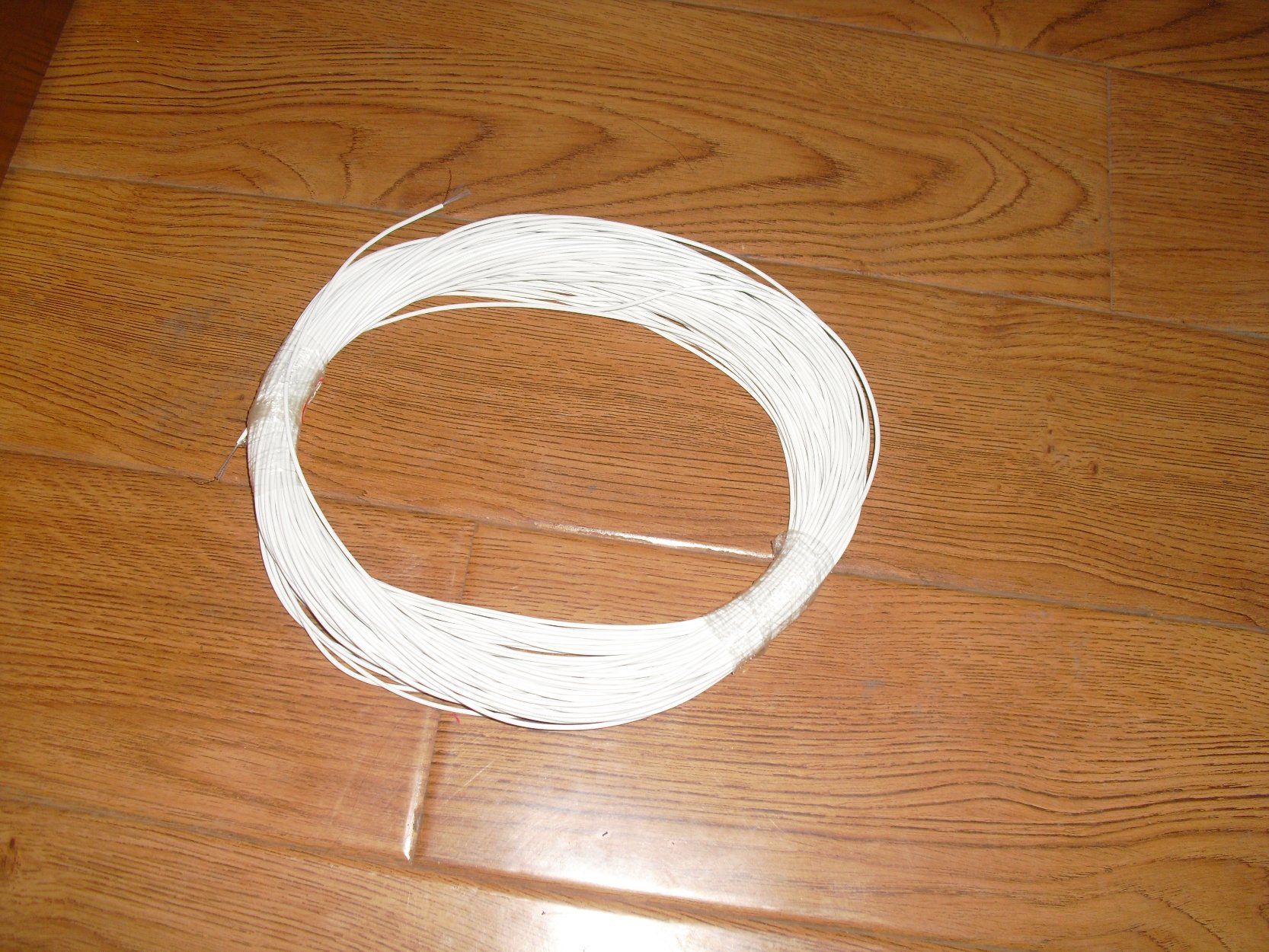

PVC heating wire UL 1080

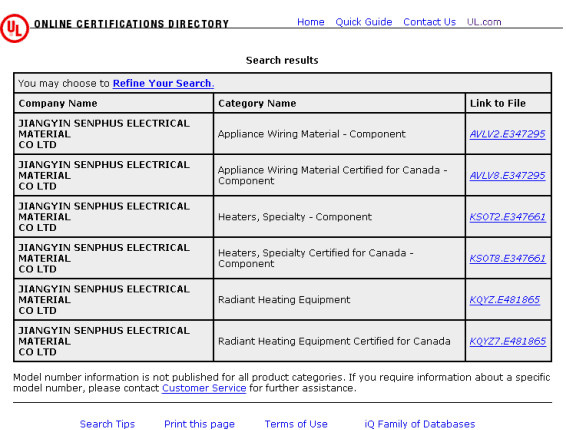

Senphus PVC heating wire has passed UL certificate

Free sample
Good insulation
PVC covered wire
Wire china manufacturer
1) Temperature range: -40oC -- +105oC
2) Rated Voltage: 300V
3) Conducor: tinned or bare stranded copper
4) Implementation standard: UL758
5) Clors: white,black,red, blue, gray,yellow,brown and more
6) Insulator: PVC
7) Model: UL
8)It applies to household appliance,cooking apparatus,illumination equipment machinery and electron etc.

Some PVC Heating Wire Specification

	Part No.	Item	Specification
1	Center core	Material	Polyethylene terephthalate
		O.D.	0.43mm+/-10%
2	Resistance wire	Material	Tin-Copper alloy
		O.D.	0.06*0.36mm
		Conductor resistance	232.7/meter+/-7%(at 20 degree C)
		Pitch	TPI36.7
3	Outer insulation	Material	Plasticized poly-vinyl chloride compound
		Maximum using temp	105deg
		O.D.	1.9mm+/-0.1
		Color	Optional

	Part No.	Item	Specification
1	Center core	Material	Polyethylene terephthalate
		O.D.	0.43mm+/-10%
2	Resistance wire	Material	Tin-Copper alloy
		O.D.	0.06*0.36mm
		Conductor resistance	1.5/meter+/-7%(at 20 degree C)
		Pitch	TPI36.7
3	Outer insulation	Material	Plasticized poly-vinyl chloride compound
		Maximum using temp	105deg
		O.D.	1.9mm+/-0.1
		Color	Optional

Number	Test item	Standard	Test equipment	Note
1	Resistance/m	13Ω/M+/-5%	DC resistance tester
2	Diameter	2.0mm+/0.1mm	Calliper
3	Average Thickness	>/=0.51mm	Projector
4	Color	White
5	Tensile Strength	>/=10.4Mpa	Tensile Machine
6	Elongation	>/=100%	Tensile Machine
7	Spark Test	>/=3KV	Spark Machine
Print letter

Any question, contact Lucie 86-13401362193

Application

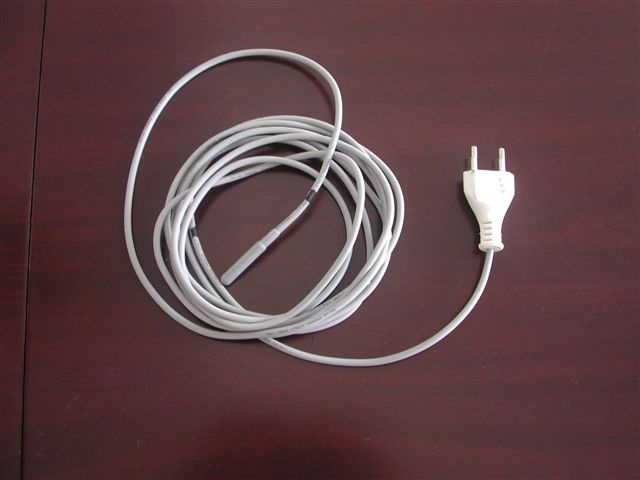

Senphus PVC Heating wire is widely used for the fridge defrosting, electric heating blanket,towel warmer, massage products,medical appliance and beauty equipments etc.

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
