Silicone Flexible Wire for Heater UL Approved

Name: Silicone Flexible Wire for Heater UL Approved
Brand: all-electronics-online.com
SKU: 825672905
Availability: InStock
Rating: 4.3 (137 reviews)

Price:	US $ 0.05-0.09/Meter
Min Order:	1/Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	sr-20
Color:	Orange, White
Diameter:	1 mm to 5mm
Insulation:	Silicone
Lead Time:	2 Days
Voltage:	12V to 240V
Conductor:	One Core, Two Core, Three Core
Usage:	Heating
Operating Principle:	Conductor and Silicone Insulation
Brand:	Senphus

Product Description

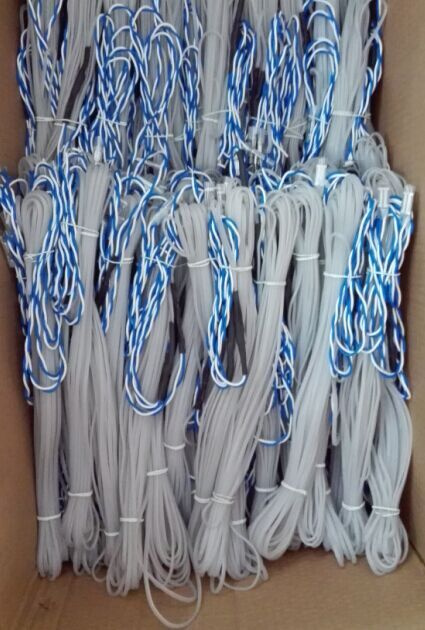

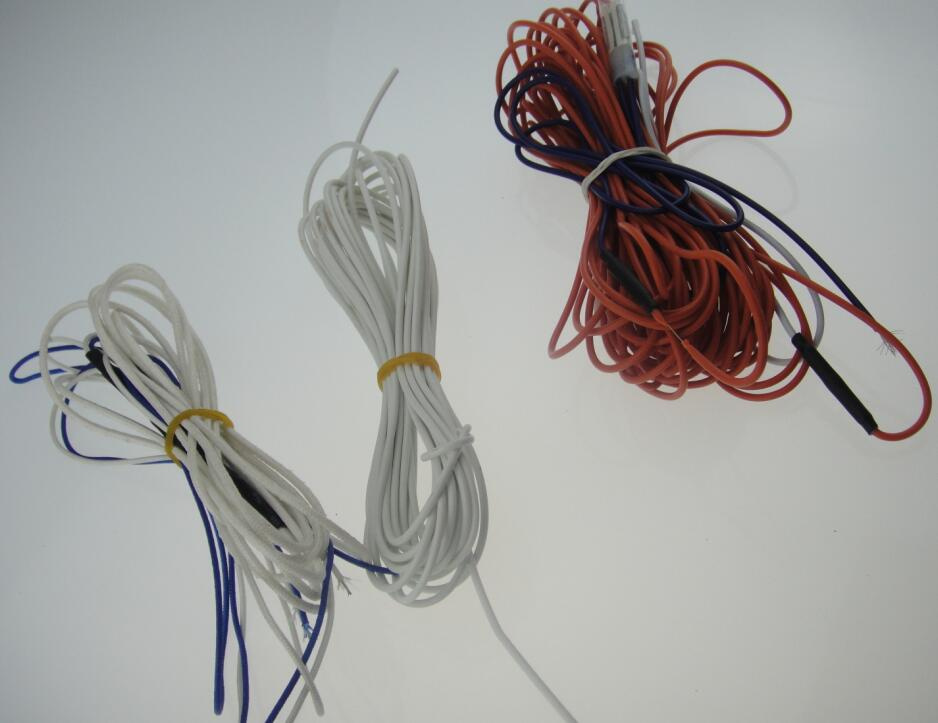

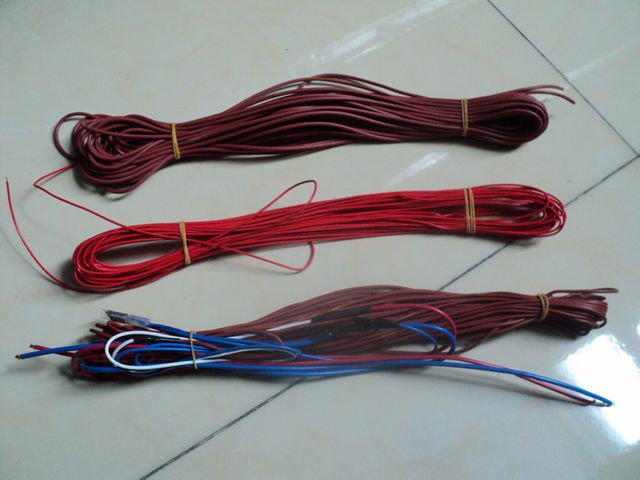

Silicone Flexible Wire for Heater UL Approved

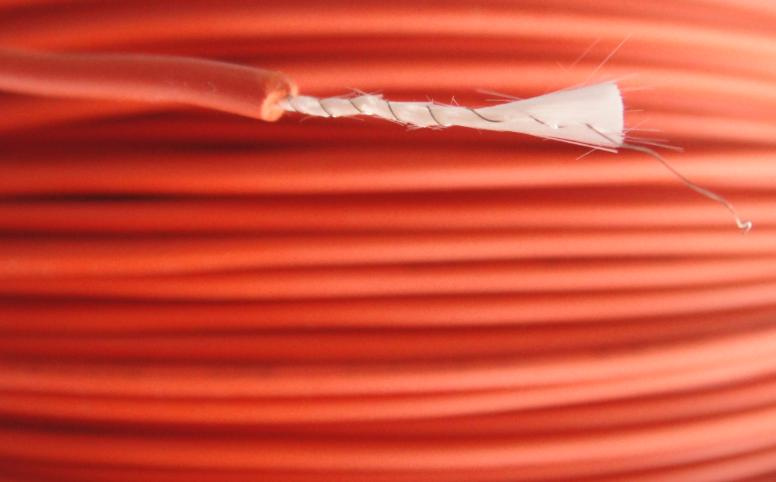

Senphus Silicone Rubber Insulation Heating Wire has passed UL certificate, we can do one core, two core, three core, stranded, winding alloy wire, and all are insulated by silicone rubber insualtion .
The structure is optional.
Usually, the diameter from 1mm to 5mm
Voltage:

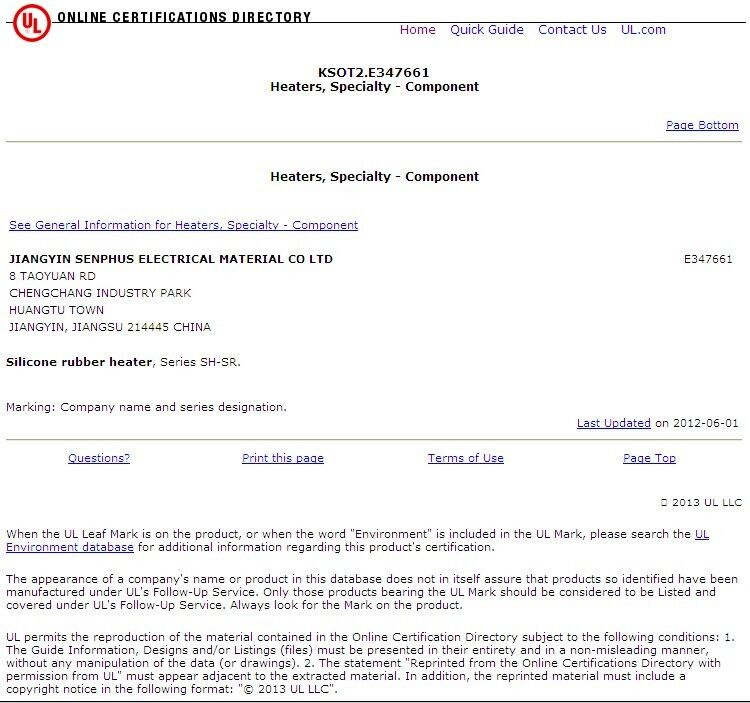

UL certificate Number:
UL3590 /UL3081 /UL3066 /UL3589 /UL3219 /UL3342/UL3077

Technique Data

item		property	descripe
Silicone insulation	Tensile strength	≥5Mpa	UL1581
	Elongation	≥ 100%
	The miminum thickness	≥ 0.4mm	UL758
wire	Heat and shape changing test	≤ 30%	232ºC * 1 h
	spark test	No breakdown	3.0KV/0.15sec;
	resistance	+10%/-5%
Resistance value range		1--10000 ohm/m
Total out diameter		2.5+/-0.15mm
Packing length		500m/rolls

Parts of Size

Voltage	Watt	Length
V	W	M
220-240/110	15	3
220-240/110	15	3.5
220-240/110	15	4
220-240/110	25	3.5
220-240/110	25	4.3or4.5
220-240/110	50	6
220-240/110	50	7
220-240/110	80	9
220-240/110	100	12
220-240/110	110	15
220-240/110	250	20

Application:
This product have insulativity, flexibility and thermal conductivity. It is widely used in Defrost frozen machine, Health preservation, anti-freeze, heating, such as: electric heating blankets, Electrothermal cushion, pet mat, jade mattress etc

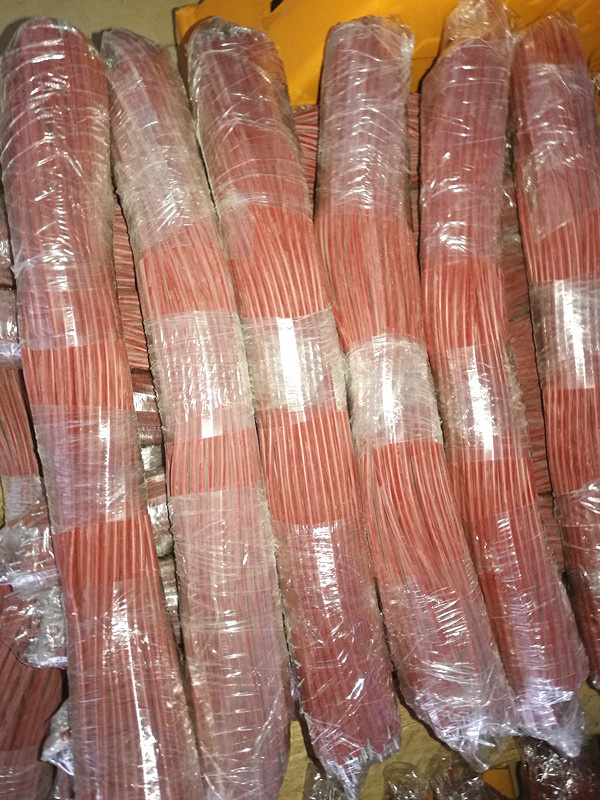

Packing
1. neutral carton 30*30*50cm, 3000m/carton
2. with spool and plastic bag
4. wooden case or pallets
The lead time
1. 100,000 meters per day

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
