| Prod Model: |
SR-80025 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Optional, Rectangle Size Usually |
| Thickness: |
1.5mm |
| Usage: |
Heat |
| Operating Principle: |
Alloy Wire Heat |
| Brand: |
Senphus |
Product Description

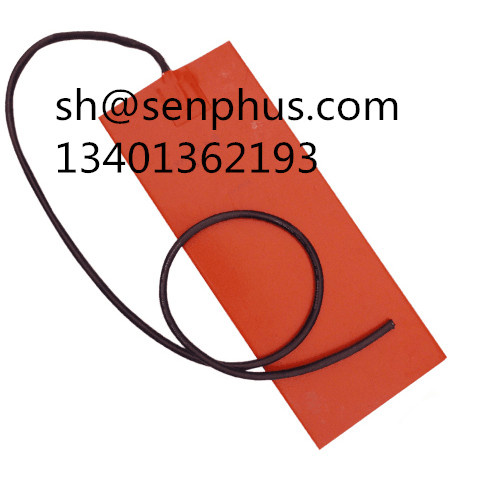

Flexible Silicone Rubber Heater UL certificate
Application:1.Senphus Silicone Rubber Heater can be sticked
under the bowl to heat the water till 90 degree or other temperatue.
2.Senphus Silicone Rubber Heater is used in heating,heat tracing and keeping warm pail,drum, pipeline, valve equipment etc.
3.
Senphus Silicone Rubber Heater can be wrapped on the object surface directly,and ease of assembly-disassembly.
Due to the nature of this type of heater this product is normally custom made. So please contact us with your requirements. For more details see Silicone Heaters instuctions. Our lead times are typically 1 to 2 weeks from receipt of order.Senphus Flexible silicone rubber heater UL certificate
Senphus Flexible Silicone Rubber Heater UL certificate The Flexible silicone rubber heater due to their small thickness can be easily fitted to different kind of metal surfaces and guarantee a fast and uniform heat transfer.
The uniform thermal distribution allows to avoid abnormal thermal expansions and to manage all the power with the maximum efficiency. The silicone insulation guarantees 200°C maximum working temperature. The high bond performance of the adhesive film allows an easy fixing on steel and plastic surfaces.
The etched foil technology allows to design the flexible element according to the requests of the customer so it is possible to customize shape, dimensions, voltage and power. For this reason the flex elements are suitable for a lot of different applications.
Here below main features of the flexible silicone rubber heater: 1.Possibility to customize shape, dimensions, voltage , power and configuration of the element;
2.Extremely thin element;
3.Uniform surface heating distribution;
4.Possibility to get different specific power on the same element;
5.Easy to fix by adhesive film;
6.Possibility to control the temperature by a temperature control on the heater like thermostat, PT100, J/K probes, thermo fuses etc;
7.Heating loss reduction;
8.Voltage range from 1 to 400V;
9.Possibility to have double voltage supply 115-230V on the same element;
Senphus Flexible Silicone Rubber Heater Technique Data| Name | Model | Power(W) | Length(cm) | Width(cm) | Voltage(v) | Power line |
| Silicon Heater | SHSR-54 | 54 | 33.5 | 13 | 220 | 1.2m |
| Silicon Heater | SHSR-46 | 46 | 20 | 13 | 220 | 1.2m |
| Silicon Heater | SHSR-30 | 30 | 19 | 13 | 220 | 1.2m |
| Silicon Heater | SHSR-26 | 26 | 38 | 20 | 220 | 1.2m |
| Silicon Heater | SHSR-20 | 20 | 33.5 | 13 | 220 | 1.2m |
| Silicon Heater | SHSR-18 | 18 | 20 | 13 | 220 | 1.2m |
| Silicon Heater | SHSR-16 | 16 | 19 | 13 | 220 | 1.2m |
| Silicon Heater | SHSR-15 | 15 | 38 | 20 | 220 | 1.2m |
Other Size of Senphus Flexible silicone rubber heater are optional.
Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

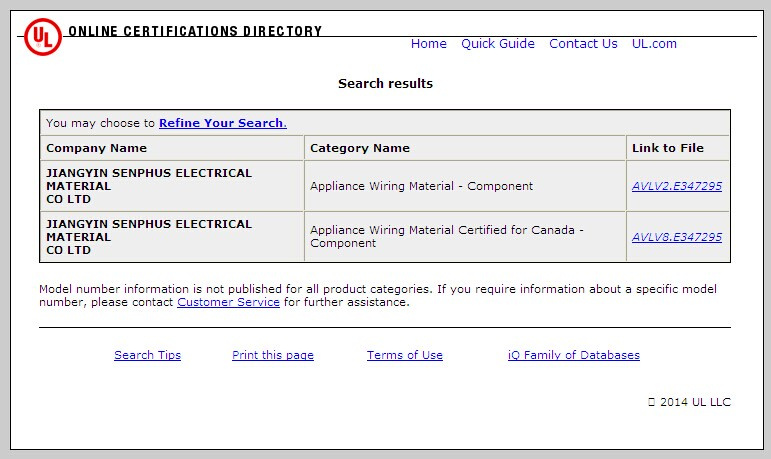

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.
Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.
Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.
Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!
OEM is welcome! !
