Electric Heating Wire of UL Approved

Name: Electric Heating Wire of UL Approved
Brand: all-electronics-online.com
SKU: 758861825
Availability: InStock
Rating: 4.4 (122 reviews)

Price:	US $ 0.5-2.5/Piece
Trade Terms:	FOB,others
Min Order:	10/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	pvc-15, FEP 20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Diameter:	1 Mm to 3mm
Color:	White

Product Description

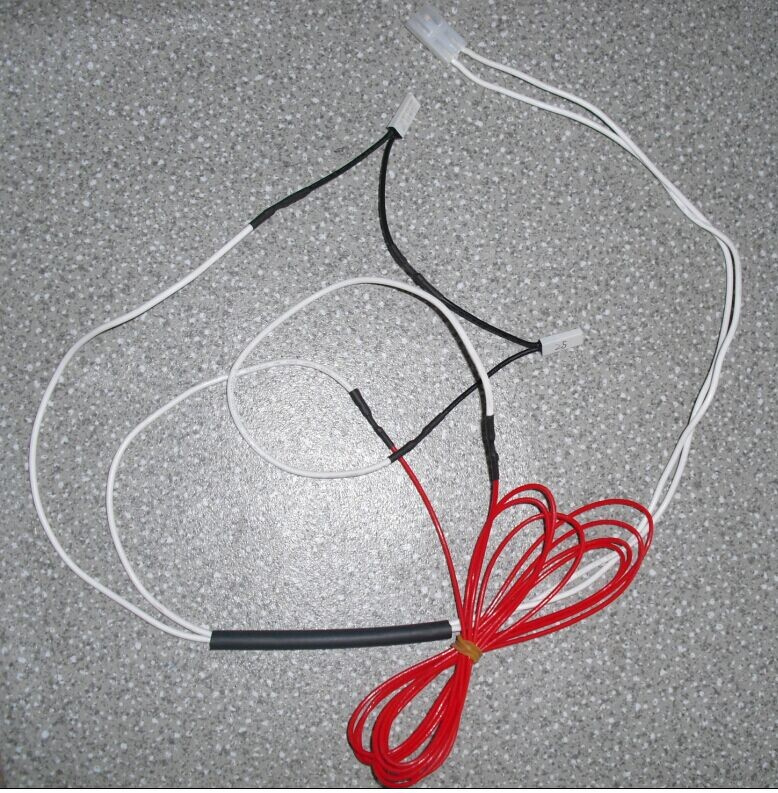

Electric Heating Wire of UL approved

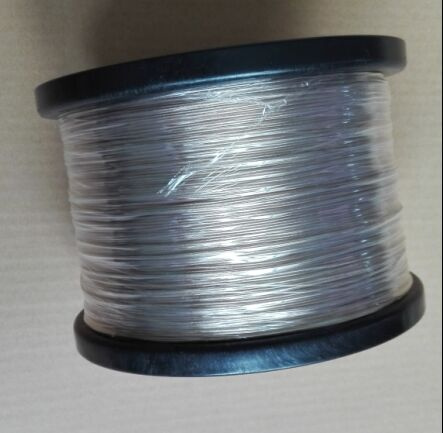

Electric heating wire include coated heating wire and resistance wire.

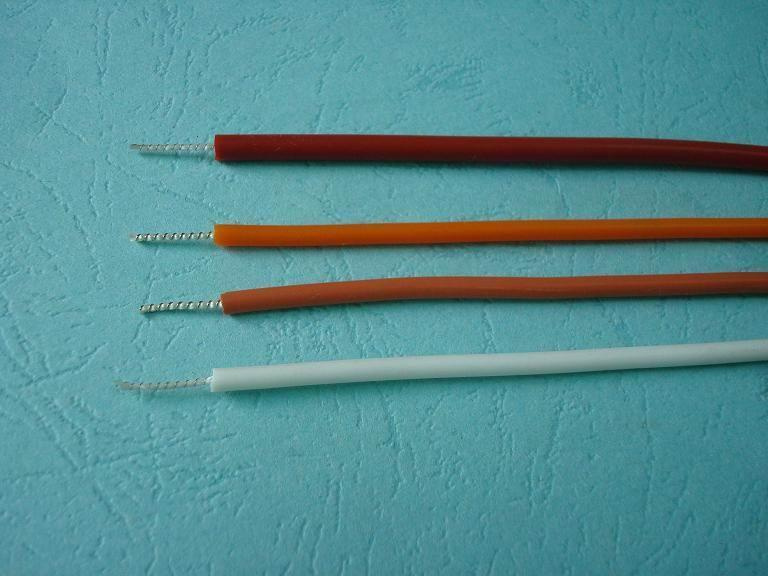

Senphus Electric Heating Wire mainly include FEP heating wire, PVC heating wire, Silicone heating wire nylon heating wire and alloy resistance wire(nicr,copper nickel etc).
The diameter are customized.
The advantages of Senphus Electric Heating Wire
1. Senphus has it own alloy wire factory and can lower the produce cost and save the lead time.
2.Senphus has 10 sets of product line and can produce 500,000 meters per day.
3.We have UL, CE ,SAA certificate.

Voltage	Watt	Length
V	W	M
220-240/110	15	3
220-240/110	15	3.5
220-240/110	15	4
220-240/110	25	3.5
220-240/110	25	4.3or4.5
220-240/110	50	6
220-240/110	50	7
220-240/110	80	9
220-240/110	100	12
220-240/110	110	15
220-240/110	250	20

Apply:
Refrigeratory, air-conditioner, electric cooker, defrost, electric blanket, electric oven, teapot, flowerpot, anti-icing, etc

Structure&test
1. Core: Glass fiber or polyester fiber
2. Heating thread: Constantan, nickel-chromium, iron chromium, copper nickel
3. Insulator: Silicon rubber of different thickness
5. Bend test: 5000 times (according to UL/IEC standard)
5. Circumnutating test: 250000 times ( according to UL/ IEC standard)

The lead time
1. 2 days for 100,000 meters
2. 10 days for 1000,000 meters

Payment Term
1. for the first cooperation, 30% in advance, 70% before shipment

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
