Silicone Rubber Heating Heater of UL Approved

Name: Silicone Rubber Heating Heater of UL Approved
Brand: all-electronics-online.com
SKU: 801969335
Availability: InStock
Rating: 4.4 (86 reviews)

Price:	US $ 150-170/Square Meter
Min Order:	1/Square Meter
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SR-8966
Thickness:	1.5mm
Certificate:	UL
Usage:	Heat
Control Type:	Thermostat
Operating Principle:	Power Conduct Heat
Brand:	Senphus

Product Description

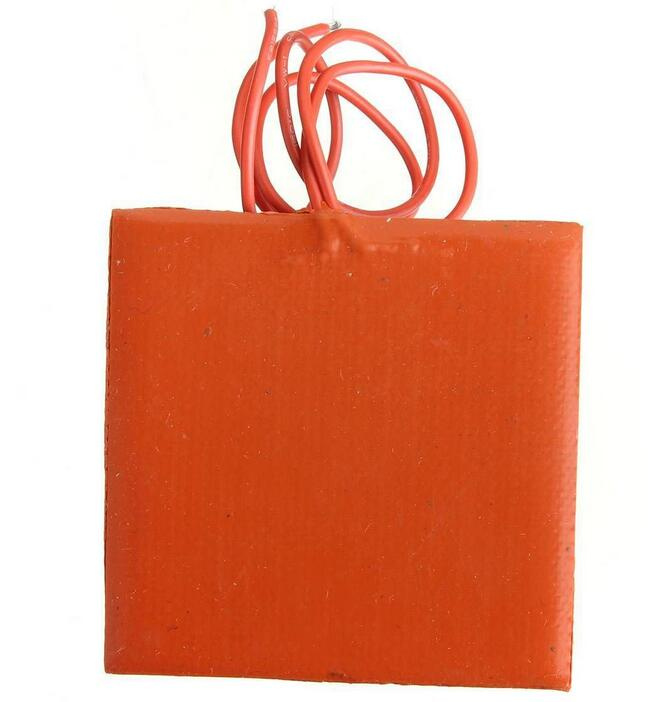

Silicone Rubber Heating Heater of UL Approved
Senphus Silicone Rubber Heating Heater of UL are Made of silicone rubber, rectangle shape, easily bonded and mechanically mounted to heat sink. Which has advantages of thinness, lightness and flexibility. It can improve heat transfer, accelerate warming and decrease power under the process of operation. Fiberglass reinforced silicone stabilize the dimension of the heater.
Feature and Use
1.Simply sticking to your components through sulfuration or fixer to install.
2.The working temperature should be less than 200C, the instantaneous temperature does not exceed 300C.
3.When the temperature in workspace does not exceed 200C, the power density can up to 1.2W/cm2
4.In the type of paste installation conditions, allow the working temperature less than 150C.
5.Freezing protection and anti-pressure, can be used in all kinds of instruments and equipments.
6.Applianced in the hospital equipments, such as: blood analyzer, test pipe heater, etc.
7.The auxiliary equipments of computer, such as: lacer printer, etc.

Silicone Rubber Heating Pad of UL Specification

Name	Model	Power(W)	Length(Inch)	Width(Inch)	Length(cm)	Width(cm)	Square cm2
Silicon Heater	SHSR-710	710	20	12	50.8	30.5	1548.4
Silicon Heater	SHSR-760	760	16	16	40.6	40.6	1651.6
Silicon Heater	SHSR-1400	1400	25	19	63.5	48.3	3064.5
Silicon Heater	SHSR-2000	2000	26	26	66.0	66.0	4361.3
Silicon Heater	SHSR-1350	1350	30	15	76.2	38.1	2903.2
Silicon Heater	SHSR-3400	3400	48	24	121.9	61.0	7432.2
Silicon Heater	SHSR-5550	5550	85	22	215.9	55.9	12064.5

Why buy from us?
Fast shipping
Great feedback
14+ Years of eBay experience
Professional "overpacking" to protect your items during shipment
Lots of large clear photos to show true condition
Detailed descriptions with my description guarantee.
Unique quality products, not untested "surplus" or scrap

Jiangyin Senphus Electrical Material Co., Ltd is a new Hi-tech enterprise of heating alloy, heating cable/mat, heating wire, silicone rubber heater, drum silicone rubber heater, thermostat, which is engaging in R&D, manufacture and sale.

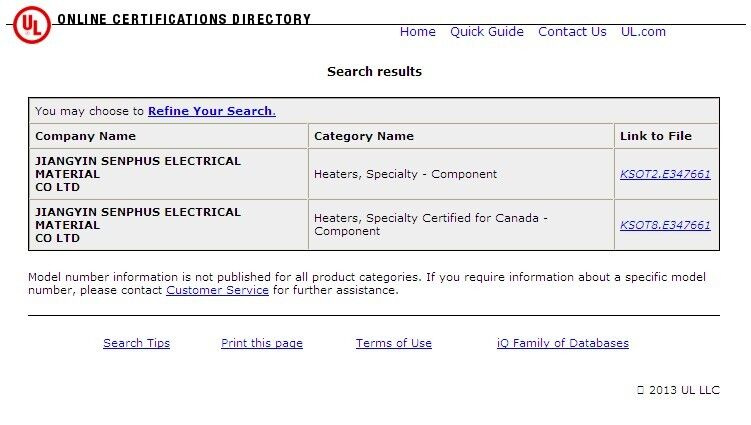

We have our own alloy smelting factory, possessing first-class production and advanced research facilities, so that we guarantee the top quality of our products. We have already passed ISO9001 quality management system and achieved the examination report of National Center for quality Supervision & Test of Electric Wire & Cable, and gained the European Union CE certification, UL certificate, GS Certificate, electromagnetic radiation certification, SGS and REACH certification.

Heating cable/wire and temperature controller system are widely used in wind power blades, construction heating, pipeline heating, outdoor snow melting, soil heating field and so on. Silicone rubber heater are widely used in electrical household appliance, spaceflight, petroleum, metallurgy, military project, chemical, electric power, medical appliance, mechanism, outdoor communication, automobile, etc. Industry.

Our products have been exported to America and Europe, Africa, Southeast Asia, like USA, Canada, England, France, Holand, Poland, Peru, South Africa, Italy, Greece, Thailand, India, Hongkong, etc. More than thirty countries and areas.

Our company always persist in"reputation first, quality high and customers supreme" management ideal. We will use great products, competitive price, professional service to cooperate with you and gain win-win!

OEM is welcome! !
