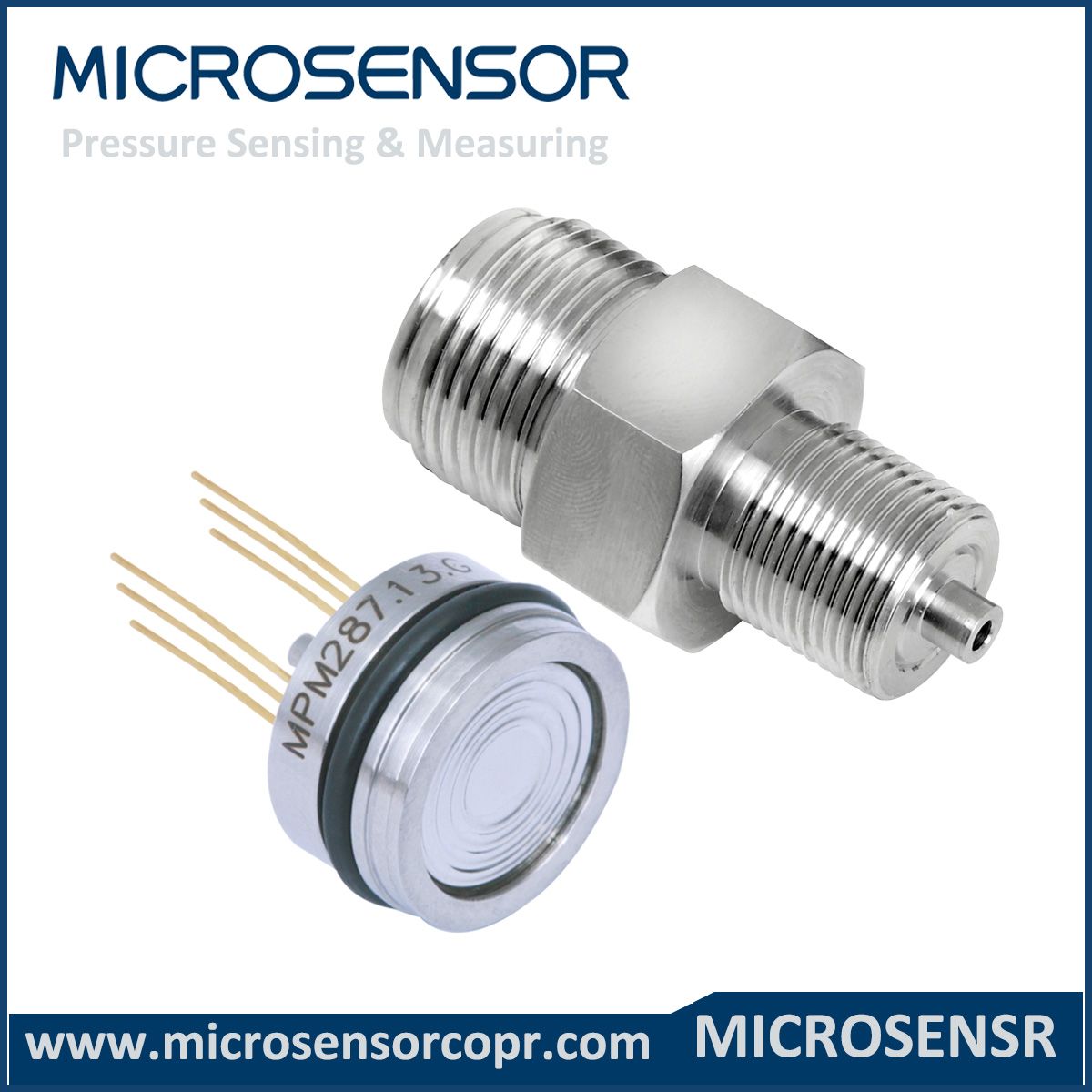

17mm Cost-Efficient Pressure Sensor for Gas Mpm287

Prod Model:	MPM287
Pressure Range:	0kpa~100kpa...3.5MPa
Pressure Type:	Gauge/ Absolute / Sealed Gauge
Total Accuracy:	0.075%Fs
Diaphragm:	Ss316L
Diameter:	19mm
Over Pressure:	1.5 Times Fs
Protection:	IP65
Storage Temp:	-40-125c
Working Temp:	-40-125c
Compansated Temp.:	0-70c

Product Description

                         17mm Cost-efficient Pressure Sensor for Gas Mpm287

Features:
1. Full Stainless Steel;
2.19mm;
3.Compact size;
4. Cost-effective;
5.Isolated Construction

Application:
1. Industrial process control         2 .Level measurement         3.Gas, liquid pressure measurement
4.Pressure checking meter          5 .Pressure calibrator          6.Liquid pressure system and switch
7.Cooling equipment and air conditioning system             8.Aviation and navigation inspection


Electric Performance
Power supply: ≤2.0mA DC
Electric connection: Kovar pin / 100mm silicone rubber flexible wire
Common mode voltage output: 50% of input (typ.)
Input impedance: 2.5kΩ~5kΩ
Output impedance: 3.5kΩ~6kΩ
Response (10%~90%):<1ms
Insulation resistor: 100MΩ, 100V DC
Overpressure: 1.5 times FS

Construction Performance
Diaphragm: stainless steel 316L
Housing: stainless steel 316L
Pin: Kovar
O-ring: Viton
Net weight: ~11g

Environment Condition
Position: deviate 90°from any direction, zero change ≤±0.05%FS
Shock: no change at 10gRMS, (20~2000)Hz
Impact: 100g, 11ms
Media compatibility: the gas or liquid which is compatible with construction material and Viton

Basic Condition
Media temperature: (35±1)ºC
Environment temperature: (35±1)ºC
Shock: 0.1g (1m/s2 )Max
Humidity: (50%±10%)RH
Local air pressure:(86~106)kPa
Power supply: (1.5±0.0015)m ADC

Order Guide:

MPM287

Pressure Sensor

c

Pressure range

Ref.

Range code

Pressure range

Ref.

03

0kPa~100kPa

G.A

10

0kPa~1000kPa

G.A

07

0kPa~200kPa

G.A

12

0MPa~2MPa

G.A

08

0kPa~350kPa

G.A

13

0MPa~3.5MPa

G.S.A

09

0kPa~700kPa

G.A

Code

Pressure type

G

Gauge

A

Absolute

S

Sealed gauge

Code

Pressure connection

0

O-ring

Code

Compensation

L

Laser trimming

Code

Electric connection

1

Kovar pin

2

100mm silicone rubber flexible wire

MPM285       08       G        0        L      1       the whole spec

Order Note
1. We suggest you to use Floating construction when you install the sensor to prevent affecting sensor stability;
2. Please pay attention to protect sensor isolated diaphragm and ceramic compensated board, to avoid damaging sensor or affecting the performance;
3. Temperature resistant range of standard Viton O-ring of sensor is -20ºC ~ 250ºC. When working temperature is lower than -20ºC, or sensor is applied in critical environment, please contact us.
