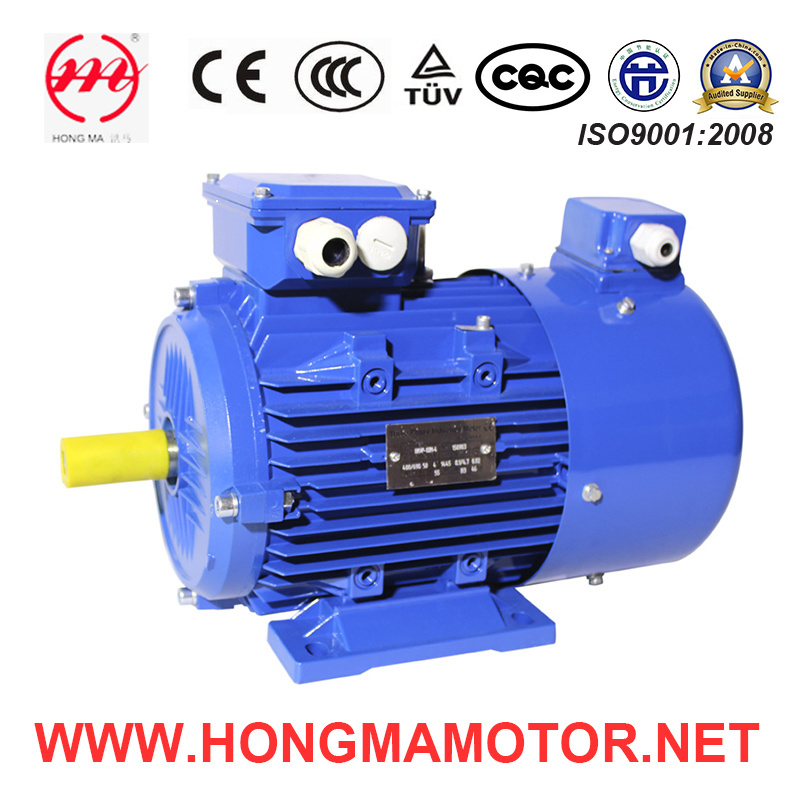

0.18~18.5kw Aluminum Frequency Variable Electric Induction Motor
| Price: |
US $ 30-6500/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
HMAVP/YVP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame Size Range: |
H80-160 |
| Rated Power Range: |
0.18kw--18.5kw |
| Rated Voltage: |
220/380V;380/660V |
| Cooling Method: |
IC416 |
| Frequency: |
0~100Hz |
| Protection Class: |
IP44, IP45, IP55 |
| Insulation Class: |
B/F/H |
| Speed Range: |
1:20 |
| Ambient Temperature: |
-15~+40 °c |
| Altitude: |
≤1000m |
| Application: |
Universal |
| Operating Speed: |
Adjust Speed |
| Brand: |
Hongma |
| Number Of Poles: |
2, 4, 6, 8 |
| Certification: |
CE |
Product Description
Product DescriptionHMVP (YVP)series frequency-variable & speed-regulation motor is a special asynchronous motor which used in system power supplied by transducer. It is a new special series products designed conformably in whole country .It can be suit with various types of SPWM frequency conversion equipment all over the world. It has dependent air-cooler, can assure the motor have effective cooling in different rotate speed. These series motors are widely used in engine, metallurgy, weave, printing and dyeing, chemical industrial, mine and so on, as well as the fan, pump adjust condition.
HMVP series motors are of energy saving, wide range of speed-regulation, low noise, small vibration and characteristic of low-speed constant torque output, high-speed constant power output. Its mounting dimension and power totally conform to IEC standard of better Versatility and interchangeability.
Technical Data(pole 4)| Frame No. | Standard | Rated | Frequency | Frequency | Noise | Vibration |
| KW | N.m | HZ | HZ | Db | mm/s |
|
|
|
|
5-50
|
50-100
|
|
1.8
|
| HMAVP | 80M1 | 0.55 | 3.5 | 79 |
| HMAVP | 80M2 | 0.75 | 4.7 | 79 |
| HMAVP | 90S | 1.1 | 7 | 79 |
| HMAVP | 90L | 1.5 | 9.5 | 83 |
| HMAVP | 100M | 2.2 | 14 | 83 |
| HMAVP | 100L | 3 | 19 | 87 |
| HMAVP | 112M | 4 | 25.4 | 87 |
| HMAVP | 132S | 5.5 | 35 | 91 |
| HMAVP | 132M | 7.5 | 47.7 | 91 |
| HMAVP | 160M | 11 | 70 | 93 | 2.8 |
| HMAVP | 160L | 15 | 95.4 | 93 | 2.8 |

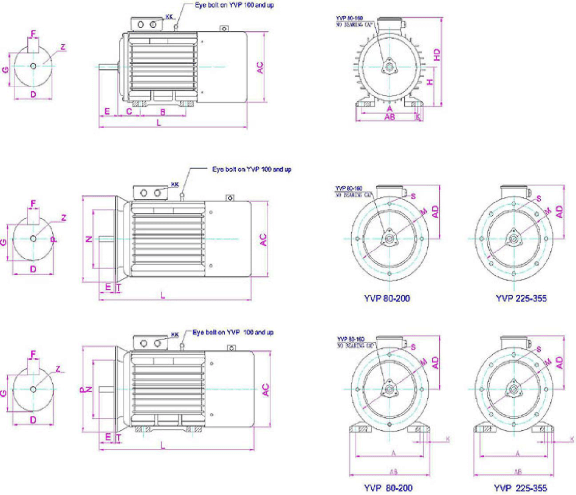

Installation Method & Dimensions
| TYPE |
|
|
|
|
|
|
| Mounting Dimensions |
|
|
|
|
|
| Overall Dimensions |
| A | B | C | D | E | F | G | H | K | Z | KK | M | N | S | P | T | AB | AC | AD | L |
|
| HMAVP80M | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | M6×16 | 1-M25×1.5 | 165 | 130 | 12 | 200 | 3.5 | 154 | 157 | 127 | 355 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 1-M25×1.5 | 165 | 130 | 12 | 200 | 3.5 | 174 | 175 | 132 | 400 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | M8×19 | 1-M25×1.5 | 165 | 130 | 12 | 200 | 3.5 | 174 | 175 | 132 | 430 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | M10×22 | 1-M25×1.5 | 215 | 180 | 15 | 250 | 4 | 194 | 196 | 145 | 465 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | M12×28 | 2-M32×1.5 | 215 | 180 | 15 | 250 | 4 | 224 | 220 | 158 | 490 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP132S | 216 | 140 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M32×1.5 | 265 | 230 | 15 | 300 | 4 | 248 | 265 | 340 | 525 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP132M | 216 | 178 | 89 | 38 | 80 | 10 | 33.3 | 132 | 12 | M12×28 | 2-M32×1.5 | 265 | 230 | 15 | 300 | 4 | 248 | 265 | 340 | 575 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 300 | 250 | 19 | 350 | 5 | 315 | 330 | 420 | 645 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| HMAVP160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | M12×28 | 2-M40×1.5 | 300 | 250 | 19 | 350 | 5 | 315 | 330 | 420 | 690 |
Package
Frame NO. 80--132 :Package by carton box and then packed by wooden box
Frame NO.160 and above:one wooden box per set
Our Certificate

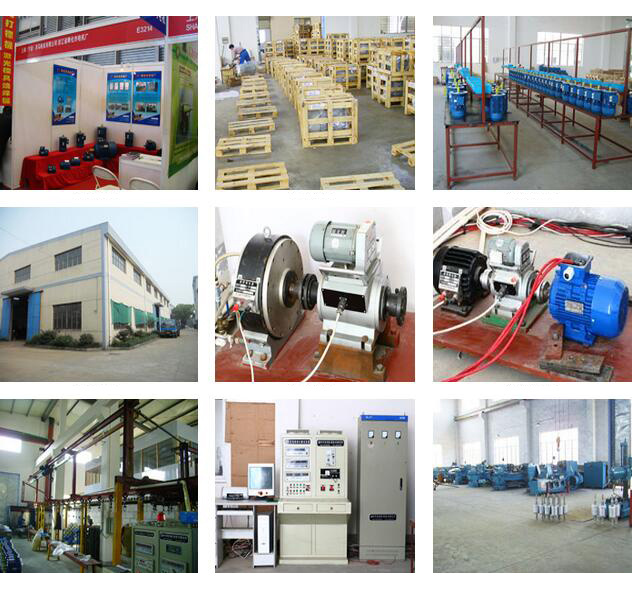

Our Factory
